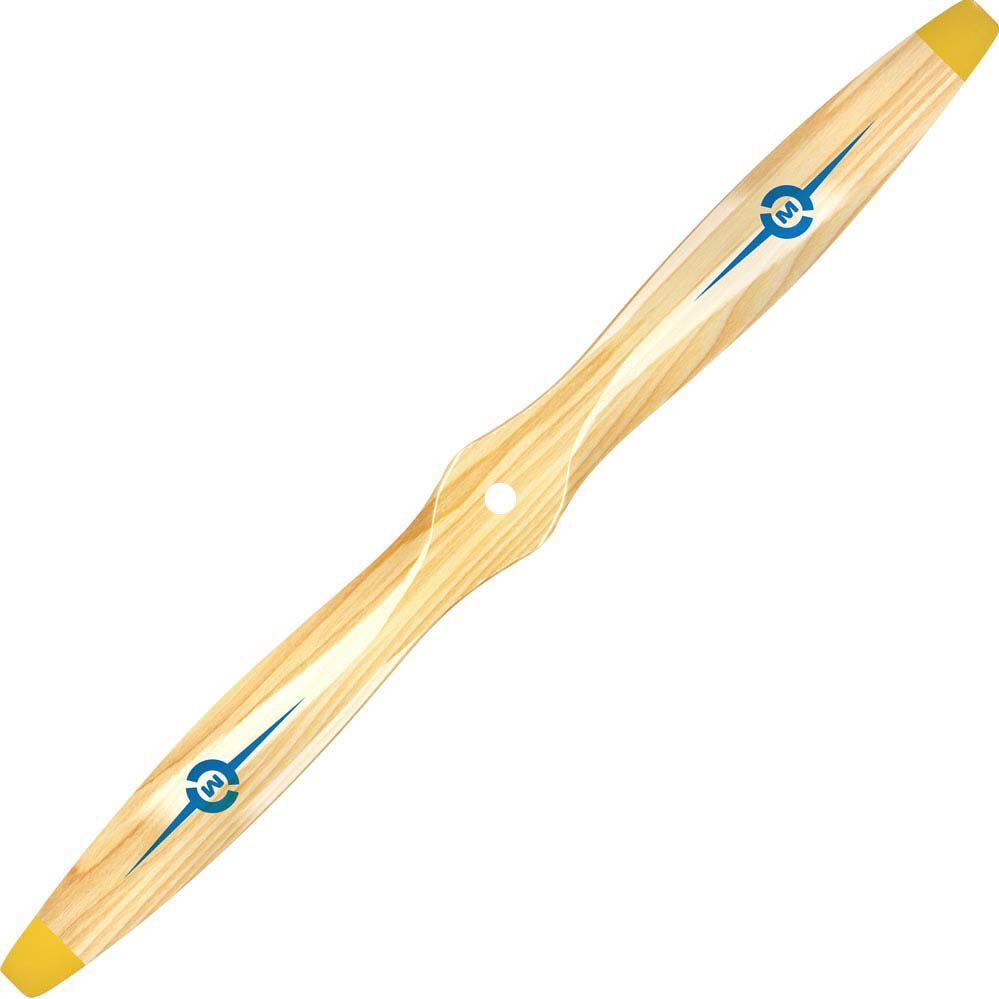

Master Airscrew Wood-Maple 22x10 Propeller

This is a Master Airscrew Wood Props are made from Lightweight,
Kiln-Dried Beechwood. Props with Larger Diameters Greater
than 16 inches, are Made from Heavier Maple.

FEATURES:
All Wood Props, function traditional Squared Tips and Ample Airfoil
    Sections.
The Most current in Engineering Technology used for this Updated Design.
Lower Noise and Precise Balance
Readily available in a Wide Array of Sizes to Suit Every Application.
Propeller is absolutely fuel-proof.

INCLUDES:
One 22x10 Wood Prop

SPECIFICATIONS:
Center Hole Diameter: 3/16" approx.
Propeller Diameter: 22"
Prop Pitch: 10"

REQUIRES:
Depending upon the engine crankshaft size, the prop may need to
    be reamed to a larger size utilizing GPMQ5005 (SAE) or
    GPMQ5007 (Metric).

REMARKS:
Four-stroke engines are normally higher torque engines and ought to
    utilize the larger props showed in the range.
Recommended prop ranges will differ depending on your specific engine
    and airplane.
The Chart listed below represents average prop usage and ought to be used as
    Only a General Guideline. Always describe the producer's
    instructions included with your engine.
Engine Size 2-Stroke 4-Stroke
.049-.051 5.5x4, 5.5x4.5, 6x3, 6x3.5, 6x4 N/A
.09 -.10 7x4, 7x5, 7x6 N/A
.15 7x6, 8x4, 8x5, 8x6, 8x7 N/A
.20 -.25 8x6, 8x7, 9x4, 9x5 9x4, 9x5, 9x6, 9x7
.29 -.35 9x6, 9x7, 9x8, 9.5x6, 10x4, 10x5, 10x6 N/A
.40 9.5x6, 10x4, 10x5, 10x6, 10x8, 10x9 11x6,12x6
.45 -.50 10x8, 10x9, 11x4, 11x5, 11x6, 11x7, 11x7.5 N/A
.60 11x5, 11x6, 11x7, 11x7.5, 11x8, 11x9 11x8,11x9,12x6,13x6
.71 -.80 12x6, 12x8, 13x6, 13x8, 13x10, 14x8 N/A
.90 13x6, 13x8, 13x10, 14x6, 14x8 11x9,12x8,14x6
1.08 14x8, 14x10, 15x8, 16x6 N/A
1.20 14x8, 15x8, 16x6 14x8,15x8,15x10,16x8
1.5 16x8, 16x10, 18x6, 18x8 N/A
1.8 18x8, 18x10, 20x6, 20x8 N/A
2.1 20x8, 20x10 N/A
2.7 -3.0 22x8, 22x10, 22x12, 24x8, 24x10, 24x12 N/A
