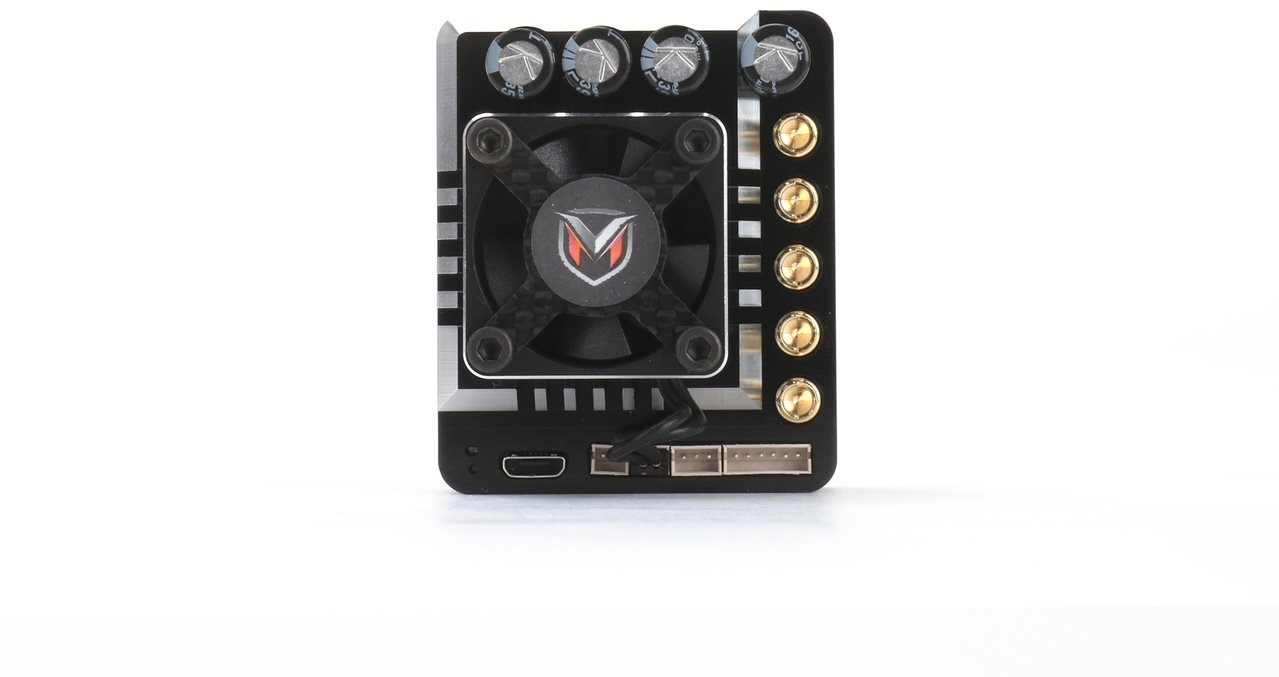

Maclan Racing M32e Pro 200 1/8 Competition Esc

The M32e Pro 200 Competition 1/8th ESC was designed and built with one goal in mind: winning competitions.

It is purpose-built for the 1/8th scale eBuggy and eTruggy applications with updated internal elements. The operating temperature level is lower than its predecessor. With silicon finishing on the circuit boards, the M32e also offers better durability for the 1/8th scale competition environment.

Note: This ESC was not designed or intended for drag race applications. It will not be covered by the factory guarantee if used for drag racing.

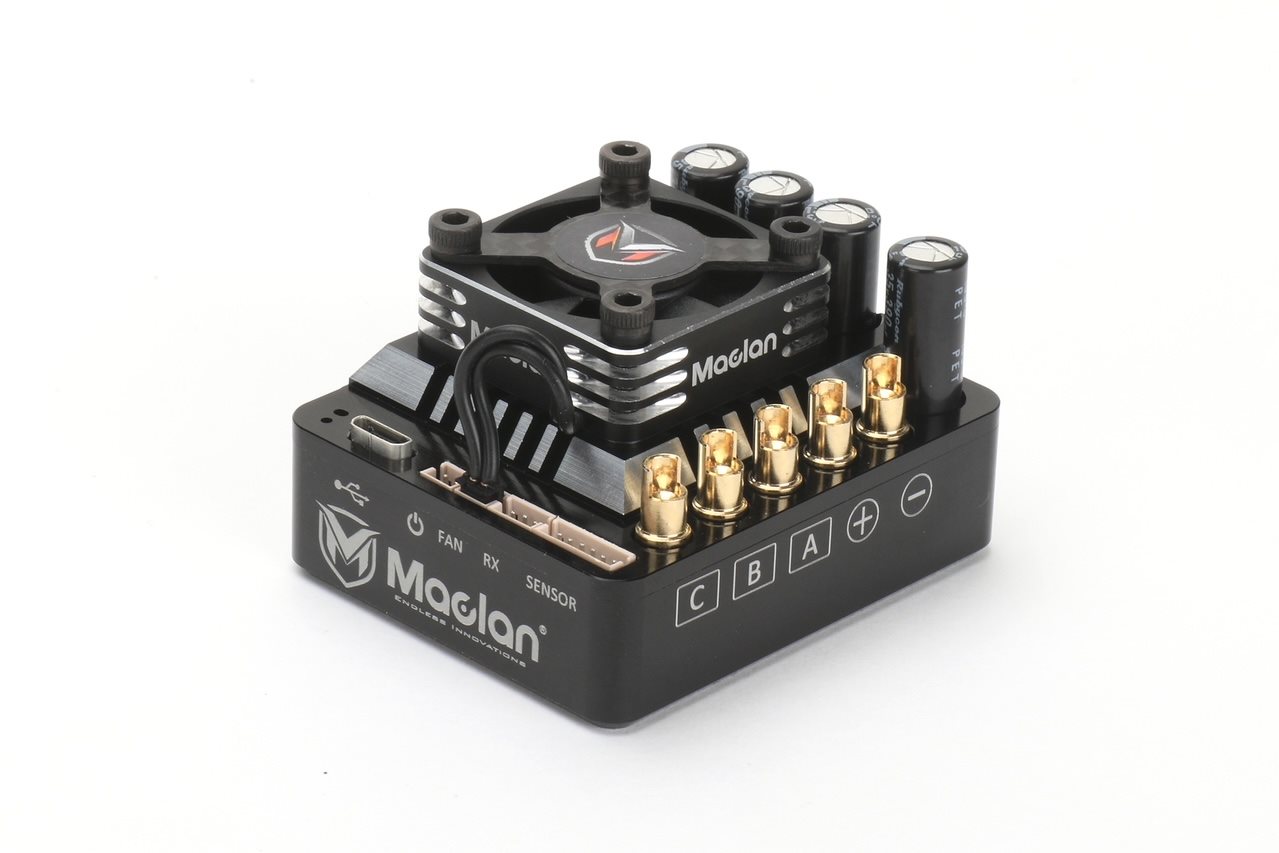

The M32e Pro 200 Competition 1/8th ESC uses a complete aluminum case that ensures maximum thermal dissipation and extreme durability. The 30mm HV turbo ESC fan offers that additional insurance to cool off the ESC in extreme ambient conditions. The super-switch-mode BEC is designed to deal with real HV for all kinds of servos from 6V to 8.4V. It offers the real power required to guide 1/8 competition RC cars.

The Maclan Racing Wireless Link (offered independently) is designed for sending information wirelessly in between Maclan Racing ESC and mobile phones (Android OS with 5.0 or later on, and iOS with 13 or later on). With Maclan Racing Smart Link App, it enables ESC shows, firmware upgrading, and viewing information logs.

M32e Pro 200 ESC Functions

Deliberately built for 1/8th scale eBuggy and eTruggy applications. (NO DRAG RACE)

Updated internal elements with Typhoon aluminum fan and carbon fiber fan guard.

Silicon layered circuit board for enhanced durability.

High-performance 32-bit PIC32 CPU for high speed and precise processing.

New generation firmware algorithms for the best nitro-like throttle feel.

On-board USB host + slave dual-mode for ease of connectivity and unlimited extensibility.

Dual 'power-on' options for the ease of operation. (can be managed by a switch or direct to the battery)

All aluminum structures with omnidirectional heatsink for maximum air flow and optimum cooling performance.

All removable connectors with numerous optional length cables.

Adjustable throttle and brake PWM frequency for fine-tuning.

Motor/ESC temperature level security and low voltage protection.

MS Windows 7/10 suitable and mobile app software application for information logging, shows, and firmware updating.

Best performance and durability with Maclan MR8.4 series motor.

Item Produced: 08/16/2021
