Features

Scaled down version of the 1/10 22

Mid Motor Setup

Elastomer Battery Strap System

Aluminum Chassis

Threaded Oil Filled Shocks

Totally assembled and ready-to-run

HRZ 2-in-1 ESC/RX

Dynamite® Brushed 280-sized 47T motor

Spektrum™ SX107 metal gear servo

Taper Pin Front and BK Bar Back Tires with Meal Wheels

Complete Ball Bearings (less steering)

Servo Saver

Waterproof electronics

22 Suspension Geometry

650mAh TWO Lipo Battery with EC2 Port and USB 0.5A Charger

Alternative Parts Availability

3 Color Options

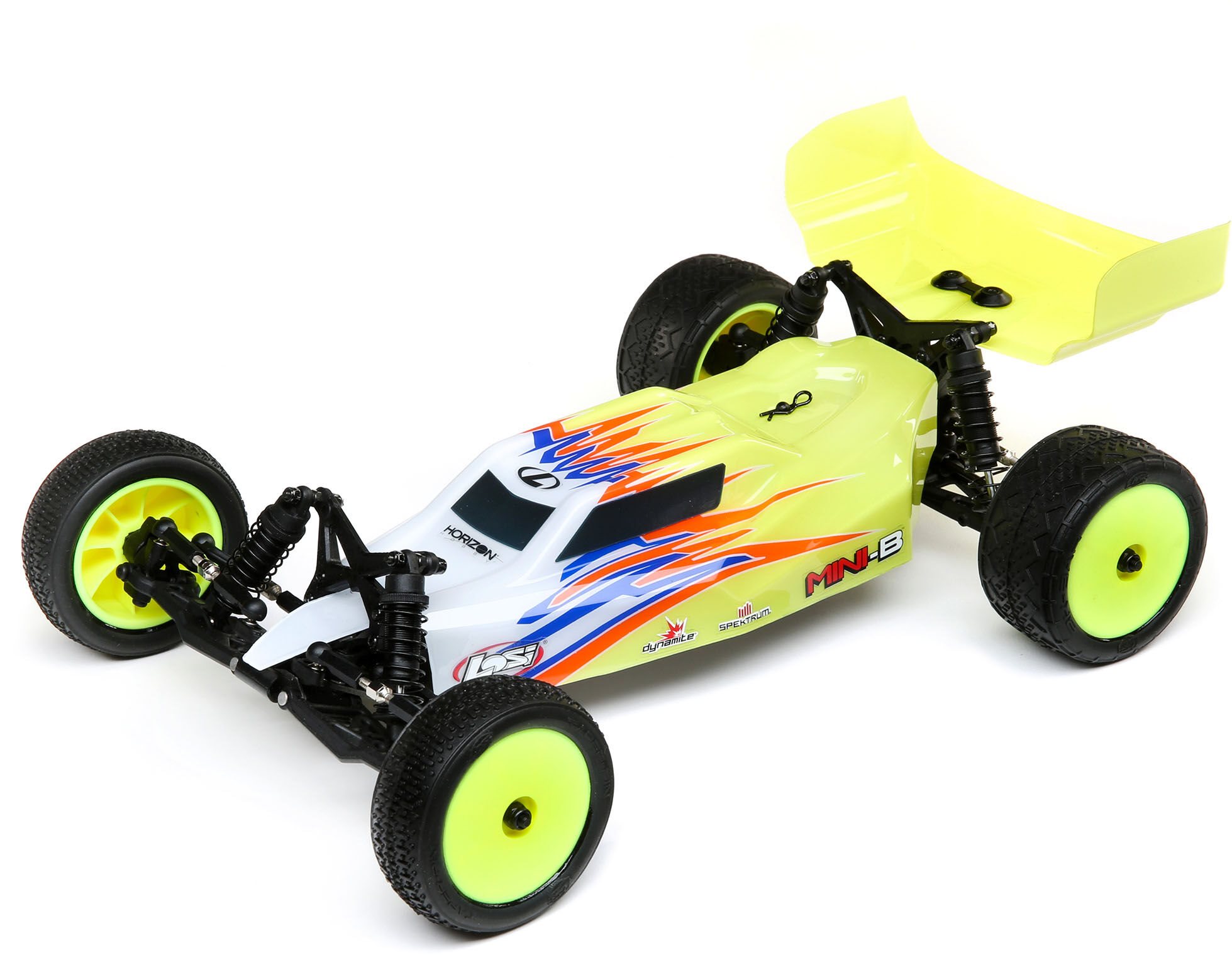

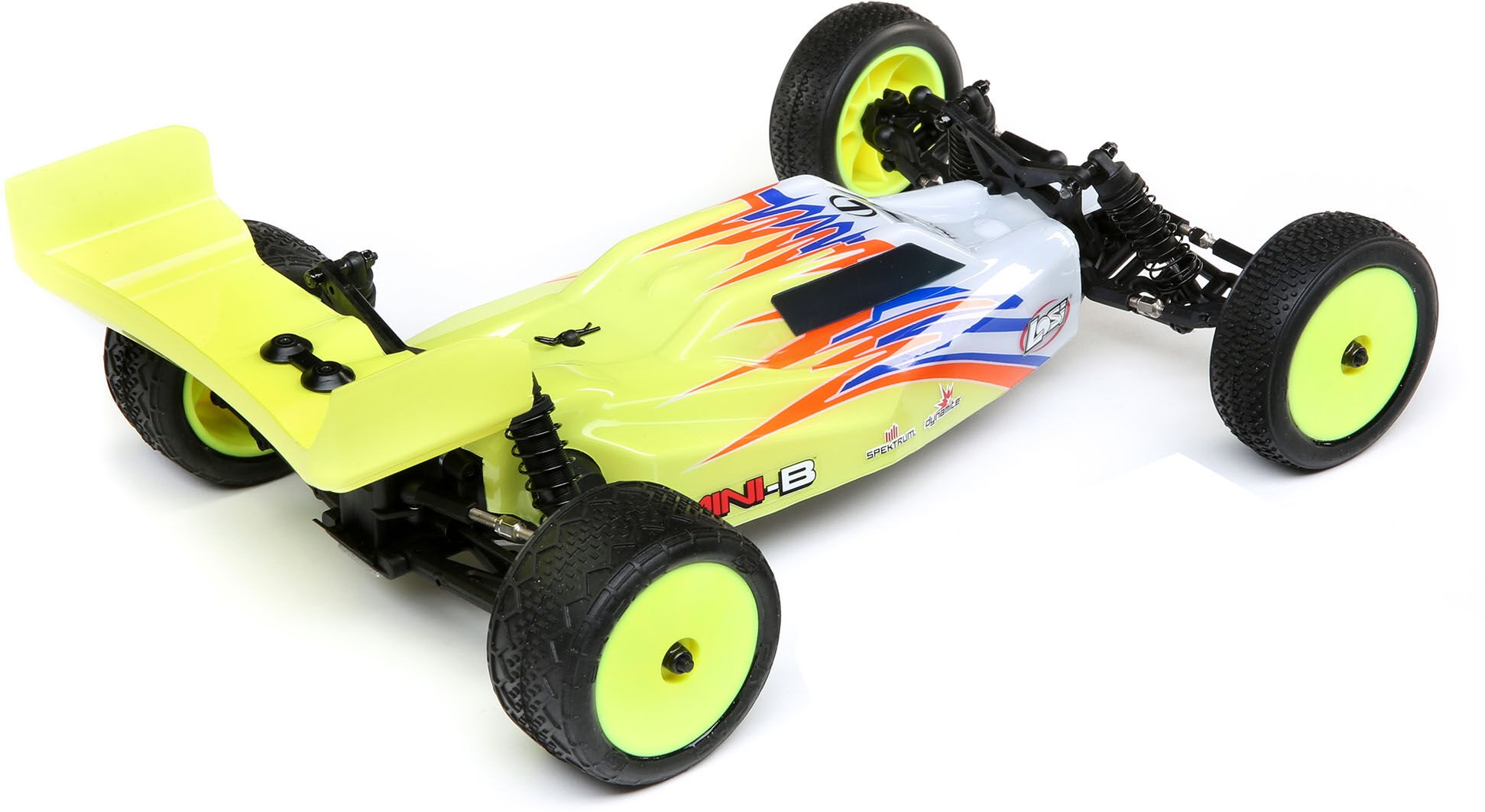

Overview
The legendary Losi® Mini's are back! Including TLR® 2wd buggy engineering and efficiency in a 1/16th plan, the Losi Mini-B Buggy is terrain-tearing and track-ready. The bigger 1/16th scale is steady on the track generating quicker speeds and enhanced handling. With suspension geometry updated and taken from the TLR® 22 platform and the inclusion of water resistant electronics with a 2.4Ghz radio system, you get more from a Mini than ever before. It features a mid-motor configuration for much better balance, oil filled shocks, and a complete series of alternative parts all in an overall ready-to-run plan. Whatever about this buggy is created to provide a jaw-dropping experience.












Scaled-Down Version
Including TLR 2WD buggy engineering and efficiency in a 1/16th plan, the Losi Mini-B Buggy is terrain-tearing and track-ready. The bigger 1/16th scale is steady on the track generating quicker speeds and enhanced handling.

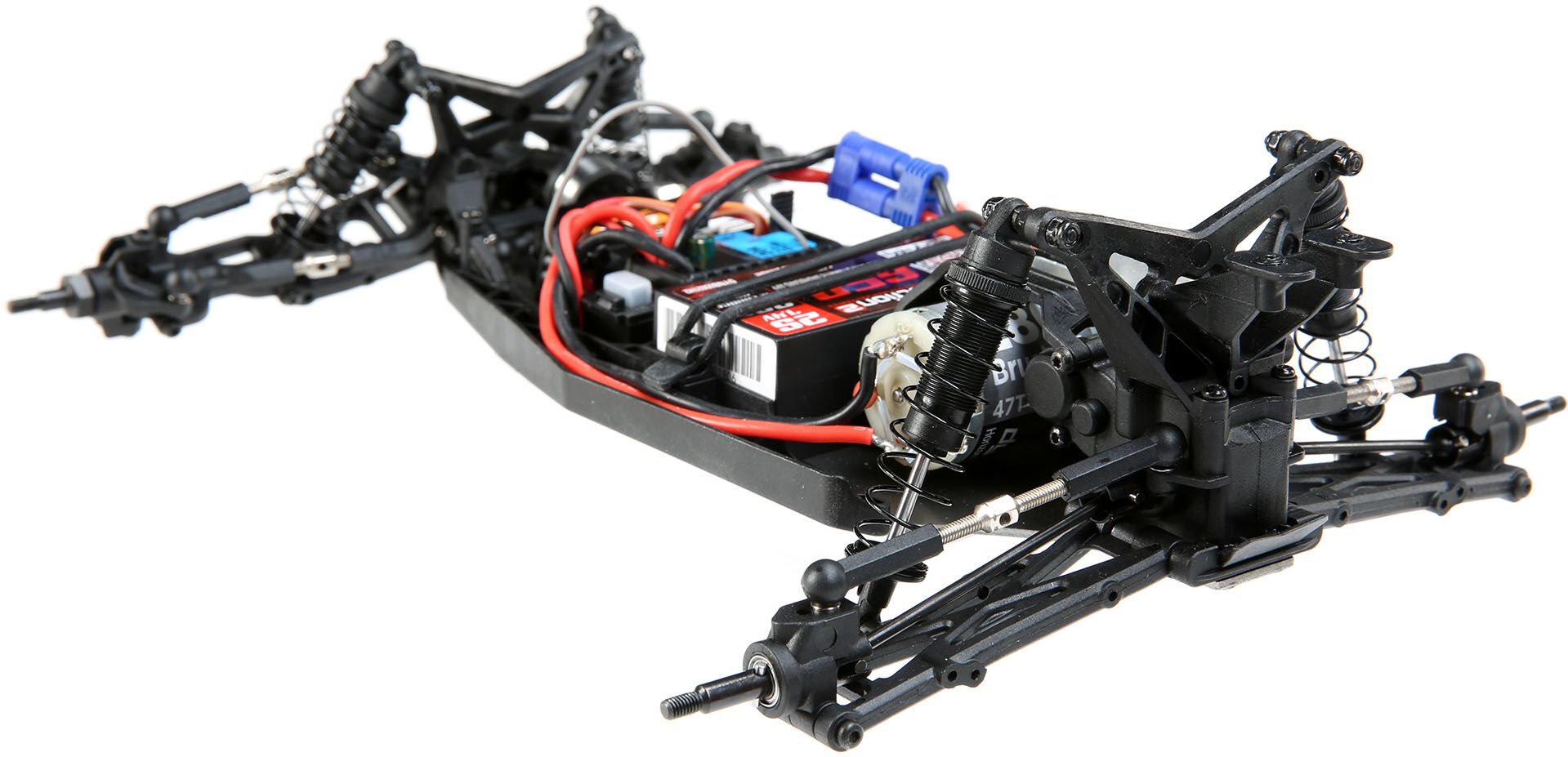

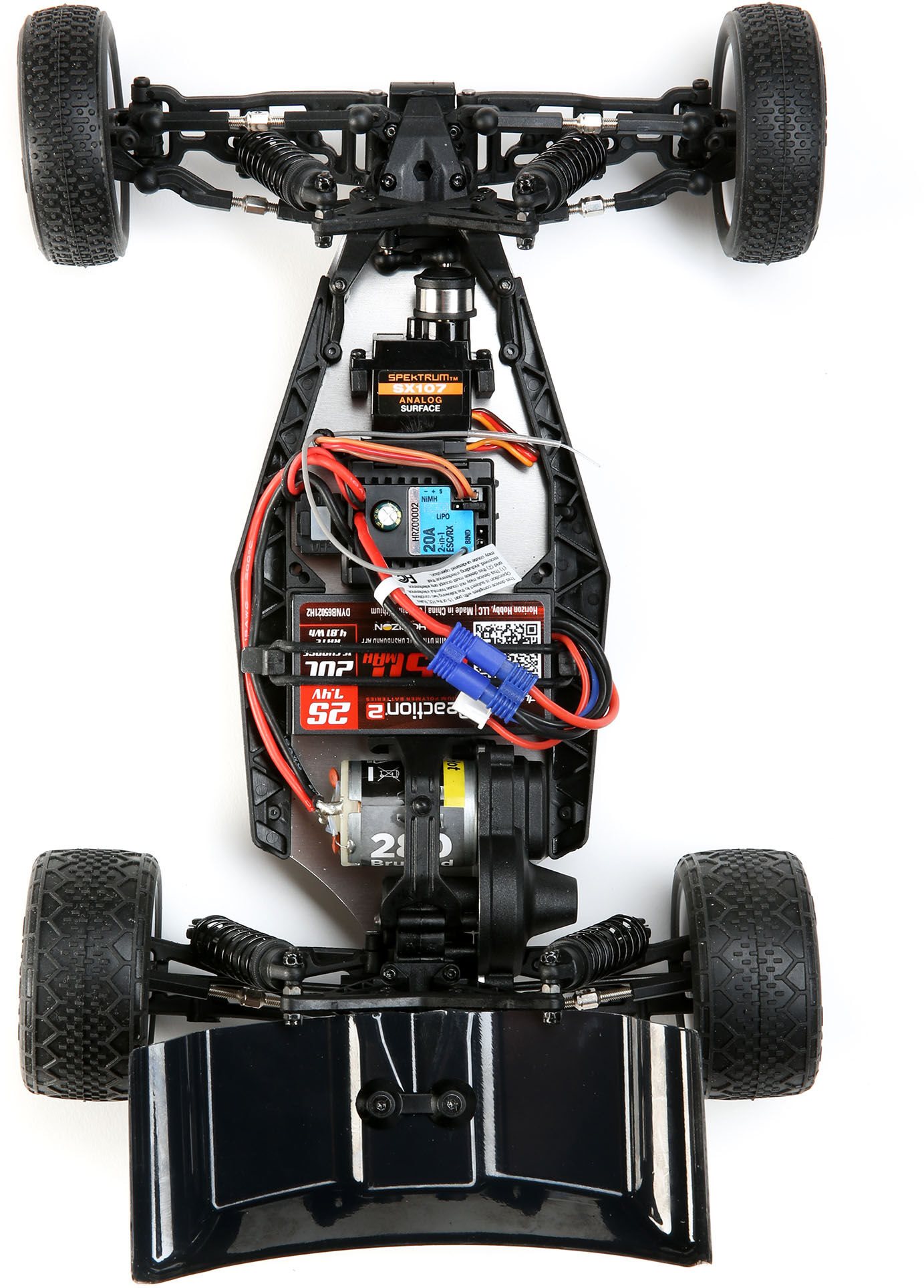

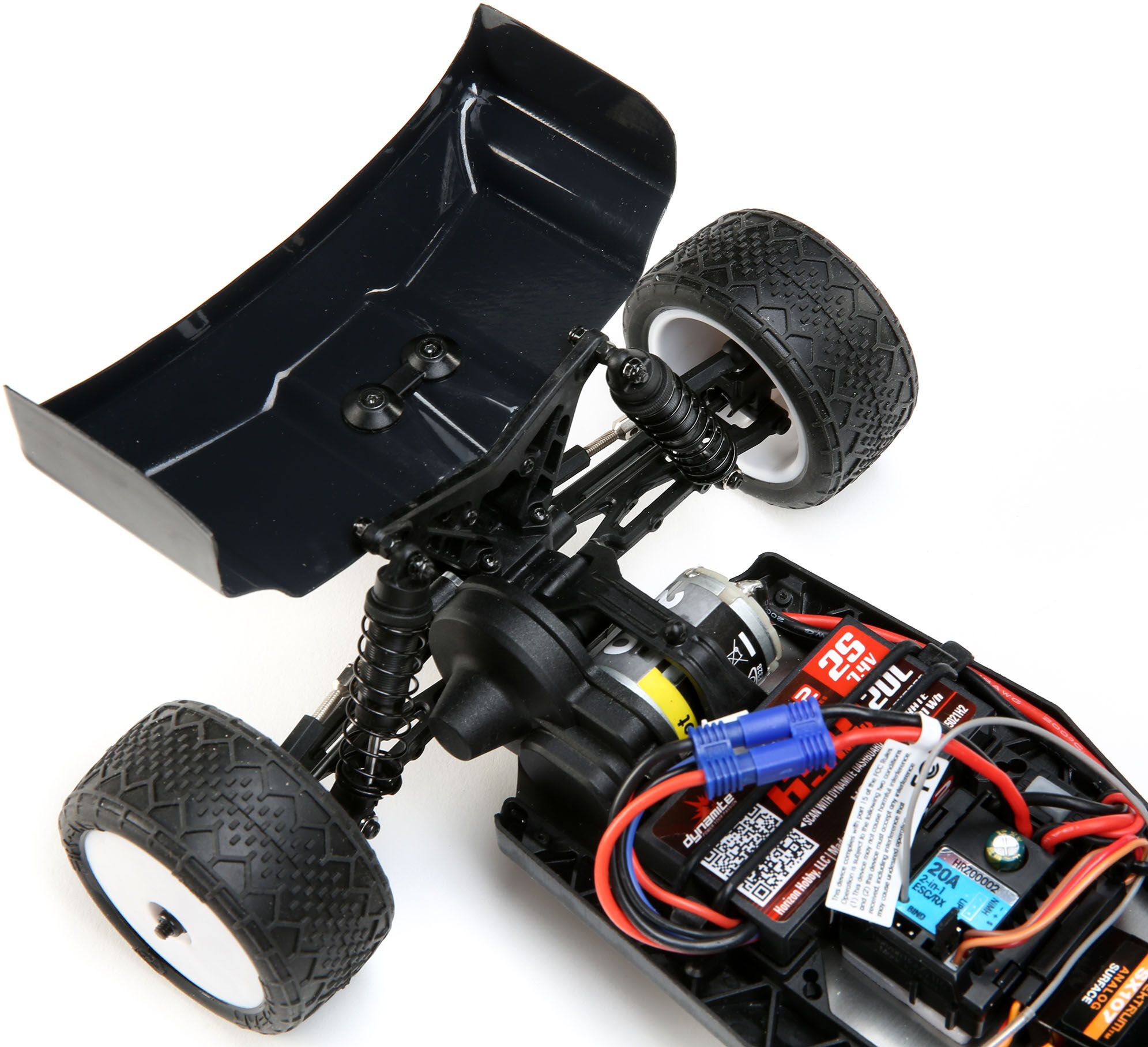

Mid Motor Configuration
The Mini-B comes requirement with a mid-motor configuration. This not only duplicates the 1/10th version however likewise supplies a much better well balanced chassis allowing for much better efficiency on several surface areas and likewise cancels steering and traction.

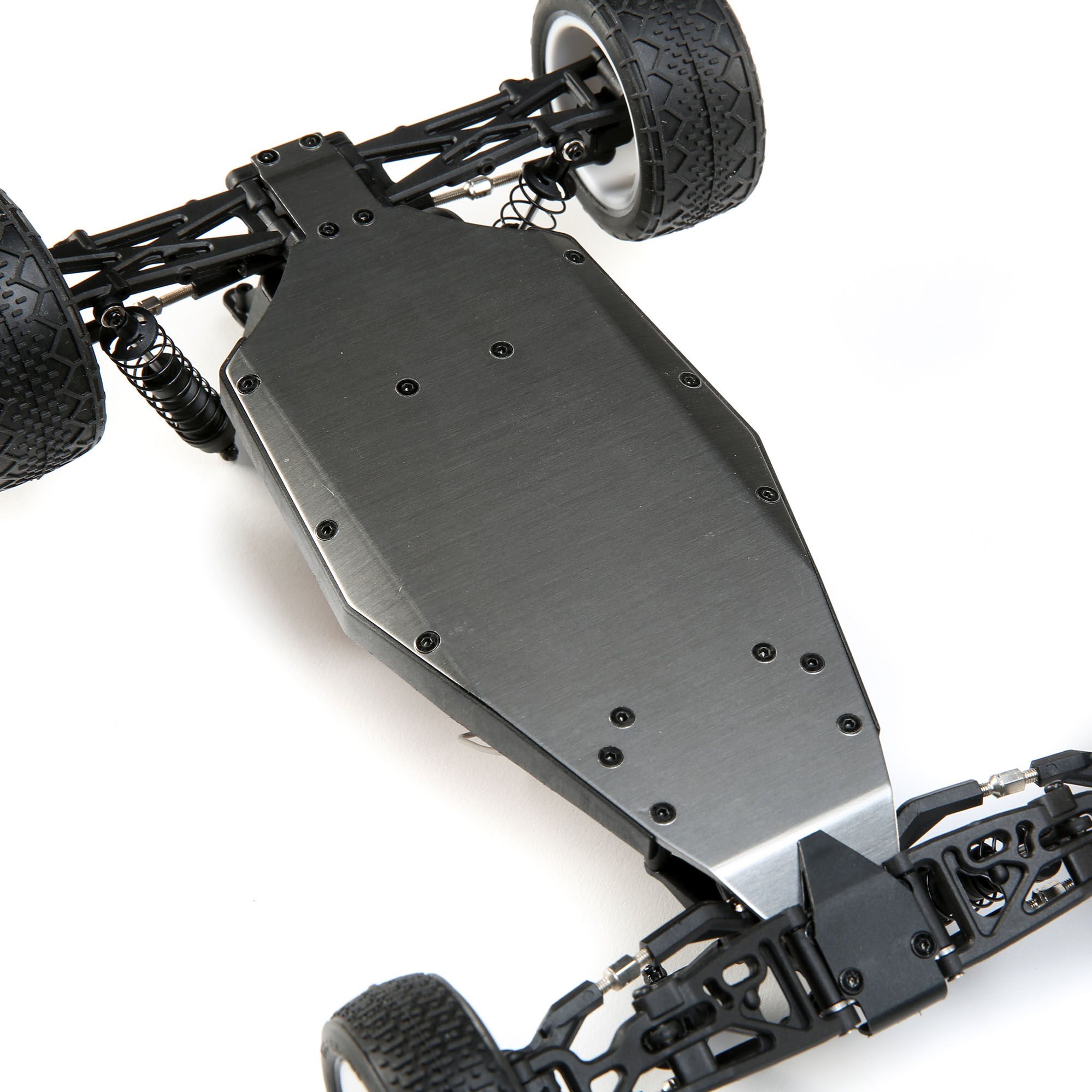

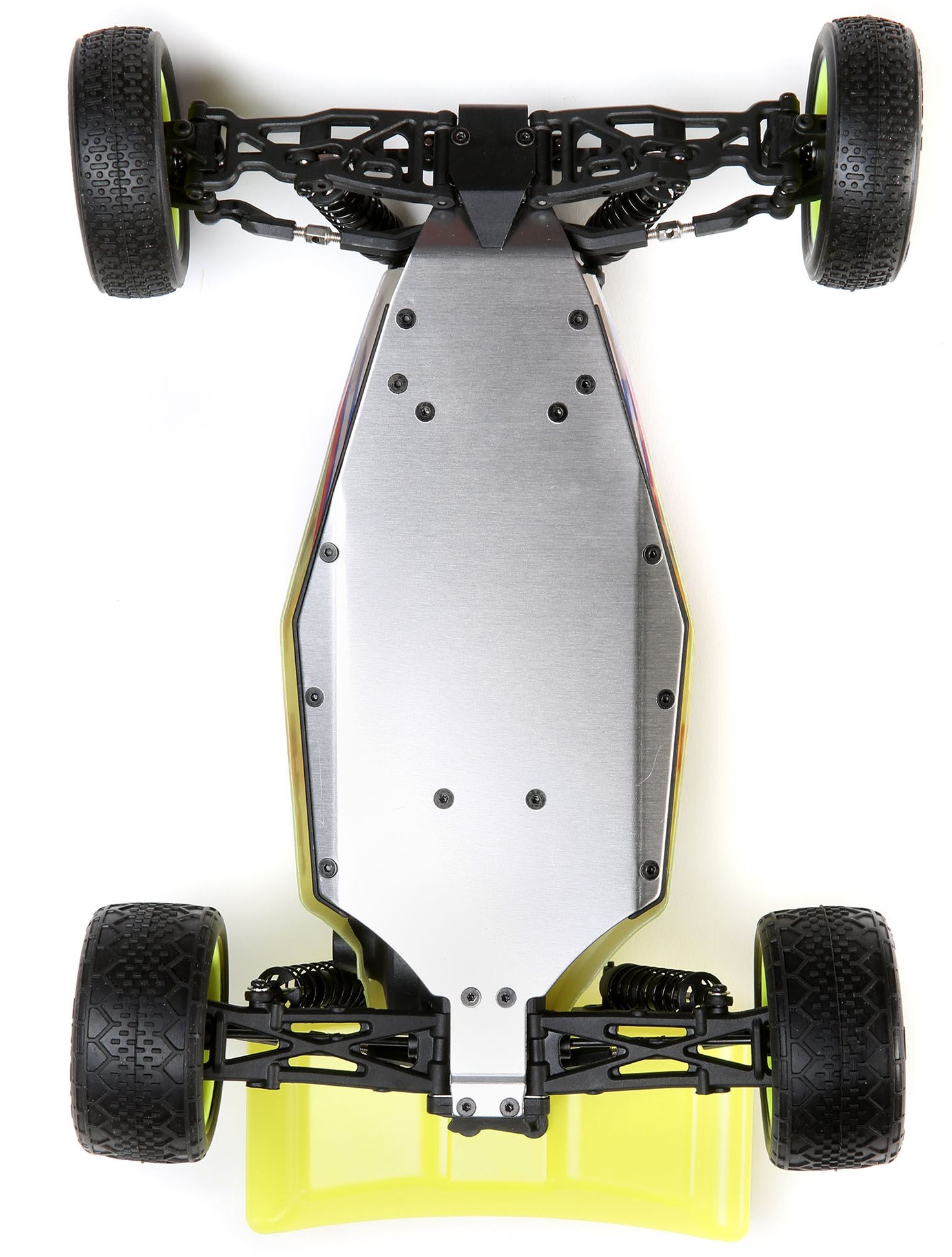

Aluminum Chassis
The Mini-B has been created with a 1.5mm thick 6061-T6 Aluminum chassis plate. The aluminum chassis supplies more strength and sturdiness while significantly improving efficiency.

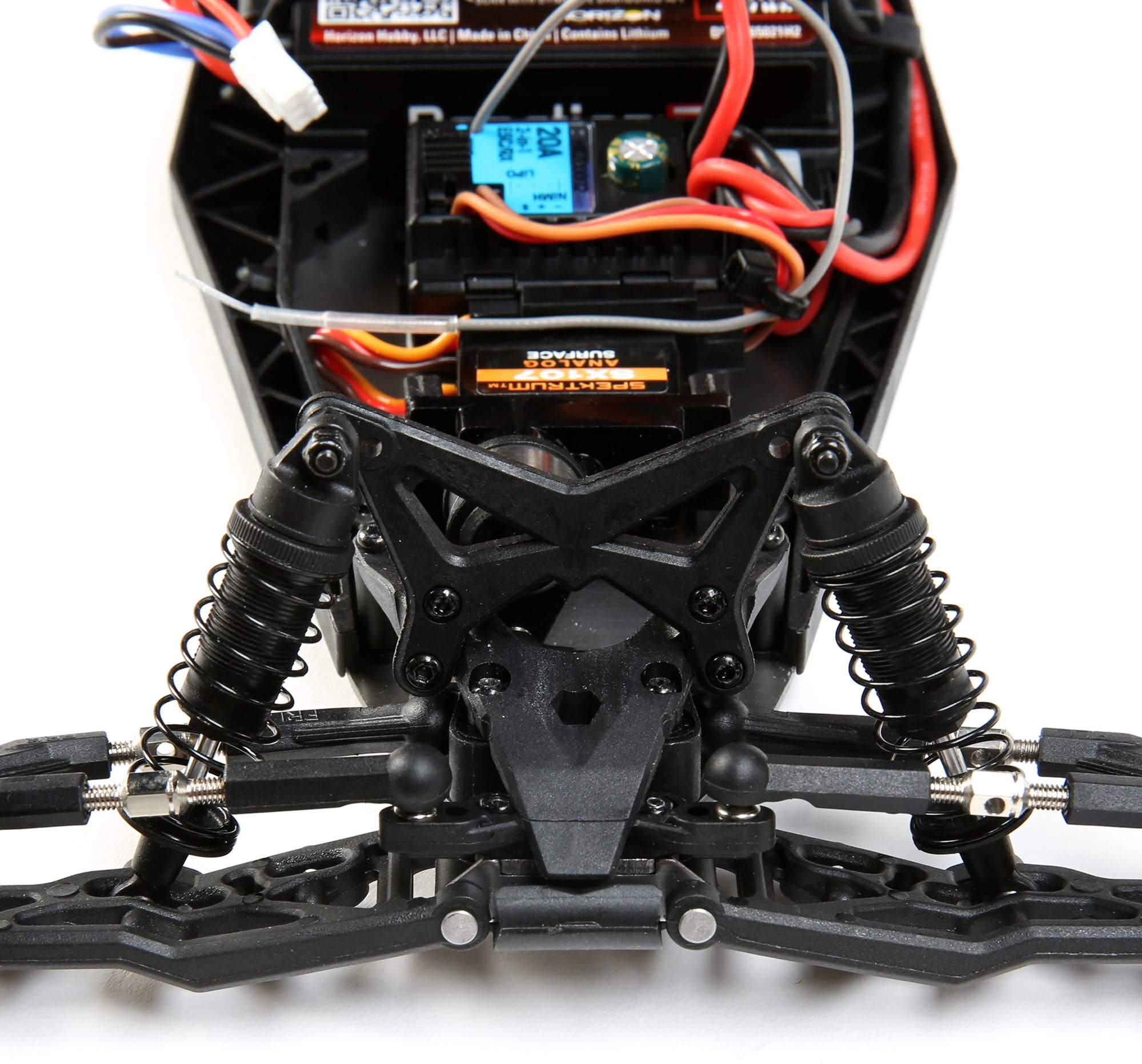

Threaded Oil Filled Shocks
The injection-molded shocks feature threaded shock collars allowing for simple preload/ride height adjustments. In addition, the shock bodies feature a bottom loading, re-buildable shock cartridge with dual o-rings to help keep the oil in the shocks.








Ready To Run
The Mini-B comes fully assembled and ready to rock. Just set up the included AAA batteries in the transmitter, charge the included LiPo battery with the included charger.




Dynamite Reaction 2.0 LiPo Battery
The Mini-B comes geared up with a Dynamite Response 2.0 7.4V 650mAh TWO 20C LiPo Battery for excellent efficiency and run time.








USB Charger
When we state completely ready to run, we indicate it. The Mini-B includes a USB charger making charging your battery simple and hassle-free.




2.4Ghz Transmitter and Receiver
With features like throttle/steering reversing, throttle/steering travel change, the included 2.4Ghz transmitter packs a great deal of features in a small plan with the interference-free connection.

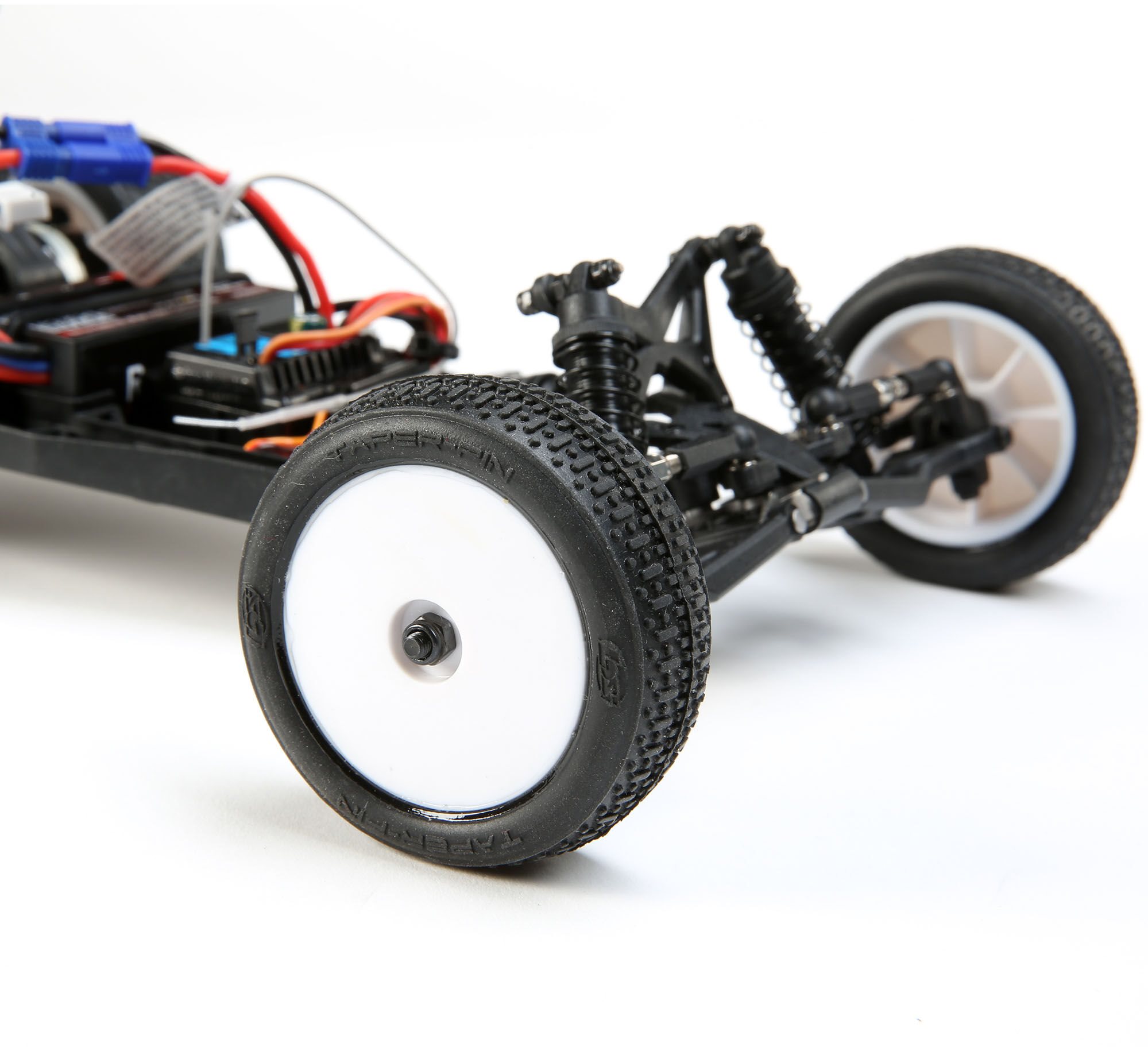

Taper Pin Front Tires
Mounted on dish wheels, the Taper Pin front tires replicate among the most popular tires from Losi.




BK Bar Rear Tires
Mounted on dish wheels, the BK Bar rear tires replicate among the most popular tires from Losi.








Full Ball Bearings*
The Mini-B comes geared up with ball bearings that improve lorry efficiency by minimizing drivetrain friction and increased smoother, longer running.
*Less steering bell crank




Servo Saver
The Mini-B includes an oversized three-wire Spektrum metal gear servo geared up with a servo saver that supplies extra protection.








Waterproof Electronics*
All the Mini-B elements are water resistant, so you can drive in any conditions without any issues.
*For information on water resistant standards, please refer to the product user's manual




TLR 22 Buggy Suspension Geometry
The Mini-B suspension geometry has actually been originated from the TLR 22 Buggy platform supplying well balanced steering and traction from the optimized race design.










Option Parts
The Mini-B has a complete line of alternative parts available from aluminum upgrades, brushless motor, and much more.

Please note – Spektrum IC2 adapters and charge leads ARE NOT compatible with EC2 adapters




Specs

Approximate Assembly Time: Less than One Hour

Ball Bearings: Complete, Less Steering

Battery: Consisted of

Battery Input Lead: EC2

Body: Mini-T 2.0, Polycarbonate, Evaluated

Brakes: Integral with ESC

Bushing Product: Plastic

Charger: Consisted of

Chassis: 1.5mm Plate, 6061-T6 Aluminum

Color Variant: Yellow

Completion Level: Ready-To-Run

Differential: Bevel Gear

Drive Type: Forward/Brake/Reverse

Drivetrain: 2WD

Gear Pitch: 0.5MOD

Motor Size: 280

Motor Type: Brushed

Pinion: 18T

Power Type: Electric

Product Height: 4" (102 mm)

Product Length: 10.7" (272 mm)

Product Width: 7" (178 mm)

Radio: Consisted of

Receiver: Consisted of

Scale: 1/16

Servos: Consisted of

Shock Type: 7mm bore, oil filled

Speed Control: Included

Spur Gear: 60T

Suspension: Independent

Tire Tread: Tapered Pin Front, BK Bar Back

Vehicle Type: Buggy

Water-Resistant: Yes

Wheel Type: Meal

Wheelbase: 7.5 in (190.5mm)
