Kyosho Tomahawk Buggy Kit

This is the Kyosho Tomahawk 1/10 2wd Buggy Set. In 1983, Kyosho chose they needed a pure race chassis. By modifying and tweaking the well-known Scorpion chassis, Kyosho engineers had a race cars and truck. When it was released, the Tomahawk swept the competition in Japan and worldwide, developing a real legend.

Kyosho has listened to the requests from their fans, and the Tomahawk has become the 3rd model in Kyosho's Vintage Series. Keep in mind, this Tomahawk is not a recreation of the original device. Secret elements have actually been updated with contemporary innovation to deliver superior performance. Integrating metal parts from the 2014 Scorpion such as the 6061T6 aluminum main frame chassis, created suspension arms, and 2-piece aluminum diecast transmission, the Tomahawk is difficult as nails. But, the Tomahawk will constantly be a pure racing device with its characteristic Spartan double deck chassis. The radio box has been removed to reduce weight and the battery is side mounted for optimum weight circulation for additional improved racing performance.

Features:

Recreation of Tomahawk that swept races throughout the 1980?s.
Parts updated to 2015 specifications.
Gearbox and oil shocks are pre assembled (Requires filling with consisted of oil).
Decals consisted of create vibrant color pattern. Side window mesh recreated with decals.
Redesigned rear body stay supplies safe mounting of body.
Front/rear tires recreate the look of original however with optimized block pattern and high grip material.
Slipper clutch consisted of to secure drive system from rough treatment and can be adapted to fit various surface conditions.
Countersunk main frame and usage of tapping screws recognize flat surface and minimizes number of nuts.
Hex type screws on chassis (other than on some parts) include security and work efficiency.
Compatible with optional parts for Scorpion for customized chassis tuning.
Blister packaging recreates the original image of the Tomahawk.

Specifications:

Length: 380mm

Width: 236mm

Height: 145mm

Wheelbase: 263mm

Tread (F/R): 198mm / 195mm

Tire (F/R): Φ75 x 20mm / Φ85 x 41mm

Gear Ratio: H- 6.9:1, L- 8.3:1

Weight: 905g (approx.) (without R/C radio and batteries)

Motor: 540 Class

Consists of:

Pre-assembled package (transmission and oil shocks are pre-assembled)
Polycarbonate clear body
Decals
L type hex wrench
Cross wrench
Shock wrench
Shock oil
Grease

Had to Complete:

2 Channel Surface area Transmitter System
Steering Servo
540 class motor (30-27 turn recommended)
ESC suitable with motor set up
7.2V Ni-MH Battery for chassis
Battery battery charger
Paint for polycarbonate body
Batteries for transmitter
Tools (1.5, 2, 2.5mm hex wrench motorist)

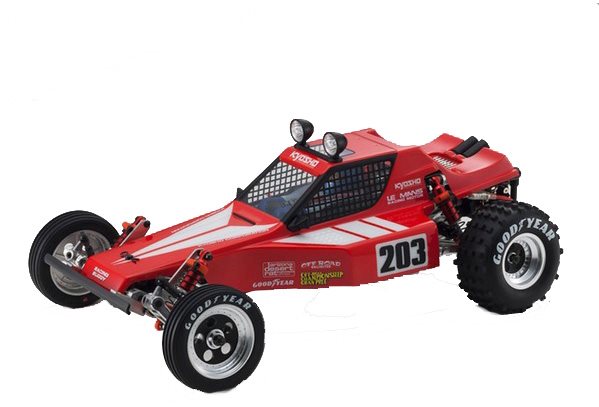

Note: Complete buggy envisioned for illustrative purposes only.
