Kyosho Mini-Z 4X4 Series Readyset Jeep Wrangler Unlimited Rubicon W/Acc

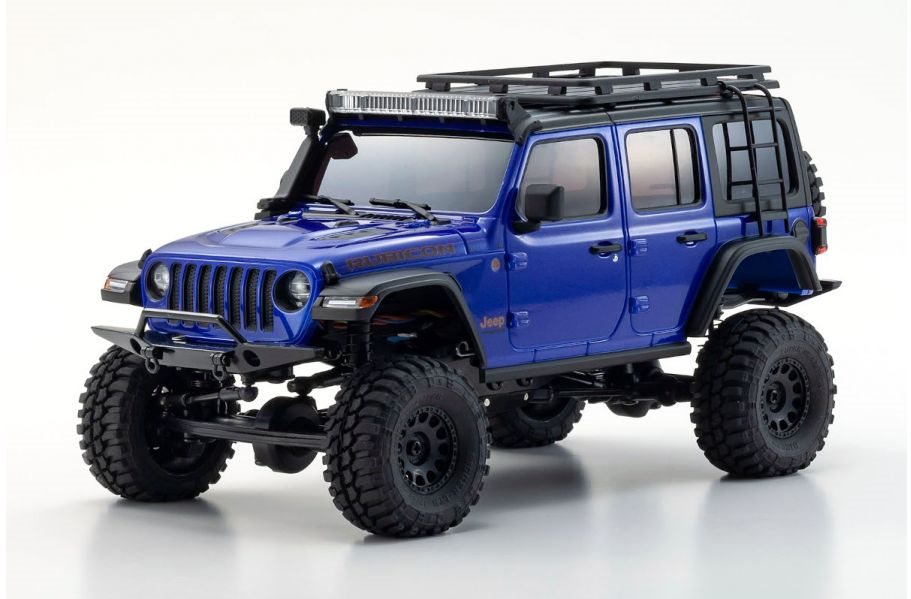

The combination of the highly-detailed body and a 4x4 chassis style opens levels of performance, well beyond anything RC enthusiasts have actually ever seen from a small crawler. In the signature Jeep Wrangler lineup, the Rubicon boasts the greatest off-road performance. With black over-fenders, front grille with dark grey accent, and the unique Jeep round headlights, the formidable styling of the black hard top is immaculately reproduced in a design that rests on the palm of your hand.

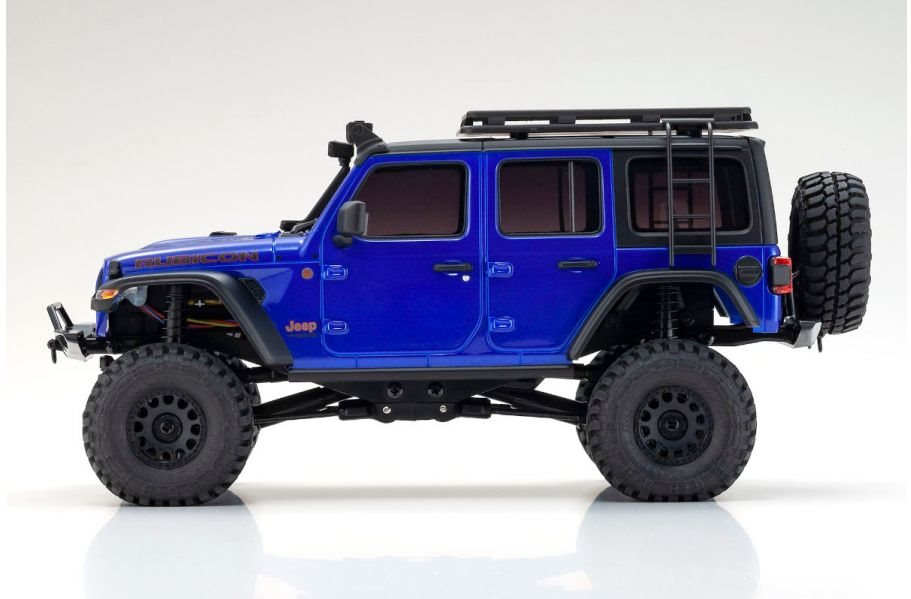

The body includes scale side ladders and roofing rack. Black Over fenders, grille, light bar and snorkel boost the scale appearance. Fat Interco Super Swamper "Bigger" LTB tires with brand-new wheels provide a more aggressive look. The Mini-Z 4X4 uses a ladder frame style with steel vertical plates to provide the supreme balance of rigidness and flex for exceptional performance and resilience. Solid front and rear axles include metal ring and pinion gear for resilience and consistent performance. Coil over shocks include a 360 degree spring retainer that cannot be lost on the trail and keep the springs where they need to be while operating at the limits of the suspension. The gearbox includes molded covers, ball bearings, and 6 pinion equipments that permit a complete variety of change according to your selected surface. As with all Mini-Z designs the gear mesh is quickly set utilizing the supplied spacers. A standard slipper clutch protects the drive system and includes a metal shaft and main gear for durability.

TECHNICAL DATA

Length 202.0mm

Width 95.0mm(Both ends of the tire)

Height 96.0mm

Chassis Type MX-01

Wheel Base 120mm

Tread F/R:77.0mm

Weight 247.6g (excl. battery)

Motor/Engine 130 Class

Gear Ratio 55.44:1/46.20:1/39.60:1/34.65:1/30.80:1/27.72:1

Front Tire Size 40.5mm

Rear Tire Size 40.5mm

Front Tire Width 18.0mm

Rear Tire Width 18.0mm

Battery 4 x AAA Alkaline

Transmitter Syncro KT-531P

Speed:Approximate. 2.7km/h?5.4km/h (Pinion equipments 10T? 20T)

Running Time Approximate. 60 minutes

SET CONTENT

Total chassis with integrated electronics.

Factory-painted body total with numerous great information

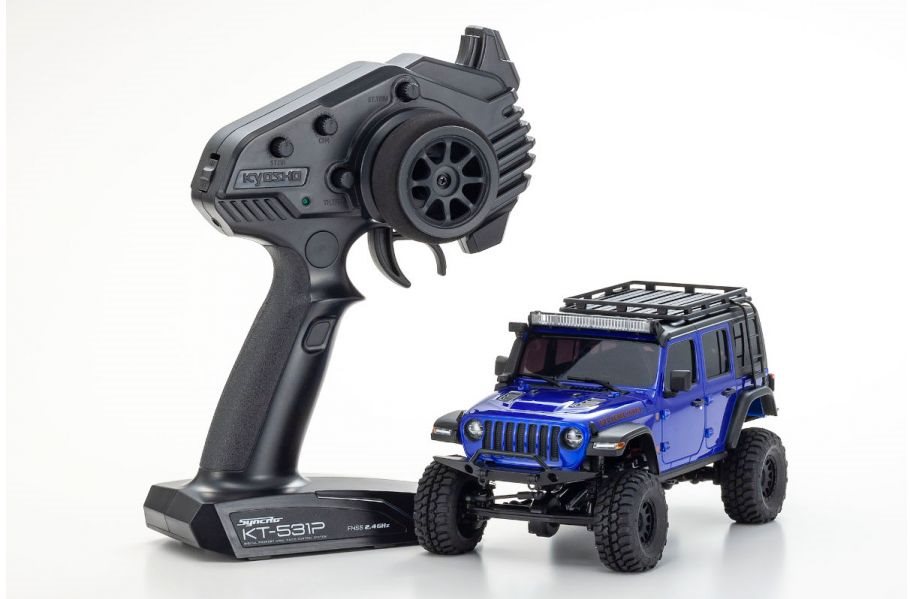

KT-531P 2.4GHz transmitter

Pinion gear set(10T, 12T, 14T, 16T, 18T, 20T)

3 kinds of pinion gear spacers

REQUIREMENT TO RUN

4 x AAA batteries for the transmitter

4 x AAA batteries for chassis (Alkaline or NiMH)

Item Developed: 08/29/2023
