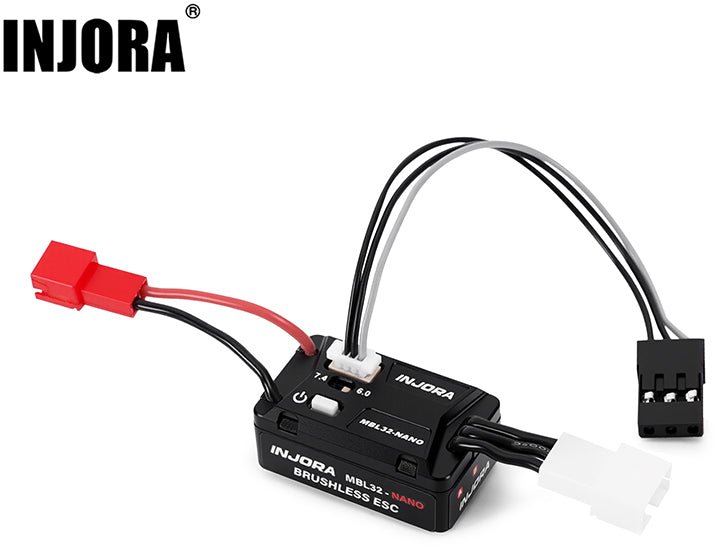

INJORA MBL32-NANO Brushless ESC for 1/30 Axial SCX30
Note:Pre-configured and ready to run. No programming required.
USB programmer card is not included.
For use with INJORA brushless motors only. Damage caused by using other motors is not covered under INJORA warranty.
Please use 2S LiPo!Features:The INJORA MBL32-NANO, based on the AM32 firmware, is meticulously tailored for RC crawlers and is programmable.
Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise.
MBL32-NANO features a built-in BEC with adjustable output: 6V / 7.4V.
Waterproof Design for all-weather performance.
Supports PC Programming via USB programmer card.
Multiple Protections: Low-voltage, fail-safe, and rotor lock protection.
Specifications:Part Number: MBL32-NANO
Continuous Current: 25A
Peak Current: 45A
LiPo Cells: 2S LiPo
BEC Current: 3A
Output: 6.0V/7.4V adjustable
Dimensions (L×W×H): 25.5×15×12mm
Waterproof: Yes
Weight: 0.34oz (9.5g)
Compatible Motors: INJORA 1621/1721
Package List:1 × MBL32-NANO Brushless ESC
