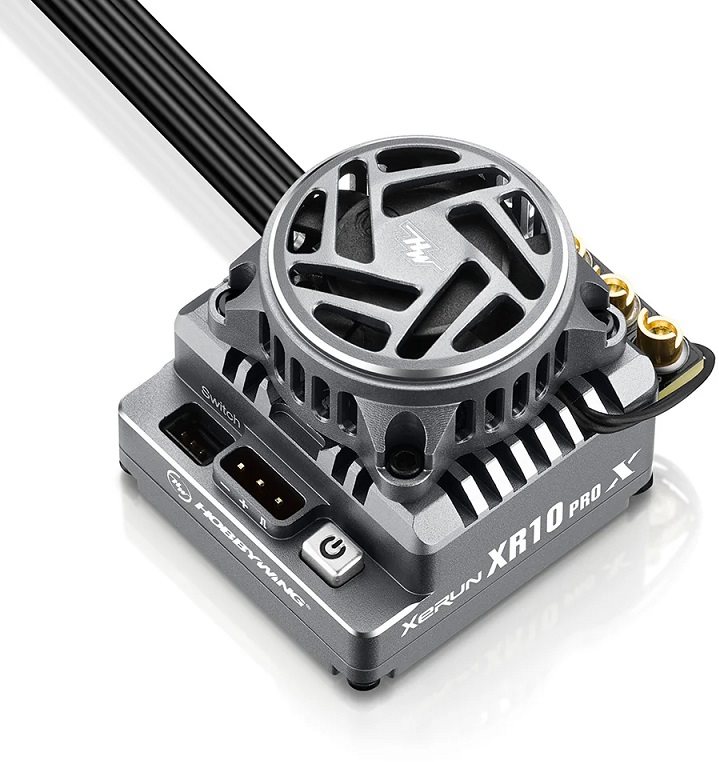

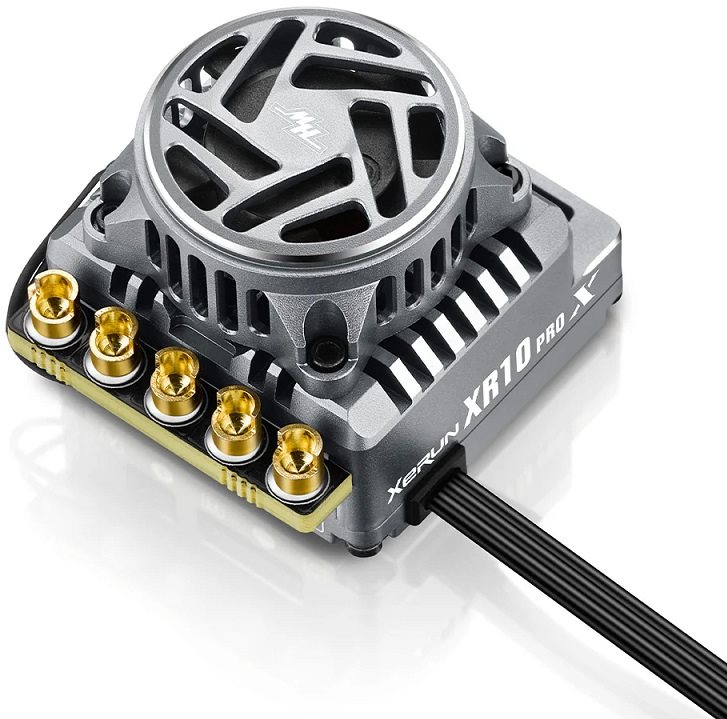

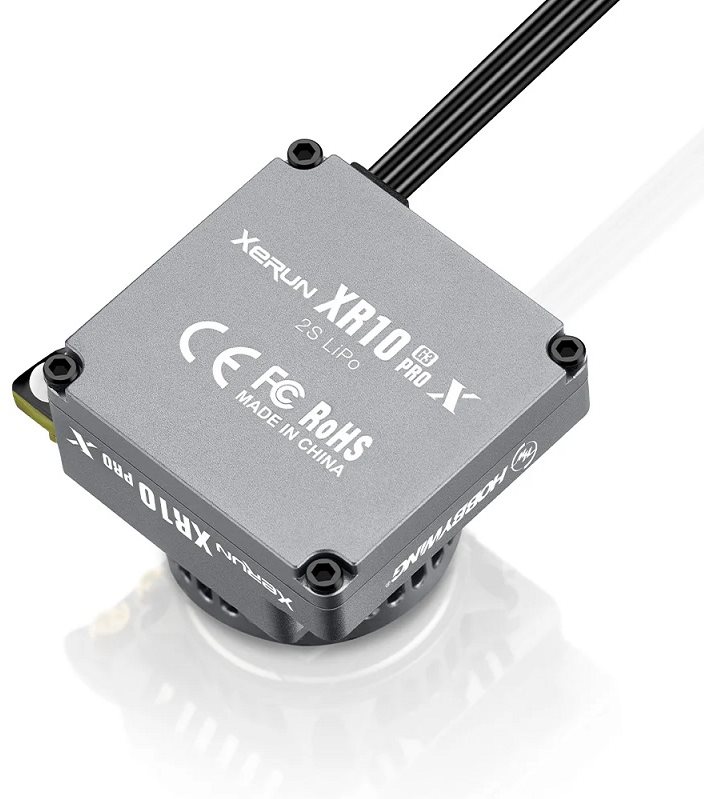

HOBBYWING Xerun Xr10 Pro G3x Esc (HOBBYWING 30112620 | HWI30112620)
HOBBYWING Xerun Xr10 Pro G3x Esc

Zoom

Zoom

Zoom

Model: HOBBYWING 30112620
Dist. #: HWI30112620   SKU: HWI30112620

Be the first to review this product. (Write Review)

Shipping: In Stock For Shipping
Store Pickup:

South Jordan, UT
Ship To Store - Pick up in 2 to 3 days..

Price:  $259.99

This item will earn you 260 reward point(s).
260 points = $5.20 off your next order. Learn More
Updated on Oct 12, 2024 08:30:22 AM

Xerun XR10 Pro G3X ESC

Features:
  • The XR10 PRO G3X ESC is purpose-built for 1/10th Stock class racing, offering optimized performance and precision control. Featuring a HOBBYWING trade secret that handles aggressive current without generating extra heat, it reduces resistance and maximizes performance. With advanced features and customizable settings, it delivers exceptional power and responsiveness, giving racers a competitive edge.
  • Three selectable profiles are available for all 1/10th RC car racing. To accommodate various racing conditions, the firmware includes three easy-to-select preset modes. Users can customize and rename these modes to suit their control preferences, track conditions, etc. For example, '1/10 On-Road' can be renamed to 'ROAR2025_SPEC_13.5' to indicate a race using a 13.5T motor at the 2025 ROAR event. These profiles can be saved for future reference.
  • An internal electronic key switch ensures long service life and high reliability, while the external switch port allows for the connection of an external switch (not included, sold separately), offering flexibility for various installations.
  • The separate programming port can power an external fan or connect to an LCD Program Box Pro or OTA Programmer for the ESC.
  • Variable frequency regulation of PWM and brake frequencies allows users to precisely control the driving and braking forces of the motors.
  • The softening function, Patent developed by HOBBYWING, enhances power delivery tuning and improves driving efficiency.
  • Disc Brake mode, an innovative feature by HOBBYWING, provides smoother and stronger braking performance.
  • Multiple protections include, low-voltage cutoff protection (LVC), ESC and motor thermal protection, and fail-safe (throttle signal loss protection).
  • The ESC features a built-in data recording module, eliminating the need to constantly connect to the OTA Bluetooth module. After use, connecting to the OTA Bluetooth module allows users to view various performance data.

Specifications:
  • Cont./Peak Current: 160A/1200A (not a typo)
  • Motor Type: Sensored / Sensorless Brushless Motors
  • Applications: 1/10th offroad stock racing, Drift, F1, Rally
  • LiPo Cells: 2S LiPo
  • BEC Output: 5-7.4V Adjustable, Cont. current of 5A(Switch-mode)
  • Cooling Fan: Powered by the stable BEC voltage
  • Wire gauge: 12AWG - Super conductive silicone wires
  • Size: 35.0x33.6x30.3mm (w/Fan&Fan Shroud)
  • Weight: 101.5g (w/wires)
  • Programming Port: Independent programming interface
  • Reverse Polarity Protection: No
  • Recommended Motor: HOBBYWING V10 brushless Motors (13.5T-25.5T)


Item Created: 10/10/2024
