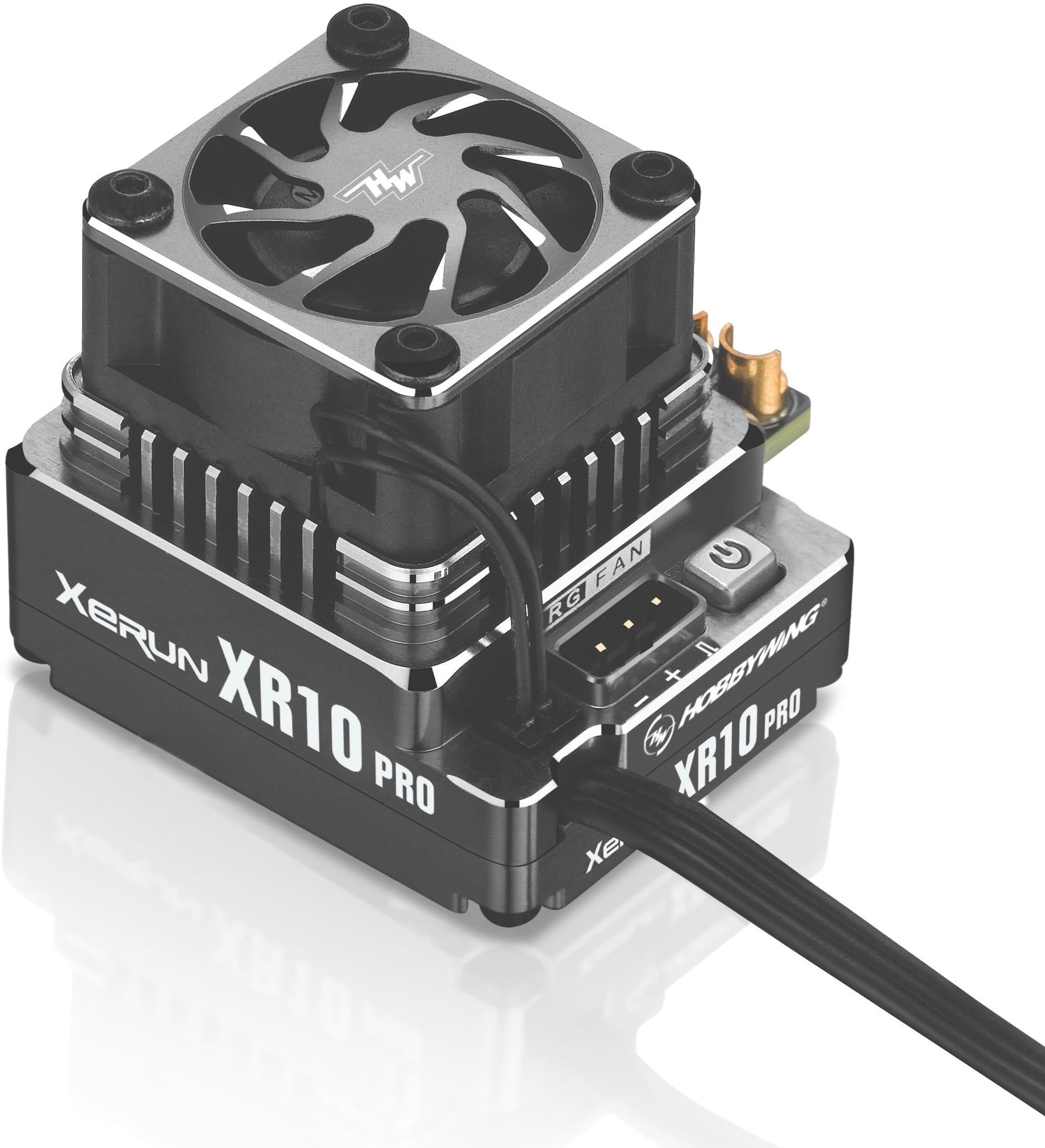

HOBBYWING Xerun Xr10 Pro G2s Esc - Stealth

32-bit M4 Microprocessor for Top Racing

High-performance 32-bit M4 microprocessor greatly improves processing capability----make the more complex and precise data operation possible, that allows the ESC to have a really fast response and a remarkable potential to enhance and extend its functions. Hardware for professional racing integrated with effective software application turns the ESC into a "sharp weapon" for top racing.

Reverse Polarity Safeguarded

The XeRun XR10 PRO G2S is reverse polarity safeguarded. In an event when a user slips up by reversing the polarity, the ESC will not be broken.

Note: The basic capacitor included in the ESC will be damaged when the polarity is reversed. By selecting the optional non-polarity capacitors (Item number: 30840004,30840005), it will have the ability to avoid any sort of damages from happening.

Frameless fan style

The frameless fan style is a trademarked technology. The fast transmission of internal heat to the integrated housing radiator are comprised of high airflow from the side of the fan and a copper thermal conduction sink on the internal power

plate. These are constructed into high-reliability thermal systems to make sure that it is constantly in excellent thermal condition. Patent PCT/CN2021/115679

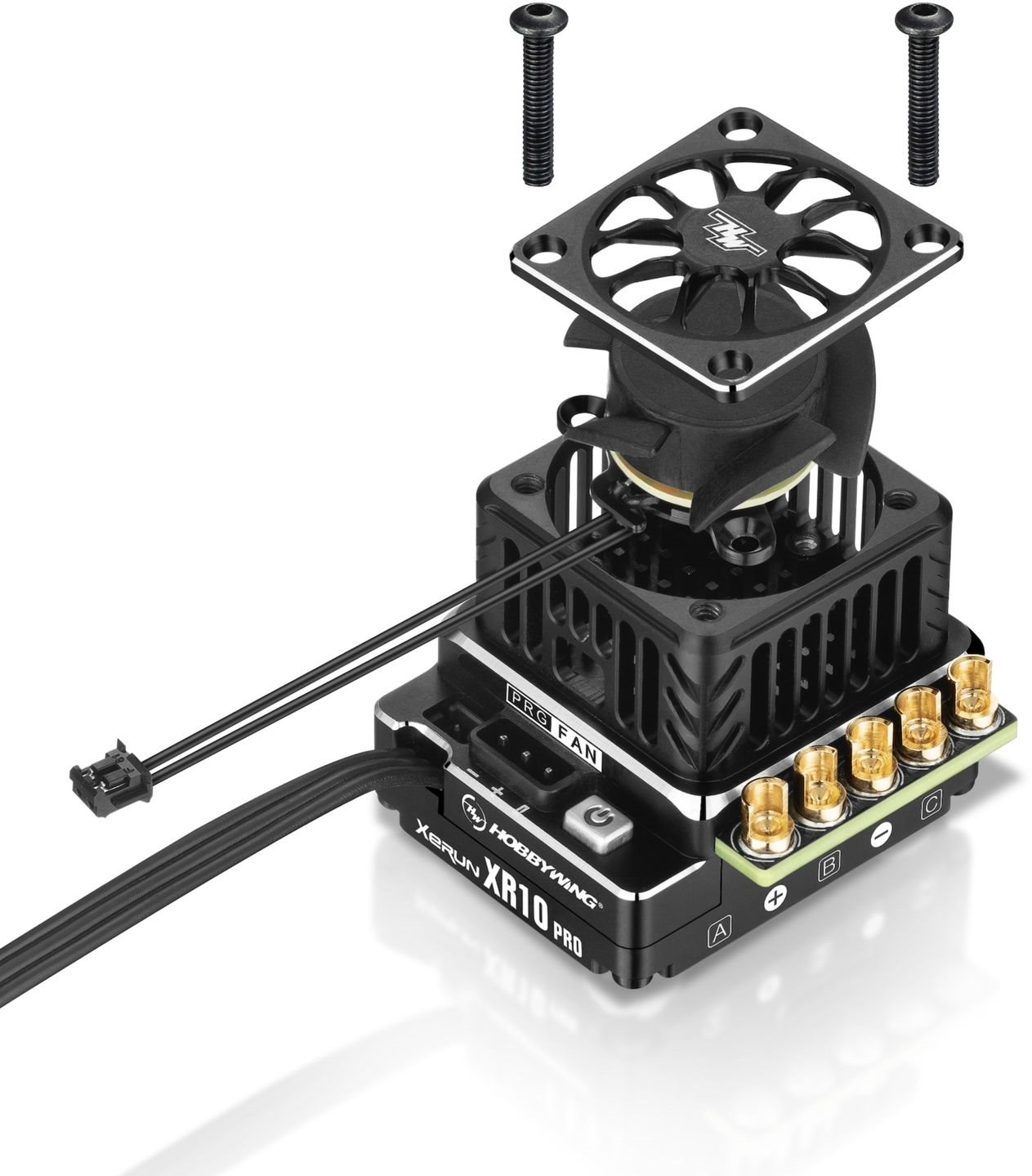

Resilient frameless fan

The all-new frameless fan blades uses a special material and are incredibly hard and reputable. It greatly lowers the damage of the fan blades triggered by the effect of little stones, sand and other foreign items. Thus, lowers the failure rate of the fan than compared to the conventional pbt fan.

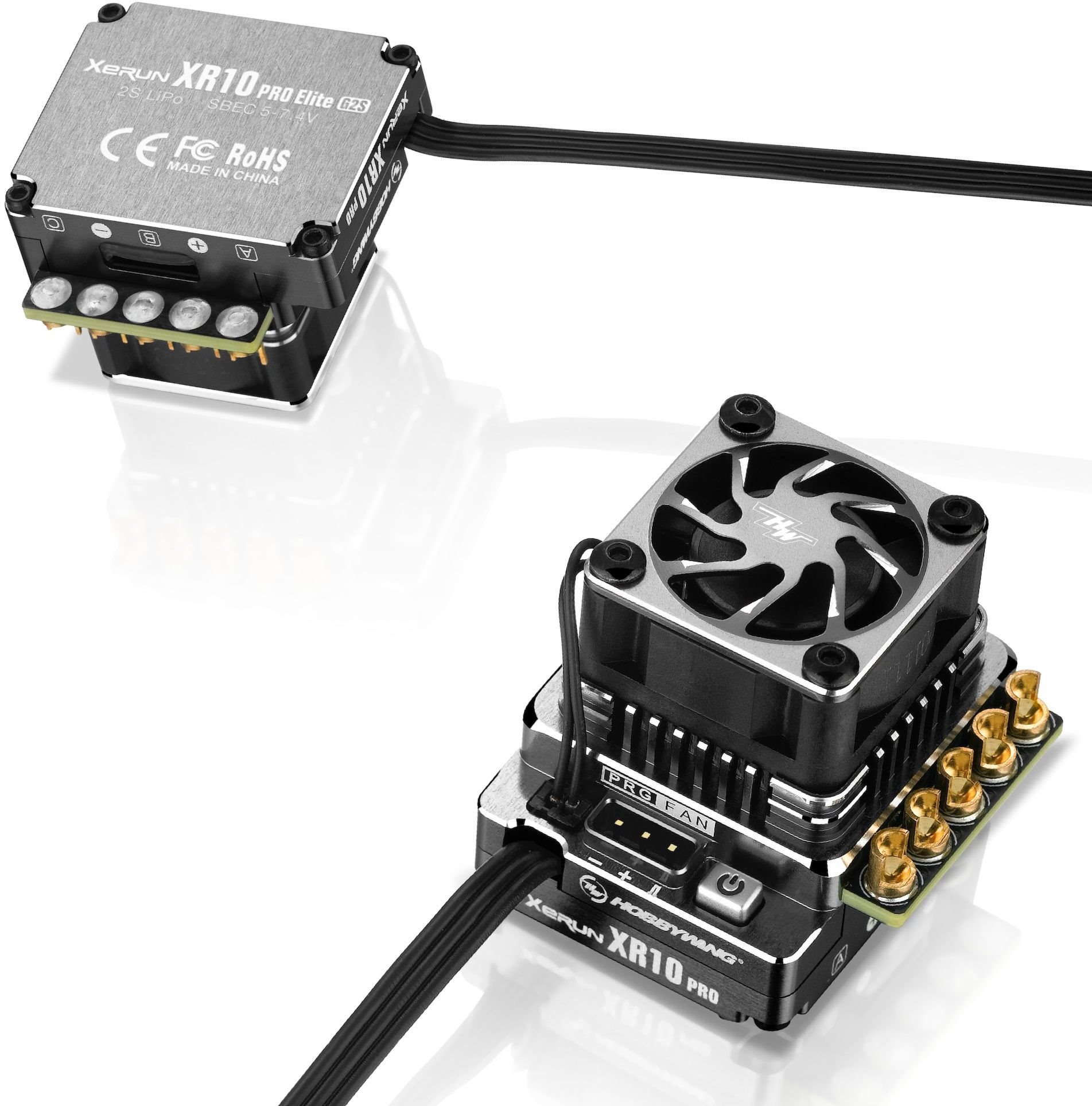

Note: The elite variation is equipped with a normal fan.

New communication procedure for quick setup of criteria, firmware upgrades

The new communication procedure is utilized to set criteria and significantly

increase the speed of firmware upgrades, and the LCD G2 is two times as quick as

the OTA Programmer speed is 3-4 times faster.

Precisely adjustable throttle and brake PWM frequencies

The Throttle and Brake PWM Frequency support the ability to tailor the

frequency of each throttle sectors. For example, the variables on the frequency are fully adjustable for precise control to fulfill the requirements of various motorist needs.

Optimized programmable criteria

Specification are optimized for top-level competitors applications, including new AC

line changing, preliminary start-up force modification, drag acceleration modification, etc.

Note! Usage suitable settings provided by the factory or team motorists. Inspect

operating temperature in order to optimize your electronics. The incorrect settings

may damage the ESC/motor!

Extended Range of Max. Brake Force (Bonus Brake: 101%-150%)

Bonus brake supplies the larger brake force than basic brakes. Even if it's applied in the Stock/Blinky class by cars with a really little equipment ration/FDR, it can still ensure sufficient brake force.

New drag acceleration modification

This criterion is utilized to manage the speed of the drag-brake response. Setting a suitable value can improve the drag braking impact of the lorry, hence, improving drivability to fit each user. The value can be adjusted up to 20 levels. Increasing the value will lead to a higher drag brake effect.

Super Internal BEC

Integrated switch mode BEC with an optimal output of 10A and voltage

adjustable from 5V to 7.4V (action:0.1V) for use with high voltage servos.

Softening Function (*Hobbywing's Patented Technology)

Softening function carried out by this ESC allows users to fine-tune the bottom end and maximum the control feel of cars in Customized class of high speed racing.

Seamless connection with OTA module box and smart phone

Simple and practical, criterion settings, firmware upgrading and other operations can be established utilizing Hobbywing's OTA Bluetooth module and your smart phone via the Hobbywing app.

Real-time data log makes it simple to access operating status

After connecting the OTA module box, turn on real-time data recording

function to access the operating status.

Note: Bluetooth transmission range is most reliable within the 5m radius

Item Created: 12/14/2021
