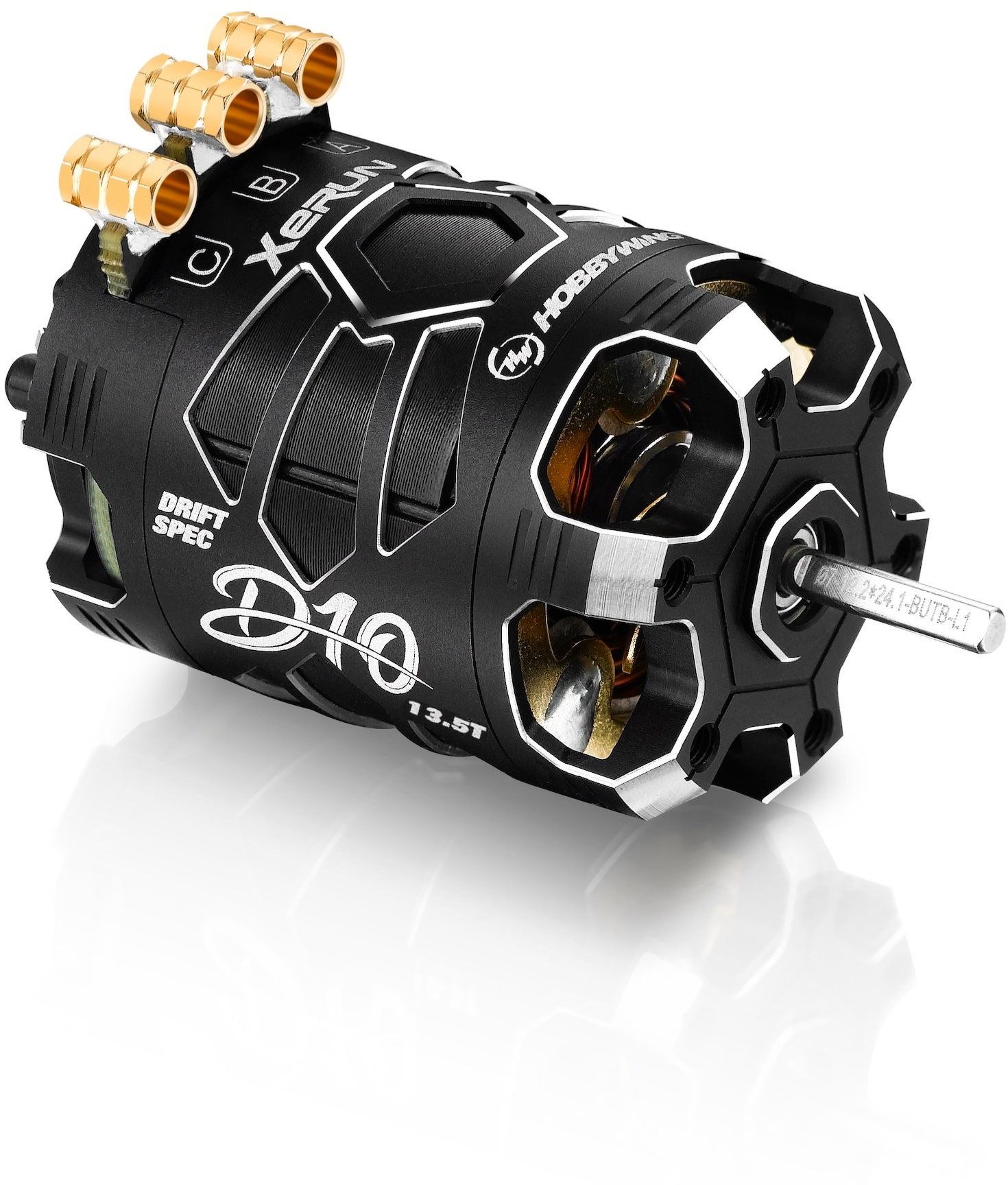

HOBBYWING Xerun D10 Brushless Drift Motor -13.5T, 2900Kv, Stealth Edition

Elegantly designed for drift

The Xerun D10 motors supply the perfect colors to perfectly match your drift devices. Readily available in Black, Red, and Purple.

Banana plug-in quick-swap design

The motor comes factory soldered with high quality 3.5mm banana plug for simple gain access to swap to different motors. 3.5mm male head is likewise consisted of in the XD10 ESC.

New stator designed for drift applications

The new motor stator is enhanced for drift and improves motor effectiveness in drift applications. Integrated with high-precision sensors board, combined with drift-specific fan rotors, supplying exceptional motor linearity and drivability while

greatly improves motor efficiency.

Lightweight

The 10.5T motor weighs roughly 158g while the 13.5T is at 165g (consisting of 3 gold insert weights). The lightweight motor allows user to quickly fine-tune their weight predisposition on their car.

Equipped with fan rotor,

Providing fantastic heat dissipation, power the special-shaped gold fan on the rotor warms the motor while making a pleasant sound, particularly when Turbo is turned on.

Best paired with XD10 PRO ESC

IMPORTANT NOTES:

The D10 motors supply a wide variety of adjustable mechanical timings, the following are the methods & principles you can follow when changing the timing.

You can change the motor timing after unfastening the screw on the rear end-plate. Please change the timing as required according to the mark (/white lines) at the rear end of the motor and attach the screw after the modification. For getting optimal efficiency, you can alter the output range and qualities of your power system by changing the motor timing.

Increasing the timing can increase the motor speed (/RPM), while that likewise increases the motor temperature level and decreases the effectiveness. A high(er) timing usually requires a high(er) ratio.

Please guarantee your ESC is properly set prior to setting the motor timing. For in-depth details about ESC programming, please refer to the user manual of the ESC.

After the timing modification, please guarantee that your motor will not get overheat after running an entire pack (i.e. LiPo). You can get the details about the motor temperature level via a infra-red temperature level weapon. If the temperature level is too high, please let the motor cool down first and then test again. If the temperature level is still too high, then please decrease the timing or increase the FDR (that is to replace the pinion equipment with less teeth or spur equipment with more teeth.).

Specs:

Product Developed: 10/06/2021
