Model: HOBBYWING 80060440
Dist. #: HWI80060440
SKU: HWI80060440
Be the first to review this product. (Write Review)
Shipping: In Stock For Shipping
Store Pickup:
South Jordan, UT
Available Now!
|
List Price:
|
$55.00
|
|
Price:
|
$49.99
|
|
You Save:
|
$5.01 (9%)
|
|
|
|
|
This item will earn you 50 reward point(s).
50 points = $1.00 off your next order. Learn More
|
Updated on Sep 21, 2023 12:53:33 PM

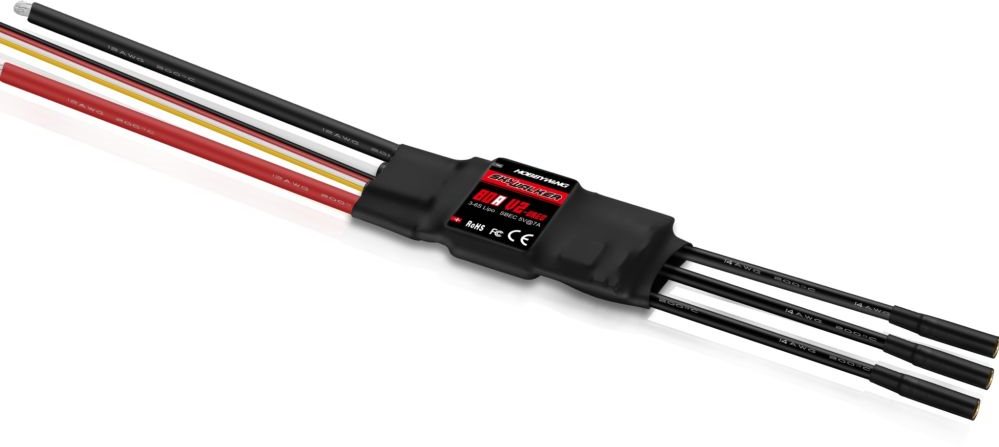

Skywalker 80A V2 UBEC ESC, 3-6S
Features:
- High-performance 32-bit ARM M0 processor running up to 96MHz, support maximum speed up to 300,000 RPM (2-pole motor).
- Reverse Brake and Linear Reverse Brakes mode can effectively shorten the landing distance of the aircraft to simulate the landing of a real aircraft.
- DEO technology (Driving Efficiency Optimization) for fast and smooth throttle response, higher driving efficiency, longer flight times, lower ESC temperature, and more reliable operation.
- Search mode can help users find their aircraft by pulsing the motor to beep after the aircraft falls into a visually obstructed environment.
- Programmable with the LED Program Box, or transmitter.
- Multiple protection features include abnormal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the life of the ESC.
Specifications:
- p/n: 80060440
- Model: 80A V2
- Cont.Current: 80A
- Peak.Current: 100A
- Input Vol (Lipo): 3-6S
- BEC Output: 5V @ 7A (Switch-mode)
- Size (mm): 85x36x9
- Weight (g): 79
- Wires input : 12AWG-100mm
- Wires output: 14AWG-100mm
- Output connectors: 4.0 Gold Connectors (Female)
- Programming: Stick / LED program box
- Firmware update: N
Product Manual
- HOBBYWING Skywalker 80A V2 Ubec Esc, 3-6S
