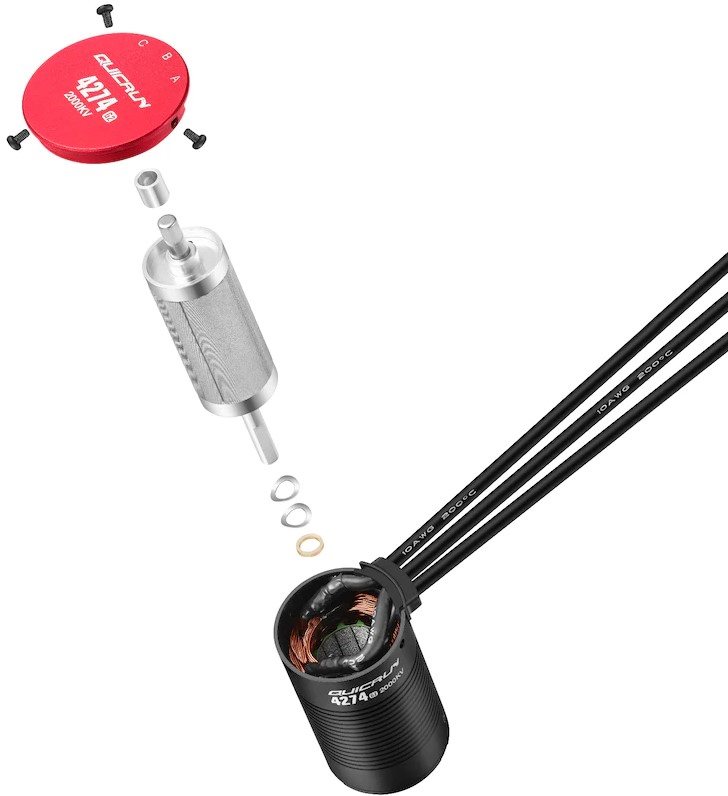

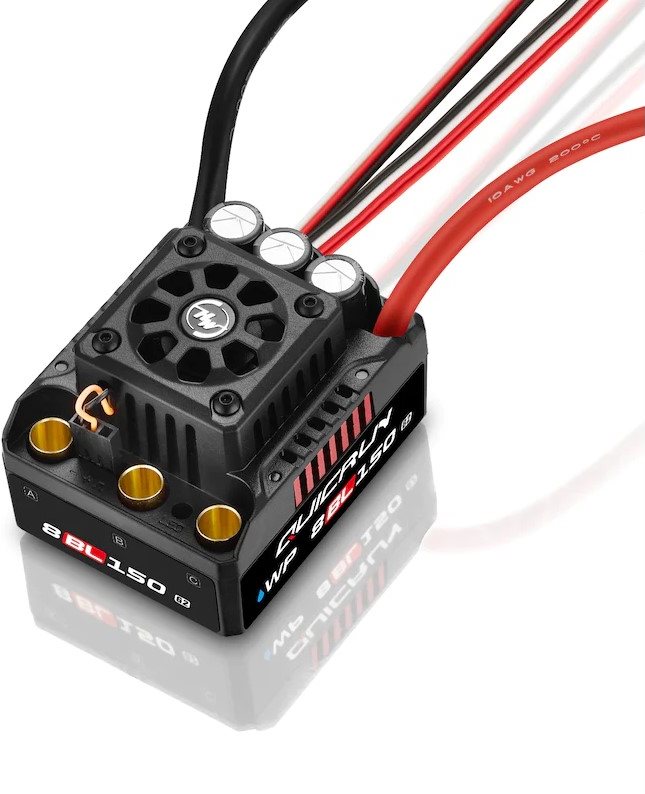

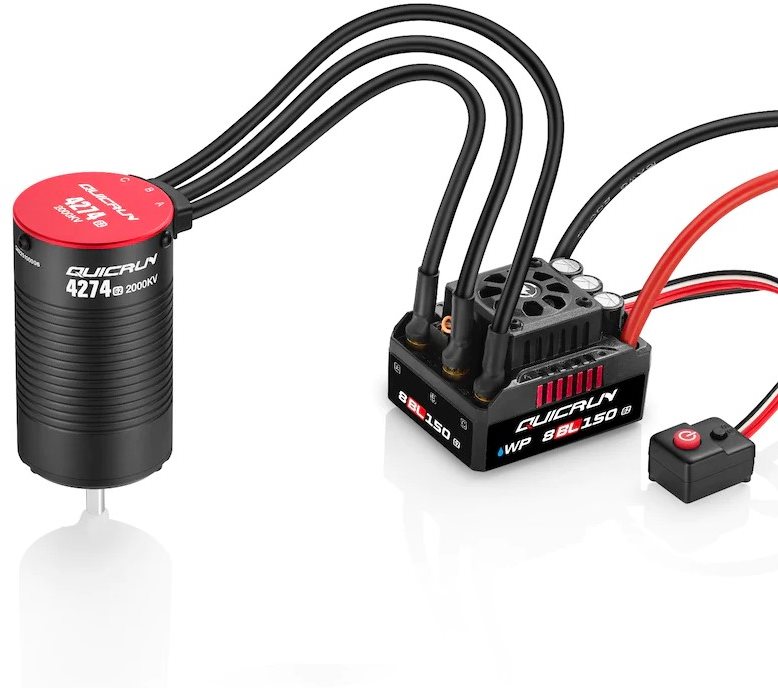

The Quicrun WP 8BL150 G2 ESC provides excellent waterproof and dustproof performance for use in numerous climatic conditions and harsh environments. The wise freewheeling innovation increases effectiveness and minimizes operating temperature level, while the effective switch mode BEC and numerous protection functions ensure a safe and trusted drive. Use the independent shows port to quickly change settings without needing to disconnect the throttle cable.ESC Includes:150A/950A Sensorless, Sensored Brushless Motor for 1/8 RC. Functions with 3-6s Lipo. BEC Output of 6V/7.4V adjustable, continuous current 6A (switch mode). Cooling fan powered by built in BEC. Programming port shared with fan port.Motor Limitation with four Lipo: 3000 KV. Motor Limitation with Six Lipo: 2400 KV (4274 size motor).Motor Characteristics:Quicrun 4274SL 2000KV G2 works with 3-6S Lipos. 4 poles.No-load Current: 5.9A.Diameter/Length: ⌀=42mm (1.65") L=74.9mm (2.95")Weight: 477gShaft Diameter/Length: ⌀=5mm (.2") L=18.5mm (.73")Bearing Size (mm): Front=D16xD5xT5 Rear=D13xD5xT4
Product Created: 08/18/2023
TLR-1233
