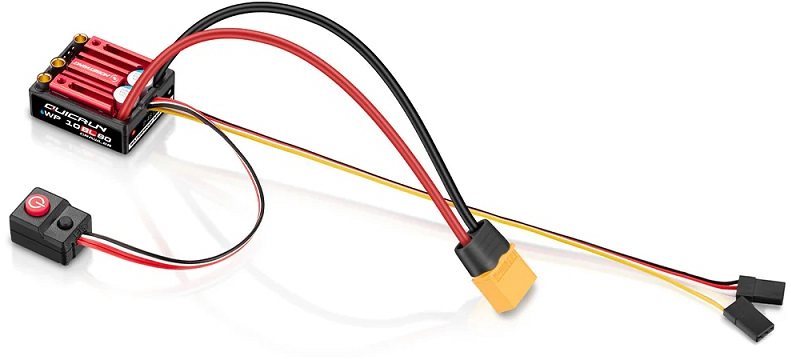

QUICRUN WP 10BL80 ESC for Crawlers
ESC serves both Brushed & Brushless Crawlers
Compact, Powerful, and Capable: 4S/80A performance in a 36x30x15.5mm package. Superior low-speed torque and smooth operation for 1/10th scale crawling.
Includes:
- 1x WP 10BL80 Crawler ESC
- Factory-installed XT60 plug
- 1x Decal and Manual
- 1x Heatshrink kit, double-sided tape, and zip ties.
Features:
- It supports Sensorless Brushless motors & Brushed Motors.
- Compatible with most brushed or brushless motors on the market.
- Fully waterproof design for all conditions.
- Super internal switch-mode BEC with switchable voltage of 6V/7.4V/8.4V for usage with high torque and high voltage servos.
- Separate programming port to easily connect the LED program box or the LCD program box pro to the ESC.
- Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, and fail safe (throttle signal loss protection).
- It has the function of using transmitter (AUX channel) to adjust the drag brake force in real time.
Specifications:
- Continuous/peak current: 80A/240A
- Motor Type: Sensorless brushless motor, and brushed motor
- Applications: Outer 3530SL sensorless outrunner motors; 540, 555 including other brushed motors
- LiPo Cells: 2-4S LiPo
- BEC Output: 6.0V/7.4V/8.4V, 5A
- Size: 36(L)*30(W)*15.5(H)mm
- Weight: 47.8g (included wires & connectors)
- Programming Port: Independent programming port
