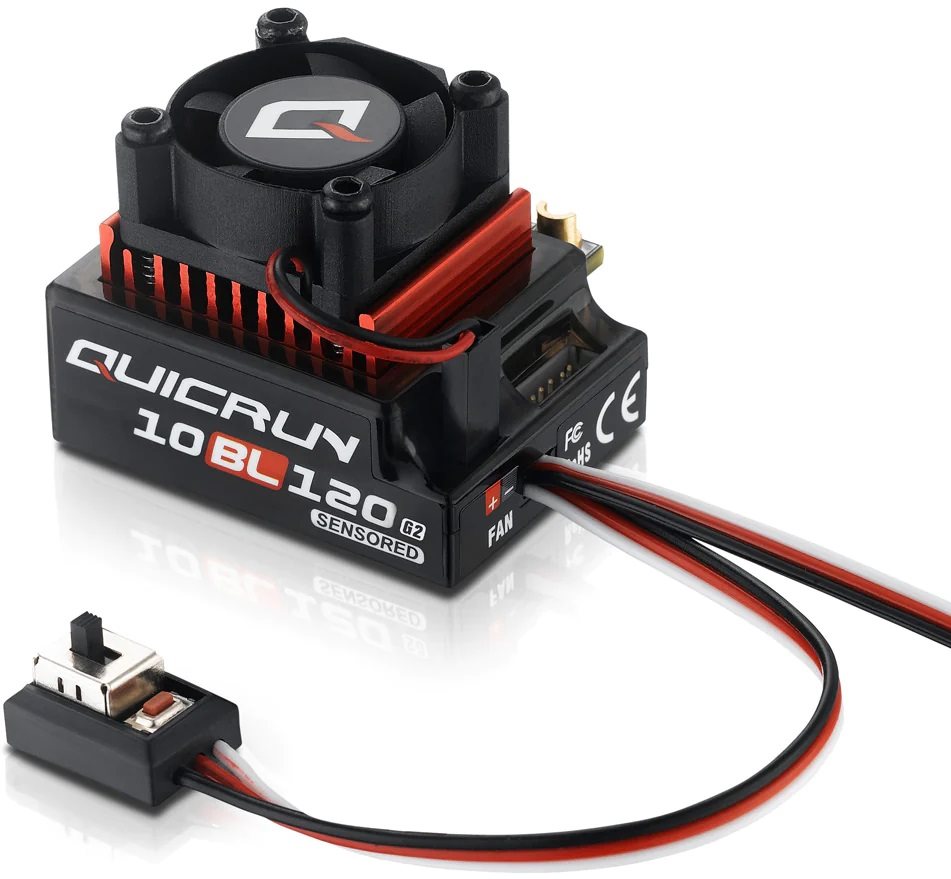

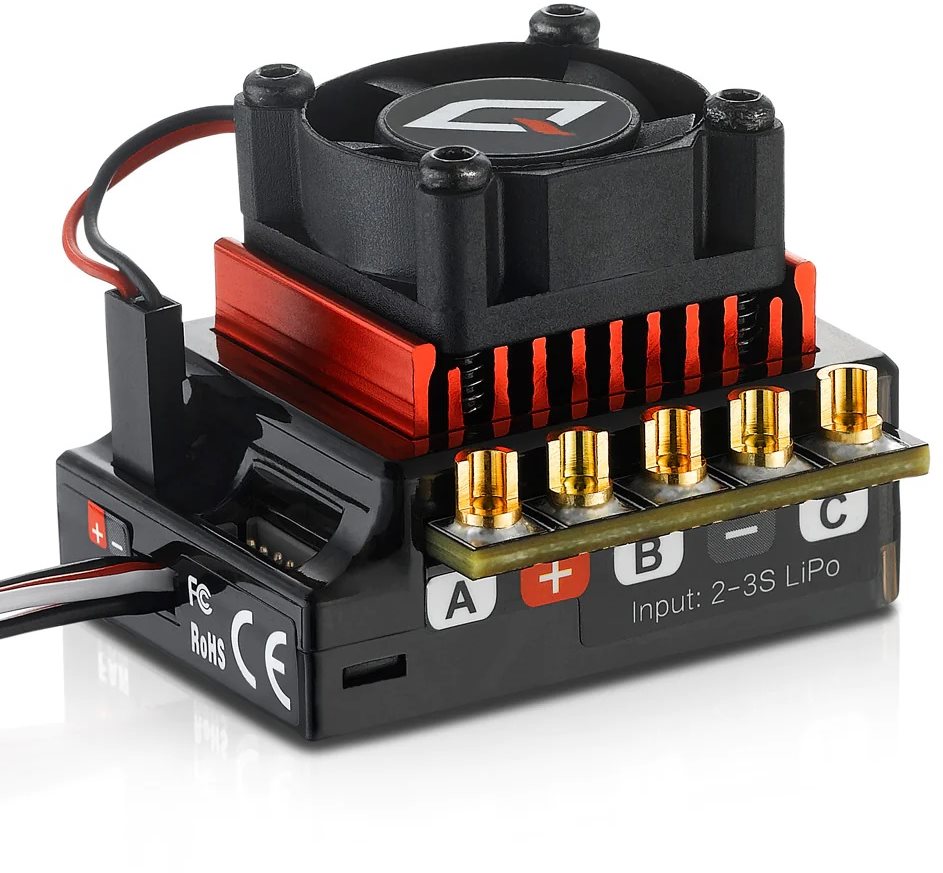

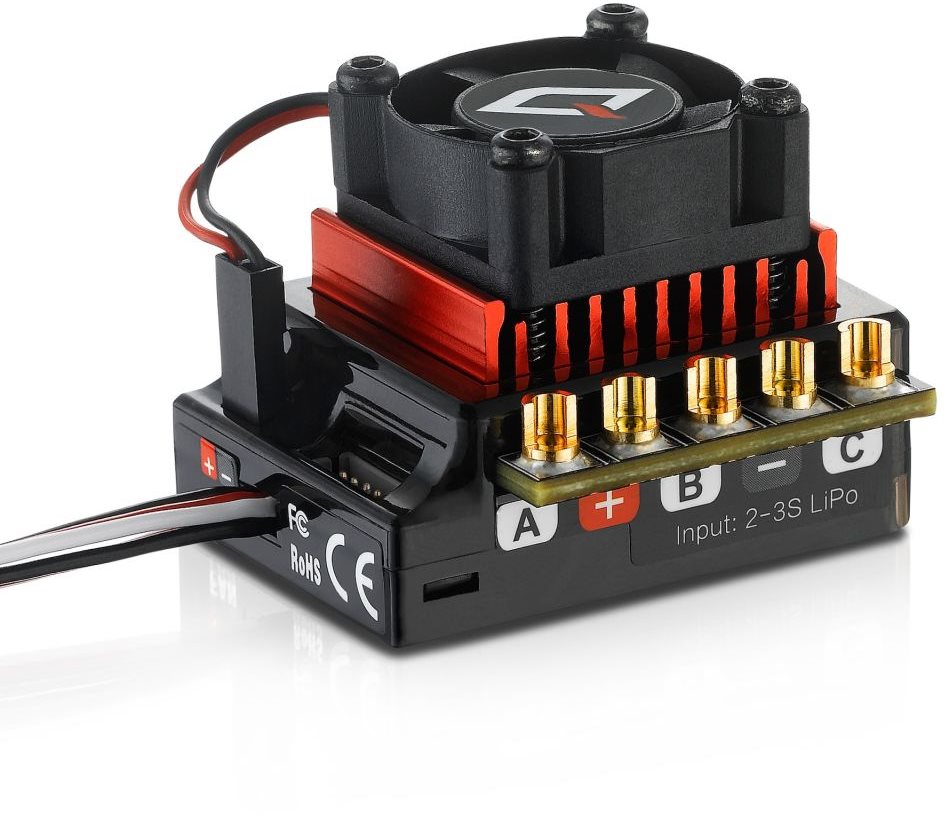

Quicrun 10BL120 Sensored G2 ESC
Note:
The recommended T counts are only applicable with the standard 3650(540) size 2 pole motors and the timing of esc is 0.
This ESC is NOT designed for a racing application.
Features:
- For 1/10, 1/12 Car general use.
- High performance but low price, users can own this reliable ESC at an affordable cost.
- Sensored programmable electric speed controller for a brushless motor.
- Compatible with LCD program box PRO, LED Program Card (purchase separately).
Specifications:
- Cont./Peak Current: 120A / 760A
- Motor Type: Sensored/Sensorless Brushless Motor
- Applications: 1/10 Touring, Buggy, Drift
- Motor Limit: 2S LiPo: >4.5T; 3S LiPo >10.5T 3650 Size Motor
- LiPo Cells: 2-3S LiPo
- BEC Output: 6V/7.4V @ 4A (Switch-mode)
- Cooling Fan: Powered by built-in BEC
- Size/Weight: 44(L) x 36.8(W) x 32.3(H) / 101.5g(W/Wires)
- Programming Port: Throttle Cable
Item Created: 02/26/2024
- HOBBYWING Quicrun 10Bl120 Sensored G2 Esc
