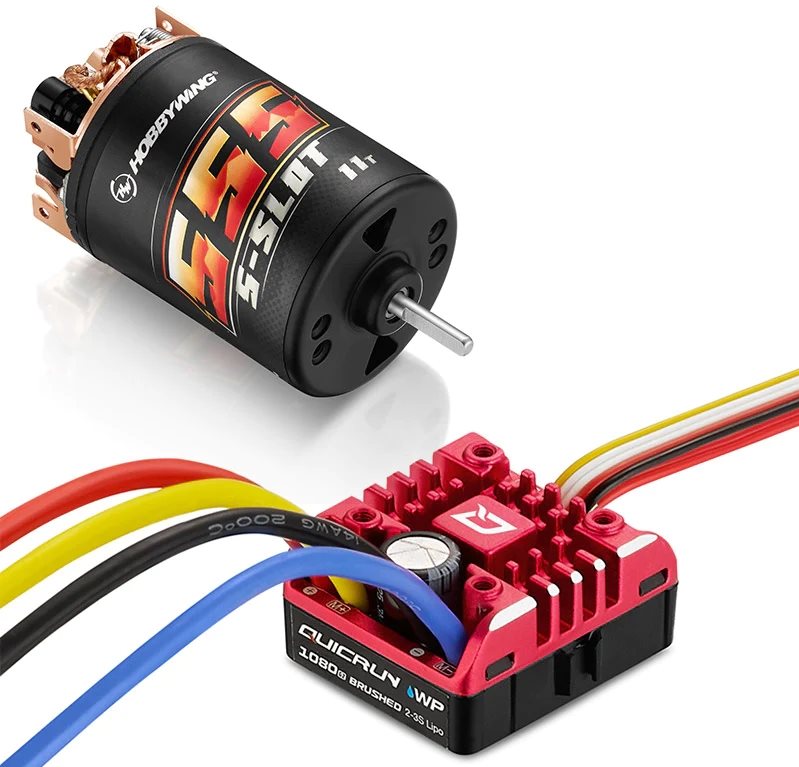

QuicRun 1080 G2 ESC with Brushed 555, 11T Motor Combo
Features:
- Fully Water-proof and dust-proof, suitable for all-weather races.
- Small in size, with a built-in capacitor module.
- Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
- In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
- Real-Time Adjustment of Drag Braking Force.
- 15 programmable parameter items
- PWM Frequency: 1K/2K/4K/8K/16K Adjustable
- Freewheeling (DEO) capability
- Drag brake rate in 9 levels (adjustable)
- Electronic switch
- Aluminum case for great heat dissipation
- Great current endurance capability.
- Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
- Automatic throttle range calibration, easy to use.
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection, and much more
ESC Specifications:
- Brushed ESC: WP 1080 G2
- p/n: 30120202
- Waterproof: Yes
- Dual Mode: No
- Fwd Cont. / Peak Rev Cont. / Peak: 80A / 400A
- Car Applicable: 1/10 Rock Crawler
- Motor Limit: Brushed Motors 540/550 Series 2S LiPo or 5S NiMH, =10T orRPM<[email protected]; 3S LiPo or 9S NiMH, =16T or RPM<[email protected]
- Battery: 2-3S LiPo or 5-9S NiMH
- BEC Output: 6V/7.4V/8.4V @ 4A (switch-mode)
- PWM Frequency: Adjustable 1K/2K/4K/8K/16K
- Wires: 14AWG-200mm w/ XT60 Connector
- Size/ Weight: 37.2(L)* 31.9(W)*18.4(H) (without fan)
- External Program Port: Separate Port Available
- Programming: LED Program card
- Weight*: 70.2g w/ wire and connectors
Motor Specifications:
- Model: QUICRUN Brushed 540
- PN: 30404315
- Slot: 5
- Turns: 11T
- ([email protected]): 17000
- Input Voltage: 10V
- Diameter/ Length(mm): ɸ=36mm(1.42in) L=58.5mm(2.30in)
- Shaft Diameter/ Length (mm): ɸ=3.175mm(0.125in) L=16.5mm(0.65in)
- Applications: 1/10 Crawler / Short course truck / Monster truck
- Weight: 193g
ESC Manual
- HOBBYWING Quicrun 1080 G2 Esc With Brushed 555, 11T Motor Combo
