Hitec Hs-815Bb Mega Sail Control Boat Servo .14Sec/343Oz @ 6.0V

This is in exceptionally effective sail winch servo, with dual ball bearings and
Hitec S type connector.
Connector is compatible with all contemporary receivers and circuitry accessories

SPECIFICATIONS:
Indirect drive motor
Water tight case
Transit time .46 seconds/140°
Torque 231 oz-in

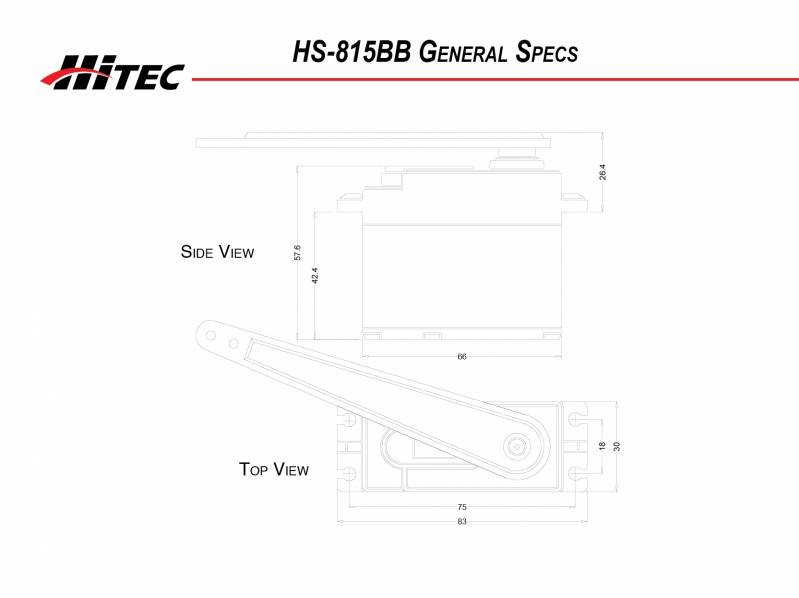

DIMENSIONS:
66x30x56.7mm, 2.59x1.18x2.23" (L,W,H)

INCLUDES:
Servo mounting screws, grommets, and eyelets
1 each of the following servo arms. Large wheel, large X, and large
straight arm.
1 sail arm, 122mm general length, 110mm center of install to outside
hole.
Special Y- harness for use with BEC receivers (see comments)

REMARKS:
This servo takes in 800mAh UNLOADED, Hitec states that it REQUIRES
a minimum of 1200mA receiver battery, 6V (5 cell) is HIGHLY
recommended.
If linking to a BEC receiver, the Rx battery must be plugged in
to one side of the provided Y harness, the servo into the other
side, and after that connected to the receiver. IT WILL NOT WORK IF RUN
WITH A BEC RX CONNECTED IN ANY OTHER WAY!!!!!
Requirement Rx's link as regular

For Sail Arm, order HRCM6362.
For replacement Equipment Set, order HRCM6350.
