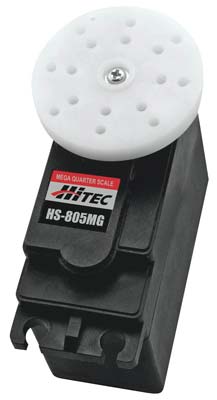

Hitec HS-805MG Metal Gear Analog Servo

    This is the HS-805MG Analog Mega Scale Servo from Hitec.

FEATURES:
Double ball bearings
Resilient metal gears
Sturdy horn and hardware set
Water and dust resistance

CONSISTS OF:
One HS-80MG Mega Scale Servo with Preinstalled Round Servo Horn
One Y-Harness
4 Rubber Grommets
4 Brass Eyelets
4 2x15mm Flanged Button Head Screws
One One-Armed Servo Horn
One X-Shaped Servo Horn

SPECIFICATIONS:
Operating Speed: 0.19sec/60° at 4.8V
0.14sec/60° at 6.0V
Output Torque: 19.8kg-cm (275oz-in) at 4.8V
24.7kg-cm (343oz-in) at 6.0V
Weight: 197g (6.95oz)
Size: 66 x 30 x 57.6mm (2.59" x 1.18" x 2.26")

COMMENTS:
Must be used with at least a 1200mAh NiCd/NiMH Battery (5-6 cells)
Power need to be fed straight to the servo without going through the
B.E.C. regulator
