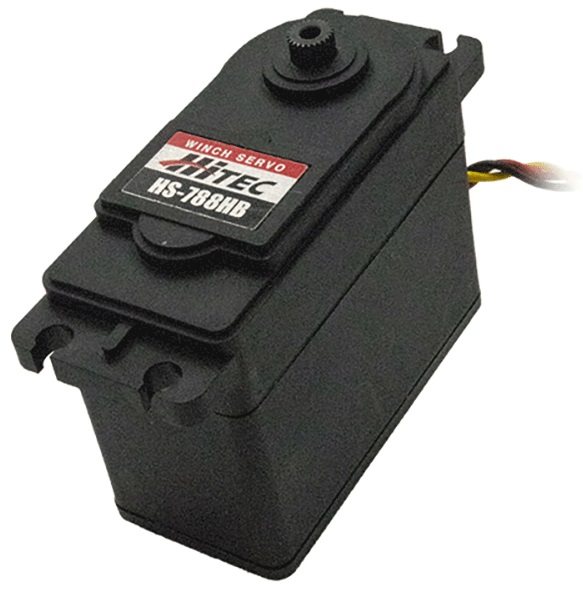

HS-788HB 3.5 Turn Winch HD Resin Gear 25T Analog Boat Servo

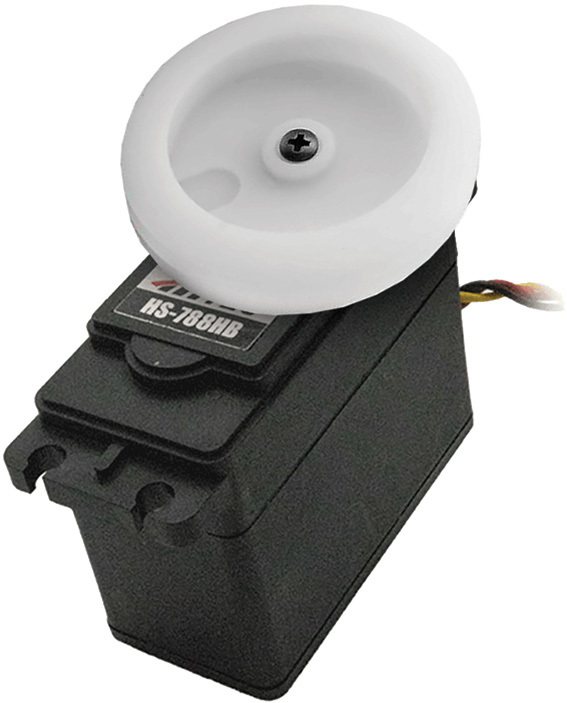

The HS-788HB sail winch servo with its large drum wheel has 3 1/2 revolutions of travel for hauling in even the largest of sails. With its dual ball bearing supported output shaft and 25 tooth spline, the HS-788HB will provide years of reliable service.
Features:
- Large Drum Wheel with 3.5 Revolutions of Travel
- 25-Tooth Output Spline
- Strong Karbonite Gear Train
- Dual Ball Bearing-Supported Output Shaft
- Water and Dust-Resistant Case
Specifications:
- Operating Voltage Range: 3.5 ~ 6.8V
- Voltage: 4.8V / 6.0V
- No Load Speed: 1.68sec/360deg / 1.38sec/360deg
- Stall Torque: 11.0kgf-cm (152.76 oz-in) / 13.2kgf-cm (183.31 oz-in)
- Peak Efficiency Torque: 2.2kgf-cm (30.6 oz-in) / 2.6kgf-cm (36.1 oz-in)
- Standing Current: 8mA / 8mA
- No Load Running Current: 230mA / 250mA
- Stall Current: 1,500mA / 1,800mA
- Deadband: 5us / 5us
- Connector Wire Length: 300mm (11.811 in.)
- Connector Wire Gauge: 22AWG
- Dimensions: 59.0 x 29.0 x 50.0mm (2.323 x 1.142 x 1.969 in.)
- Weight: 110.0g (3.880oz)
- Motor Type: Cored Metal Brush
- Bearing Type: 2 Ball Bearing
- Case Material: Engineering Plastic
- Gear Material: 4 Heavy Duty Gears
- Horn Gear Spline: 25T (6.0)
- IP-Rating: IP54
- Servo Amplifier Type: Analog Controller
