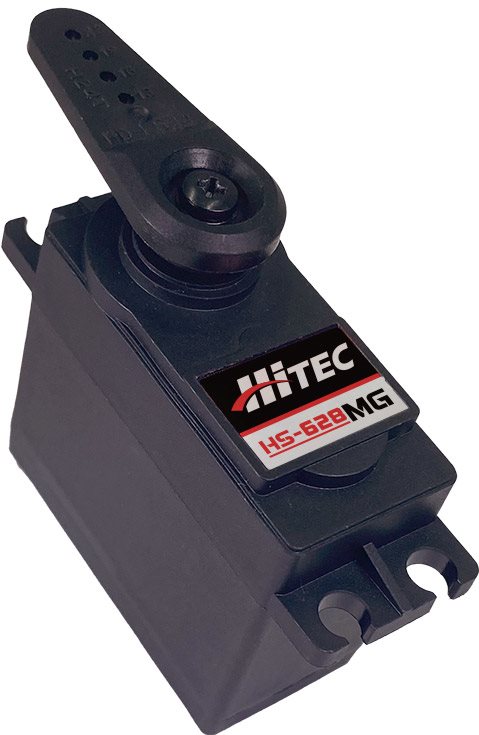

HS-628MG High Speed Metal Gear 25T Analog Sport Servo
Featuring the industry standard 25-tooth output spline with 3mm hex screw, and metal gears for maximum durability, Hitec's HS-628MG is the 25-tooth version of their powerful high-speed HS-625MG and the perfect choice for those applications requiring a fast and strong standard size servo. Utilizing their M/P and metal gear train technology, the HS-628MG is a fantastic sport servo for larger planes and 1/10th scale sport vehicles.
Features:
- Affordable High Speed Metal Gear Servo
- Cored Metal Brush Motor
- Heavy Duty Metal Gear Train
- Revolutionary Metal/Plastic First Gear (MP Gear)
- Dual Ball Bearing-Supported Output Shaft
Specifications:
- Operating Voltage Range: 3.5 ~ 6.8V
- Voltage: 4.8V / 6.0V
- No Load Speed: 0.18sec/60deg / 0.15sec/60deg
- Stall Torque: 5.5kgf-cm (76.38 oz-in) / 6.8kgf-cm (94.43 oz-in)
- Peak Efficiency Torque: 1.1kgf-cm (15.3 oz-in) / 1.9kgf-cm (19.4 oz-in)
- Standing Current: 9mA / 9mA
- No Load Running Current: 400mA / 500mA
- Deadband: 8us / 8us
- Continuous Rotation: n / a
- Connector Wire Length: 300mm (11.811 in.)
- Connector Wire Gauge: 22AWG
- Dimensions: 40.6 x 19.8 x 37.8mm (1.598 x 0.780 x 1.488 in.)
- Weight: 55.2g (1.947oz)
- Motor Type: Cored Metal Brush
- Bearing Type: 2 Ball Bearing
- Case Material: Engineering Plastic
- Gear Material: 1 Metal+Plastic & 3 Metal Gears
- Horn Gear Spline: 25T (6.0)
- IP-Rating: IP4X
- Servo Amplifier Type: Analog Controller
