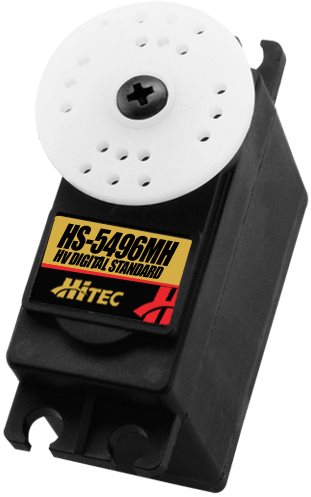

Hitec Hs-5496Mh Metal Gear High Voltage Digital Servo .15Sec/104Oz @ 7 (Hitec 35496S | HRC35496S)

Model: Hitec 35496S
Dist. #: HRCM5496   SKU: HRC35496S

Be the first to review this product. (Write Review)

Out of stock

List Price:  $55.95
Price:  $39.99
You Save:  $15.96 (29%)

This item will earn you 40 reward point(s).
40 points = $0.80 off your next order. Learn More

Updated on Sep 28, 2025 10:49:28 PM

HS-5496MH HV MG Digital Servo...
This is the HS-5496MH High Torque, High Volt Metal Equipment Servo from Hitec.

FEATURES:
Designed to be powered from a 2-cell 7.4V LiPo battery for additional
    speed and power
Suitable for 1/10 to 1/8 scale on- and off-road lorries, bigger sport
    helis and big scale aerobatic airplane up to 25%
Programmable functions consist of; Dead Band Width, Rotation Direction,
    Rotation Speed, End Points/Neutral Points, Fail Safe On/Off, Fail
    Safe Point, (needs Hitec developer HFP20, HPP20 or
    HPP21 HRCM4420)
Heavy duty metal equipment train (MK first equipment)

INCLUDES:
HS-5696MH High Torque, High Volt Metal Equipment Servo with Adapter
    0.94" (24mm) round horn, 1.8" (45mm) round horn, 1.7 (44mm) 4-
    point horn, 0.98" (25mm) single arm horn, 2.3" (59mm) double arm
    horn, 0.87" (22mm) mounting hardware and guideline sheet

REQUIRES:
Installing in design and linking linkage

SPECS:
Speed: 6.0V, 0.20 sec/60°
7.4V, 0.17 sec/60°
Torque: 6.0V, 88 oz-in (6.0 kg-cm)
7.4V, 99 oz-in (7.2 kg-cm)
Size: 1.57 x 0.78 x 1.49" (39.8 x 19.8 x 38mm)
Weight: 1.84oz (52g)
