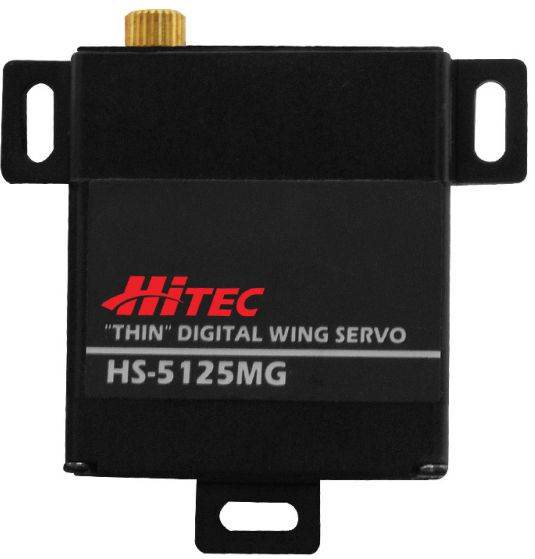

Hitec Hs-5125Mg Wing Servo Metal Gear Ball Bearing Digital Servo .13Se

This the Hitec Super Thin Digital Wing servo with a
Universal Futaba J, Hitec S, JR and Airtronics Z Connector.
These servos are utilized in restricted areas where a
thin or low profile servo may be required.

FEATURES:
Digital and MOSFET Amp
Indirect Drive Potentiometer for longer life
Dual ball bearing
Gold plate adapter
Narrow dead band width and high standing torque
Strong 4 metal equipments and one plastic equipment
One metal servo horn
Plastic hardware servo horns and screws
Hitec "S" adapter
Instruction sheet

CONSISTS OF:
One digital servo
Hardware

NEEDS:
Hitec receivers

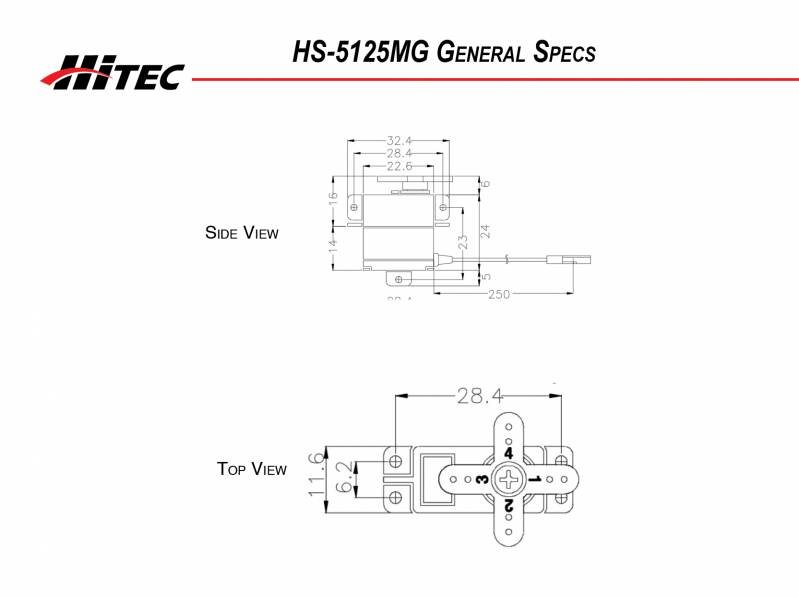

SPECS:
Length: 1.18"(30mm)
Width: 1.33"(34mm)
Height: .39" (10mm
Weight: 24g (.84oz)
Output speed: .17 sec 60 degrees at 4.8V
Output torque: 41.66 oz-in (3 kg-cm) at 4.8V
Pulse information: 3-5V peak to peak square wave pulse. Pulse period
is from 0.9mS to 2.1mS with 1.5mS as center.
Pulse revitalizes at 50Hz (20mS)
Voltage range: 4.8-6V
Wire color: Black is Ground, Red is center, Power, 3rd wire is
Signal
Instructions rotation: Hitec servos kip down a clockwise direction

REMARKS:
Servo will work in gliders or wings, or any thin airplane wing.
