Hitec HS-430BH Std Deluxe BB HV Servo

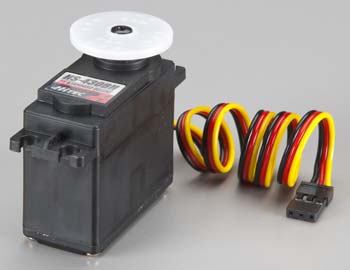

This is the Hitec HS-430BH Requirement Deluxe High Voltage Servo.

FEATURES:
For .20-.60 size planes, all electrical and radiance powered 30 class
    helicopters, and steering and throttle in automobiles, trucks and boats
6-cell NiMH and 2-cell LiPo compatible
Double ball bearing geared up
Direct potentiometer drive

CONSISTS OF:
Hitec HS-430BH Servo, 0.92" (23.5mm) Round Horn, 1.2" (30mm) 4-Point
    Horn, 1.7" (43mm) 4-Point Horn, 1.2" (32mm) Double Arm Horn, 1.2"
    (30.5mm) Single Arm Horn and Mounting Hardware

REQUIRES:
Installing in design and connecting linkage

SPECIFICATIONS:
6V 7.4V
Running Speed: 0.16 sec/60° 0.14 sec/60°
Output Torque: 56.93oz-in (4.1kg-cm) 69.43oz-in (5.0kg-cm)
Weight: 1.6oz (45.5g)
Size: 1.59 x 0.77 x 1.44" (40.6 x 19.8 x 36.6mm)
