Futaba Hps-Ht700 S.Bus2 High-Voltage Low-Profile Heli Tail Servo (Futaba 01102378-3 | FUT01102378-3)

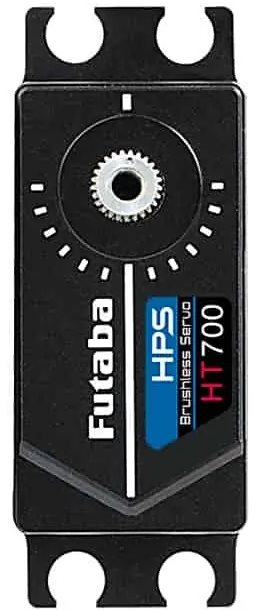

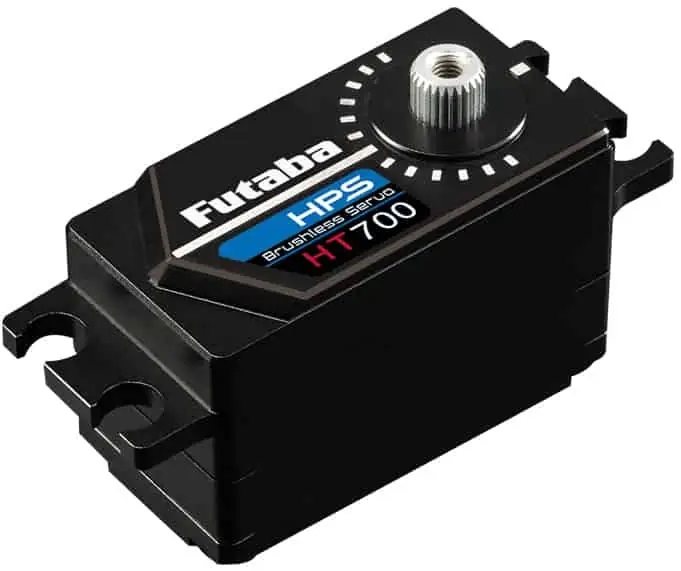

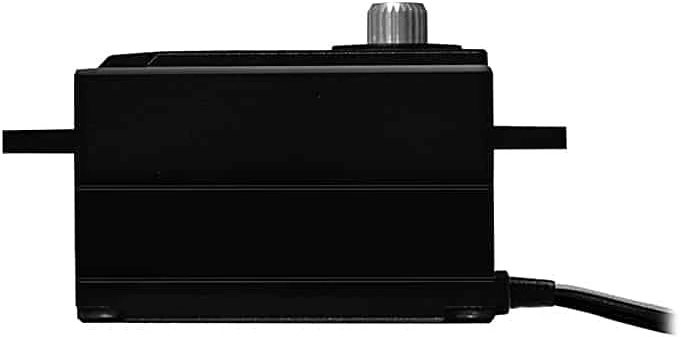

Futaba Hps-Ht700 S.Bus2 High-Voltage Low-Profile Heli Tail Servo

Zoom

Zoom

Zoom

Model: Futaba 01102378-3
Dist. #: FUT01102378-3   SKU: FUT01102378-3

Be the first to review this product. (Write Review)

Out of stock

Price:  $269.99

This item will earn you 270 reward point(s).
270 points = $5.40 off your next order. Learn More
Updated on Sep 29, 2025 05:59:06 AM

Hps-Ht700 S.Bus2 High-Voltage Low-Profile Heli Tail Servo...
HPS-HT700 S.Bus2 High-Voltage Low-Profile Heli Tail Servo

High Performance Tail Servo with Brushless Motor (1520uS/760uS switchable)

NO DRY BATTERY USE

Functions:
  • Appropriate for RC helicopters 500-800 3D/F3C
  • Programmable/HV Brushless Servo.
  • Custom New high power Brushless Motor.
  • Supports 760uS (Factory Default, able to be set to 1520uS w/ GPB-1 v4.3 .)
  • Programmable and compatible with S.Bus and S.Bus2 systems.
  • Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
  • Upper/middle/bottom: Aluminum Case

Specifications:
  • Speed: 0.045sec/60deg(7.4V); 0.05sec/60deg(6.6V)
  • Torque: 9.6kgf/cm(7.4V); 8.6kgf/cm(6.6V) 133.3ozf/in(7.4V); 119.4ozf/in(6.6V)
  • Dimensions/Weight: 40.5x21.0x26.2mm/54g (1.59x0.83x1.03in)
  • Rated Voltage: DC 6.0V-7.4V
  • Operating Voltage: DC 4.8-8.4V
  • Hobby: Helicopter
  • Functions: S.Bus, S.Bus2, Brushless, HV, Metal Case
  • Product: Servo
  • Servo Size: Low Profile


Item Produced: 07/17/2023
