FMS ASW-17 EP Glider PNP 2500

.mediaFeature [cushioning:2px 0;]
.safeTech [background:#6f92a5; float:left; padding:10px; margin:10px; font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



Features

Two piece wing

Practical Flaps

Made of highly long lasting EPO

Fold away high efficiency propeller

Snap together assembly, no glue essential





Overview
True to the FMS spirit, no information was overlooked in the design of the ASW-17. The FMS engineers made 4 costly tooling modifications simply to micro-adjust the airfoil for perfect efficiency.

The wing, vertical and horizontal stabilizers are created with a snap-together structure. With an easy snap, the surfaces attach to the fuselage with determine accuracy- no screws or glue essential! Develop the aircraft in as low as 3 minutes!
Like the 3000mm Fox, the ASW-17 has a pre-installed carbon fiber spar that ensures wing rigidity in high-G maneuvers.
To accomplish the very same dihedral as the real aircraft, the ASW-17 was created with a specialized CNC aluminum spar joiner- permitting the aircraft to keep its wing geometry throughout demanding flight routines.

Performance-wise, a premium Hobbywing 40A ESC paired with a Predator 3541-750KV motor supplies ample power with a 4S pack to perform most aerobatic maneuvers.

If efficiency, stability and aerobatic abilities are what you look for in a glider, look no more than the FMS 2500mm ASW-17!





Required to Total

14.8V 2200-2600mAh 35C Battery

6-Channel Radio

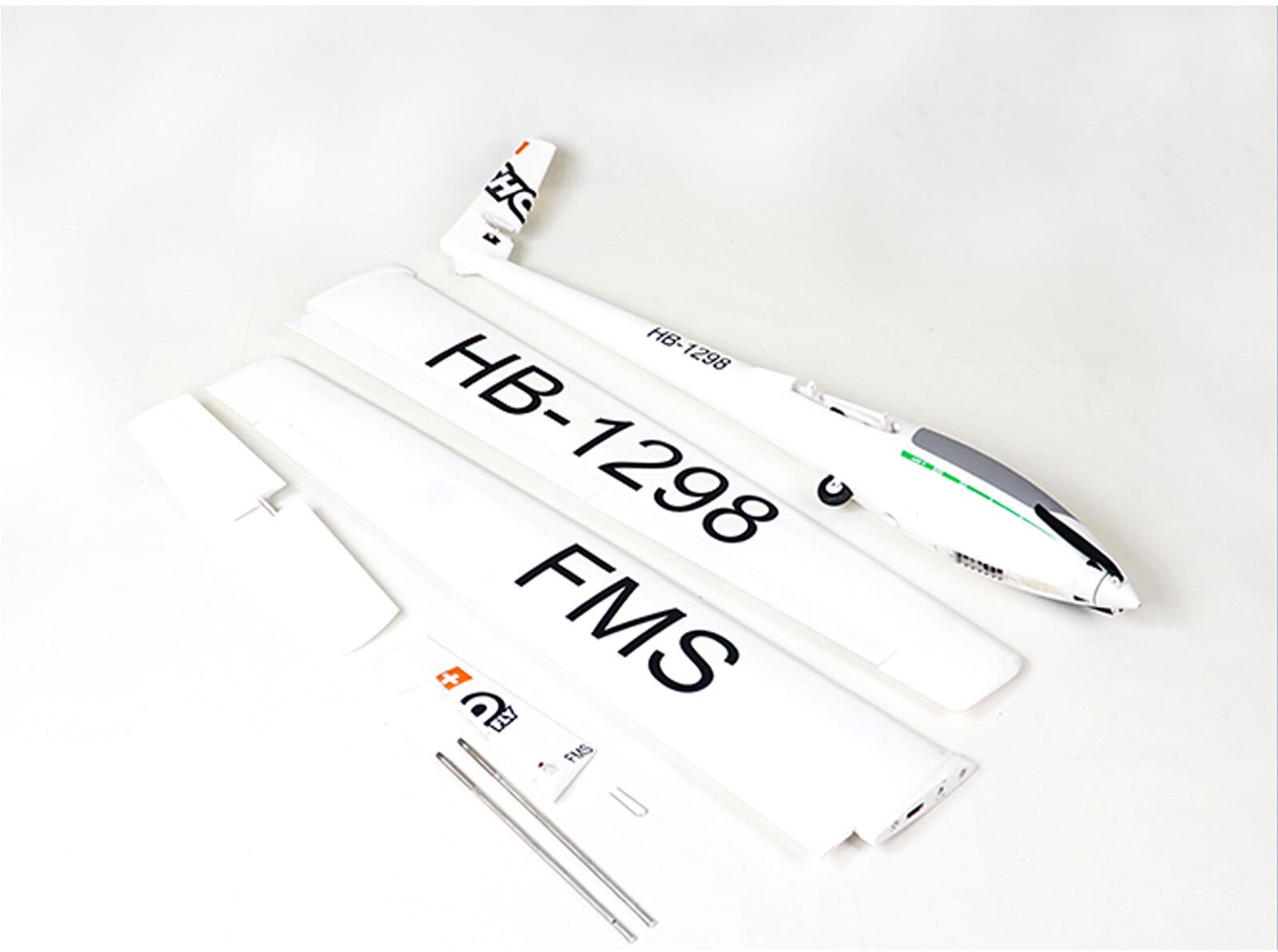

What remains in the Box?

(1) ASW-17 EP Glider PNP

(1) Hobbywing 40A ESC

(1) Predator 3541-750KV motor

(1) Product Handbook









Build the aircraft in minutes!
The wing, vertical and horizontal stabilizers are created with a snap-together structure. With an easy snap, the surfaces attach to the fuselage with determine accuracy. No screws or glue essential!








High strength wing structure
Like the 300mm Fox, the ASW-17 has a pre-installed Carbon-fiber spar that ensures wing rigidity in high-G maneuvers.




Metal spar connectors
Metal spar connectors embedded within the wing ensures scale and functional wing dihedral.








Spar joiner
The ASW-17 was created with specialized CNC aluminum spar joiner — permitting the aircraft to keep its wing geometry throughout demanding flight routines.




Aileron and Flap Structure
Strengthened aileron and flap structure for accuracy flight qualities.








Latch and Canopy
Press-to-release canopy lock and a textured canopy.




Motor, ESC and Servo
Predator 3541-750KV motor, a premium Hobbywing 40A ESc and 17g servos.




Requirements

Approximate Assembly Time: Less than 1 Hour

Approximate Flight Time: 10 minutes

CG (Center of Gravity): 2.7 - 3.1" (70 - 80mm) back from leading edge of wing measured at the fuselage

Battery charger: Offered individually

Completion Level: Plug-N-Play

Flaps: Yes

Landing Equipment: Monowheel with tail skid

Product: EPO

Minimum Required Radio: 6-channel

Minimum Speed Control: 40A included with XT-60 battery connector

Motor Size: 3541-750Kv

Power Type: Electric

Product Length: 54.7 in (139mm)

Propeller Size: 13.5x6 fold away

Recommended Motor Battery: 4S LiPo 14.8V 35C 2200-2600mAh w/XT60 connector (sold individually)

Technology : AS3X

Transmitter Variety: Complete

Trim Plan Colors: White with black lettering

Wing Area: 779.5 sq in (50.3 sq dm)

Wing Loading: 0.09 oz sq/in (45.7 g sq/dm)

Wingspan: 98.4 in (2500mm)
