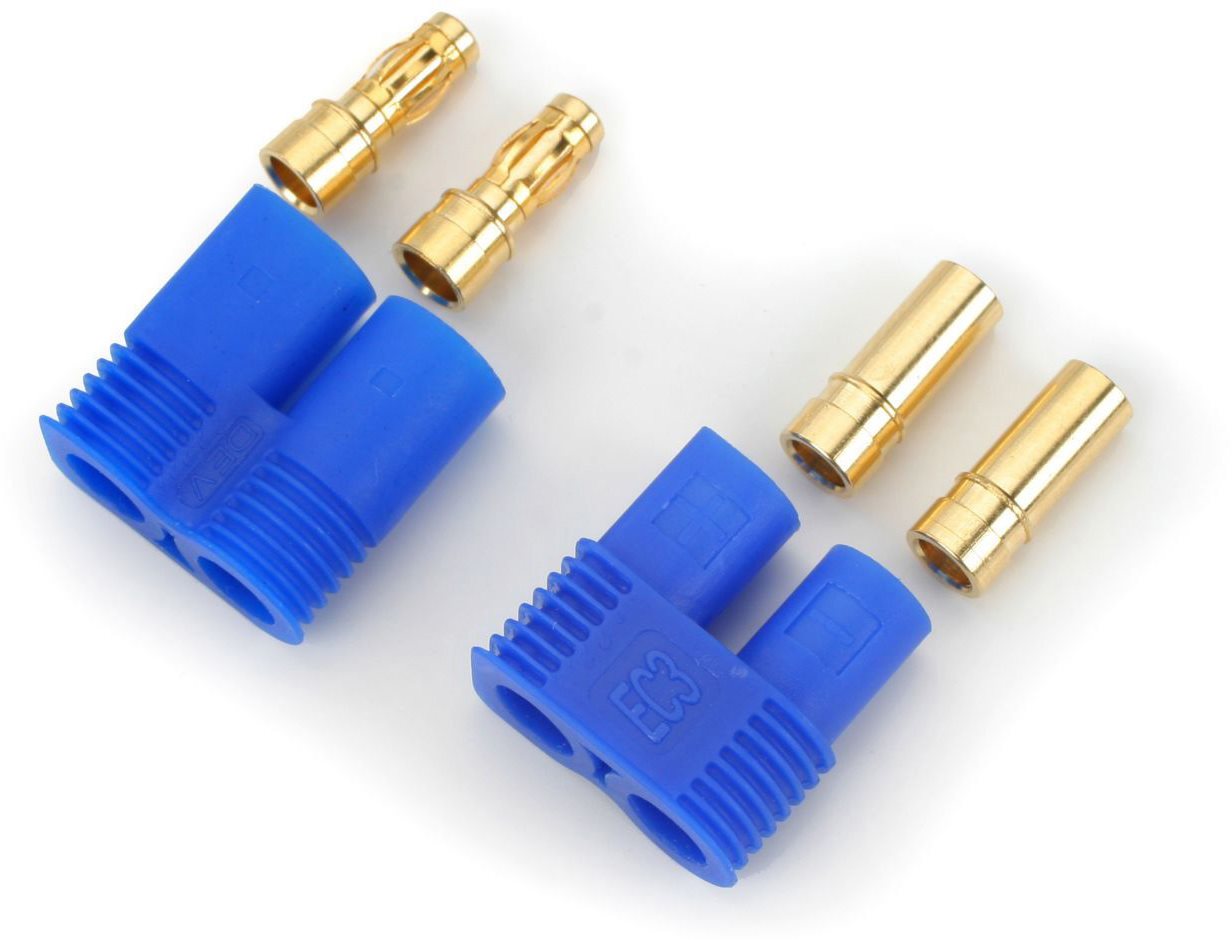

Dynamite EC3 Device & Battery Connector

This is the Dynamite EC3 Device & Battery Port.

The below item additionally sets really well with the item being discussed.

Lipo 1250mAh 22.2V 45C - T-REX 450L Dominator

Pulse Ultra batteries bring a brand-new level of power to the RC scene, based upon cutting edge lithium polymer technology, and taking advantage of all the technological gains within this remarkable industry. Pulse is about power & performance at an expense that can be afforded. No longer does premium power come at a premium rate – Pulse provides all of it in one pulse speeding up punch.

Delivering intense power for your RC applications, Pulse batteries deliver everything you could think of at a price never ever seen. Contributing to the addicting power of Pulse Ultra batteries is the 5C charge rate, allowing you to charge in fast succession, leaving previous 1C LiPo batteries back at the charger as you rip through the skies above.

Ranging from 35C, 45C, and mind blowing 65C discharge rates, Pulse has you covered in every method possible, providing mind numbing power levels that will take your flight to an entirely new level of extreme. If you're looking for power, you just discovered it. Pulse provides intense power for intense pilots, when it pertains to value, Pulse just cannot be beat.
Feel the pulse, and get hold of a brand-new Pulse Ultra Battery for your 3D demands!

Specifications:
Voltage: 22.2V
Cell Count: 6S
Capability: 1250mAh
Discharge Rate: 45C
Charge Rate: 5C
Measurements: 106mm x 34mm x 34mm (LxWxH)
Weight: 262g
Balance Tap: JST-XH

Item Note:
Pulse batteries do not featured power leads, and will need completion user to solder their own style of battery connector for the battery to be correctly utilized. Pulse batteries have bare leads covered with heat shrink security, and are prepared for the connector of option to be soldered to the positive/negative leads.

Pulse Info:

www.pulsebattery.com

Pulse Frequently Asked Question:

Limited Guarantee

Pulse Batteries feature a warranty against any faulty batteries we make, and guarantee all maker associated defects or flaws. Pulse guarantees that packs are correctly stabilized, however please make sure to examine your Pulse battery upon arrival for any faults, such as low voltage, cell imbalances, solder joints, and other such defect. If any such flaws occur, Pulse will make sure to cover all insurance claims within a 90 day period; all insurance claims after the 90 day period of purchase will not go through guarantee, so please make sure to thoroughly check your new Pulse battery upon arrival.

In terms of guarantee, if any guarantee associated concerns occur, or item flaws are seen, please call the supplier you purchased your Pulse battery from, as the supplier will handle guarantee associated matters.

Pulse Batteries – Your Concerns End Here.

Have a question regarding Pulse batteries? We have actually assembled a spread of numerous questions that are asked about Lithium Polymer batteries, in addition to Pulse batteries as well. Obviously, if you don't discover your answer here, do not hesitate to drop us a line, as we are always delighted to assist.



Q: Exactly what is a "C" score, and what does it suggest to me?

A: "C" ratings are classified in (2) locations – discharge rate, and charge rate. Pulse Batteries are ranked at 35C, 45C, and 65C in discharge rates – this is based upon just how much amperage can be provided, or in simpler terms, just how much power your battery needs to offer. The greater the "C" score, the more power the battery can offer out.

As for the charge rate, Pulse batteries are ranked at 5C, which implies they can be charged 5 times faster than a conventional 1C Lithium Polymer battery. Simply put, Pulse batteries can be charged at extremely high rates of power for fast charge times, getting rid of the wait time of standard batteries that are restricted to 1C.

Q: Exactly what is mah, or capacity, in terms of Pulse batteries?

A: "Mah" brief for milliamp hours, is a reading of capacity, or just how much energy the battery is able to store. Mah, or Capability, straight relates to flight time, and indirectly relates to power output, as greater capacity batteries also have greater amperage to deliver, when asked to do so.

Q: How long does it take a Pulse battery to charge?

A: Considering Pulse batteries are ranked at a 5C charge rate, if your charger can deliver the necessary amperage to charge at 5C, charge times can be as low as 15 minutes, relying on the charger being used.

Q: How can I figure out the number of amps my Pulse battery can be charged at?

A: To figure out the number of amps you can securely charge a Pulse battery, a little math remains in order. We will utilize a simple formula to figure out charge rates - divide the "mah" of the battery by 1,000 (let's say a 2200mah battery), which pertains to 2200 / 1,000 = 2.2. Now, increase it against the "charge" score of the battery, which in this case is 5C – 2.2 x 5 = 11. So, if we have a 2200mah 5C battery (2200 divided by 1,000 = 2.2), we have 2.2 as our base number, which we then increase against the charge score of "5C" which provides us a variety of 11 – (2.2 x 5 = 11). Exactly what this implies is that at a 5C score, a 2200mah Pulse battery can being charged at 11.0A amps of power.
