Overview

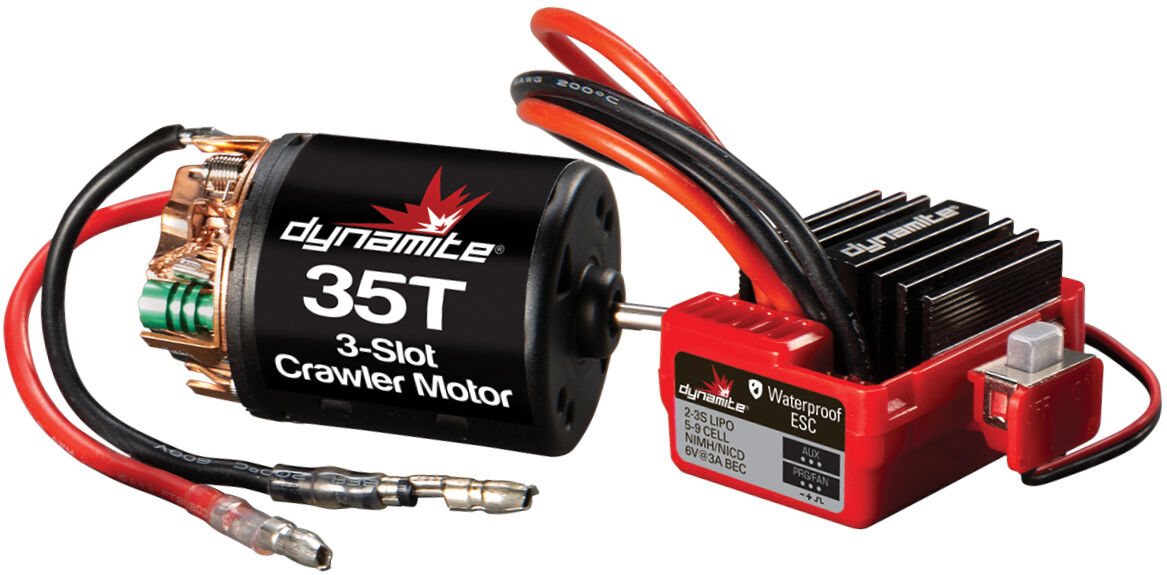

This Dynamite® brushed spider motor/ESC combination offers cost delicate lovers the apple-pie order for their spiders. In addition, the system is an excellent conclusion item for both kits and rollers. The combination consists of an effective, rebuildable 540 size 35 turn motor and a waterproof, NiMH/LiPo suitable, brushed ESC using forward/brake/reverse, forward/brake and spider drive modes. In addition, it features "On the Fly" adjustable drag brakes with specific 3 channel radios. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your present non-LiPo, non-waterproof, or minimal motor spec ESC. As with all Dynamite power systems, motors and ESC's are available separately.



Specifications

Adjustable Timing: Yes

Battery Adapter: IC3

Bearings or Bushings: Rubber sealed ball bearings

BEC: Yes

BEC Continous Current: 6V/3A

BEC Type: Shared between receiver, auxillary light ioutput and cooling fan

BEC Voltage: 6V

Brakes: Electronic

Cells: 2S - 3S LiPo, 6 - 9 cell NiMH

Adapter Type: 3.5mm Tamiya style bullet

Forward: Yes

Height: ESC 0.71" (18mm)

Input Voltage: 7.2 - 11.1V

Length: ESC 1.40" (35.6mm)

Motor Adapter: 3.5mm Bullet

Motor Type: Brushed, Brushed 3-slot rotor, open endbell for 1:10 scale rock spiders

Overall Size: 1.4" (36mm)

Overall Length: 2.1" (53mm)

Reverse: Yes

Shaft Size: 1/8" (3.2mm)

Size: Motor 2.1 x 1.4" (53 x 36mm)

Turns: 35T

Type: 1/10 scale spider

Weight: 6oz (169g), ESC 1.41oz (40g) with wires

Width: ESC 1.34" (24mm)
