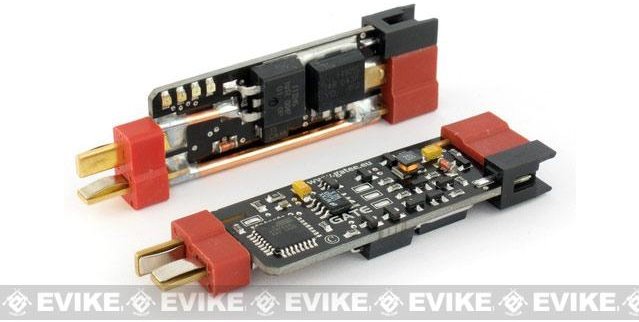

Cybergun GATE MERF 3.2 Burst Advanced MOSFET Unit (Model: Retail)

Active Braking:(Improved mode) Stops the motor as soon as the switch is launched, prevents spring compression or additional shots after the shot in semi-auto mode
Protections for Li-Poly/LiFePO4/Li-Po/Li-ion/Li-Fe/NiCd batteries; short-circuit defense; over temperature defense; get rid of electric arcing(Improved mode just); Gets rid of power loss and electric arc damage from mechanical switch
Setup can be made with included programs button or AEG trigger switch depending on running mode
MOSFET integrated circuit for greater performance and faster trigger response(enhanced mode); Rate Of Fire Control: Smart Trigger allows rate of fire control from 30%~100%. The first shot in full-auto or burst is always 100% ROF for the quick trigger response
Appropriate for the majority of AEGs and replace mechanical trigger switch; Suitable with the majority of AEG motors and battery packs from 3.2V to 15V
3-Round Burst Shooting Mode: Permits basic SAFE/SEMI/AUTO shooting modes to be converted into SAFE/SEMI/BURST (simple/enhanced mode) or SAFE/BURST/AUTO(enhanced mode); trigger can be launched early in Burst mode to do much shorter bursts
Electronic resettable fuse, self-reset after the trigger is launched for the ease of usage
CLICK ON THIS LINK for Guideline Manuals

Eviction MERF 3.2 Mosfet System is the Third generation of airsoft Mosfets from Gate. This system allows for increased trigger response time, loss-less rate of fire modification, adjustable 3-round burst mode, active motor breaking, and safeguards Batteries. This Mosfet is able to manage up to 15 volts, has 10 various functions, and run in 2 modes: Improved mode and Simple mode.(1) Improved mode. will require you to do some transmission work and soldering but will allow you to take full advantage of the Functions of this awesome Mosfet.(2) Simple mode. No modification to your AEG is needed simply plug and play, but will not stop Trigger contact Arcing.This Mosfet is compatible with the majority of AEG's, consisting of upgraded AEG's.

Compatibility: For the majority of gearbox and AEG platform.
Dimensions: 70 x 20 x 10 mm
Optimum constant current: 35A ( 50A for 3 min )
Stand-by existing: 0.15mA
Resistance: 2.4 mOhm
Weight: 15g
Operating modes: (a)Simple mode (b)Improved mode
Manufacture: GATE / Poland

MOSFET: It gets rid of any loss of energy which occurs while mechanical contacts touch each other. It also makes certain they won't burn unavoidably - the average life of mechanical contacts is 1 year. Thanks to this electronic circuit the battery energy is not lost while burning contacts but directed straight to the motor. In this way we grow rate of fire which leads to quicker reaction of the trigger.

Active Breaking: The motor and gears at work collect in the kinetic energy. This energy depends primarily on their speed. The optimum speed is reached after 4 shots. For this factor when you launch the trigger the motor will not stop instantly - the energy collected in it, depending on the quantity allows on few additional shoots.

1. In the sniper rifles, and throughout the shooting on SEMI, the brake will not allow to compression spring after the shot. The piston will always stop at the front position, so that will increase transmission life-span.
2. 2. To increase of realism. After releasing the trigger in genuine weapons are not fired additional bullets, as occurs in AEG reproductions. We do not waste ammunition.

Electronic Fuse:
SCP Short Circuit Security In the case of short-circuit setups, in milliseconds the system detaches the battery. This is necessary for the defense of the Li-Poly. Shorting Li-Poly battery can cause long-term damage, damage or even explosion of cells!
OTP Over Temperature Security Integrated thermometer measures the temperature of the system. If it surpasses an important worth, the system shuts down to prevent its destruction.
UVP Under Voltage Security Protects rechargeable Li-Ion: Li-Poly / LiFePO4 and NiCd against extreme discharge.
The fuse is reset instantly after the trigger is launched. After another of his press, in milliseconds, carries out a series of measurements, which determine whether the battery can be safely linked to the replica.

Smart Trigger: Allows for faster trigger response. It complies with the ROF Control system. During the first shot Smart Trigger sets ROF Control to 100%. After the first shot it is set of pre-programmed worth, eg 30%. As a result, the first shot is fired with full rate of fire, and next shots with a lowered ROF. The best effect can be attained using a battery with greater voltage than the requirement. Then we will get faster trigger response at the exact same rate of fire as in case of basic battery

About GATESince 2009, GATE business has been developing and producing the most ingenious AEG Control Systems and MOSFETs. GATE has facilities located in Cracow, Poland with items successfully entered worldwide markets and are being sold in more than 30 nations.
