Model: Castle Creations 060008300
Dist. #: CSE060008300
SKU: CSE060008300
Be the first to review this product. (Write Review)
Out of stock
|
List Price:
|
$335.95
|
|
Price:
|
$304.95
|
|
You Save:
|
$31 (9%)
|
|
|
|
|
This item will earn you 305 reward point(s).
305 points = $6.10 off your next order. Learn More
|
Updated on Sep 21, 2025 11:46:15 PM

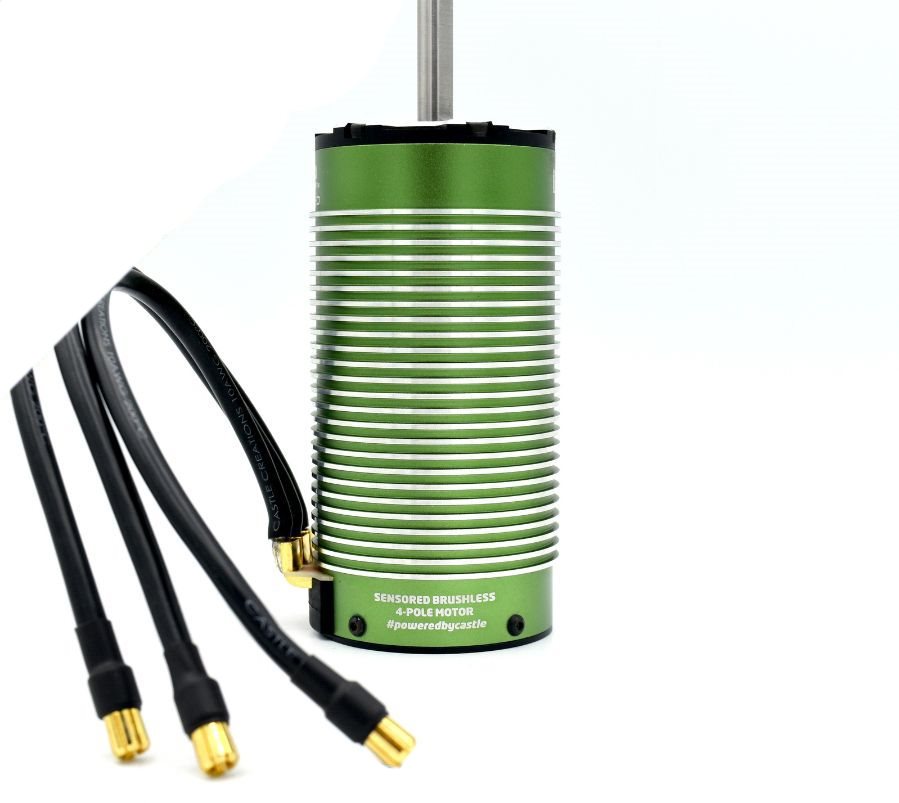

4-Pole Sensored Brushless Motor, 2028-800KV with 10AWG, 6.5mm Bullets
You might be familiar with the brute 1:5 scale version of the 2028-800Kv (8AWG wire and 8mm bullets) that has overpowered large scale RC for years. Now Casle Creations are offering their 1:6 scale version (paired with 010-0165-01 MAMBA MONSTER X 8S, 33.6V ESC W/2028-800KV SENSORED MOTOR, click here for details), tailored with presoldered 6.5mm bullet connections and 10AWG wire!
The Castle 2028 Extreme 800KV motor has an IMPROVED 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT. If you need LARGE-SCALE POWER for LARGE-SCALE VEHICLES the BRUSHLESS SENSORED 2028-800KV motor will no doubt hold up to the heavy throttle and extended usage that 1:6th scale vehicles encounter. Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode.
High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions. Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible. Their proprietary winding techniques allow them to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor. Dual sensor ports to ensure optimal installation in your large-scale vehicle. Updated modern and sleek design; looks as cool as it performs.
Specifications:
- Input Voltage Range: 8S MAX (with 10 AWG and 6.5mm Bullets)
- Kv: 800
- Max. RPM: 45,000
- Size: Length: 4.4" (112.7mm); Diameter: 2.2" (56.3mm)
- Weight (w/wires): 44 oz./1.25kg
- Shaft Size: Length: 30mm; Diameter: 8mm
- Mounting Hole Specifications: 4mm @ 30mm
- Cooling Fan: Available, but not included. See 011-0153-00 here.
- Connectors: 6.5mm male connectors, 250mm sensor wire and 10AWG wires
- Items Needed for Operation: Compatible Electronic Speed Control (ESC)
- Application Guidelines: Perfect upgrade for any 1:6 scale vehicles weighing up to 25 lbs and up to 8s LiPo.
- Recommended ESC(s): Mamba Monster X 8S
- Max. Recommended Vehicle Weight: 25 lbs
- Tech Notes: Running modes: Sensorless and Sensored
Item Created: 11/08/2022
