Castle Creations Motor 4-Pole Sensored BL 1410-3800KV (5mm)

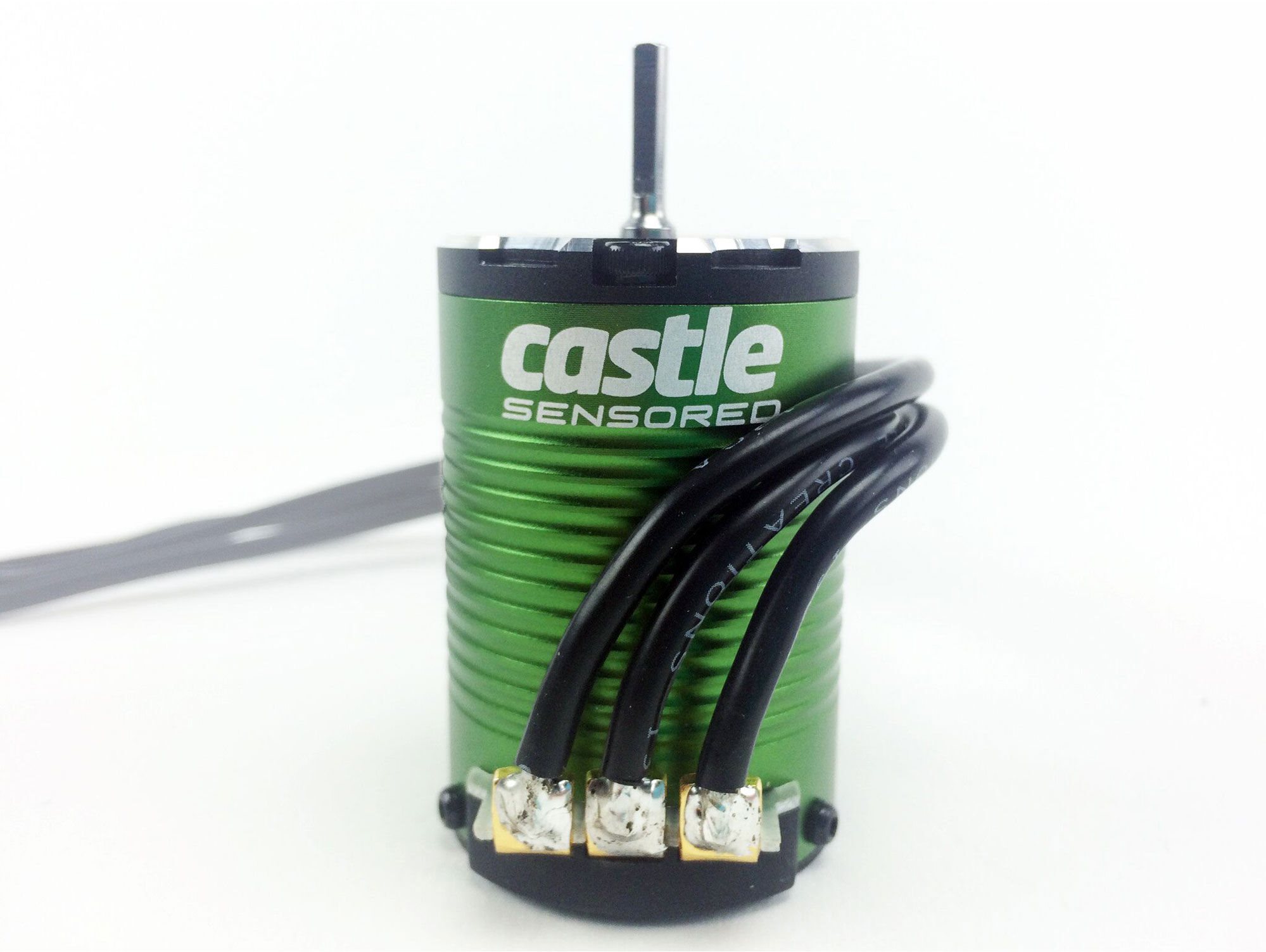

This is the Castle 1410 1Y 3800Kv 4-Pole Sensored Brushless Motor
with 0.197" (5mm) Diameter Shaft.

FEATURES:
Ideal for 1/10 scale 2WD and 4WD brief course trucks as much as 6.5lbs
    utilizing a TWO LiPo, and 1/10 scale buggies and stadium trucks as much as
    4lbs utilizing a 2-3S LiPo
High-strength 180°C grade neodymium sintered magnets with high-
    strength wrap
High-temperature, high purity copper windings
High-performance 0.2mm steel lamination stacked stator
Vibration dampening wave spring on shaft
Rotor position sensor removes cogging and inconsistency throughout
    startup
CNC machined 6061 T-6 aluminum endbells and motor can
13AWG high strand count silicone insulated wires with 4mm male bullet
    adapters
Four pole configuration for maximum effectiveness at high RPM
ROAR standard sensor port and identified connections
Replaceable front end bell/bearing assembly and rotor/shaft assembly

INCLUDES:
1410 1Y 3800Kv 4-Pole Sensored Brushless Motor, Sensor Wire, Power
    Leads with 4mm Male and Female Castle Bullet Connectors and 3
    3x5mm Socket Head Cap Screws

NEEDS:
Compatible electronic speed control such as the Castle Mamba Max Pro,
    Mamba Monster X and Mamba X

SPECS:
Input Voltage Variety: 2-3S LiPo
Kv: 3800
Max RPM: 100,000
Length: 2.1" (52.7mm)
Diameter: 1.4" (36mm)
Shaft Diameter: 0.197" (5mm)
Shaft Length: 0.83" (21mm)
Weight: 8.4oz (237g)
Installing Hole Size: M3 @ 25mm
