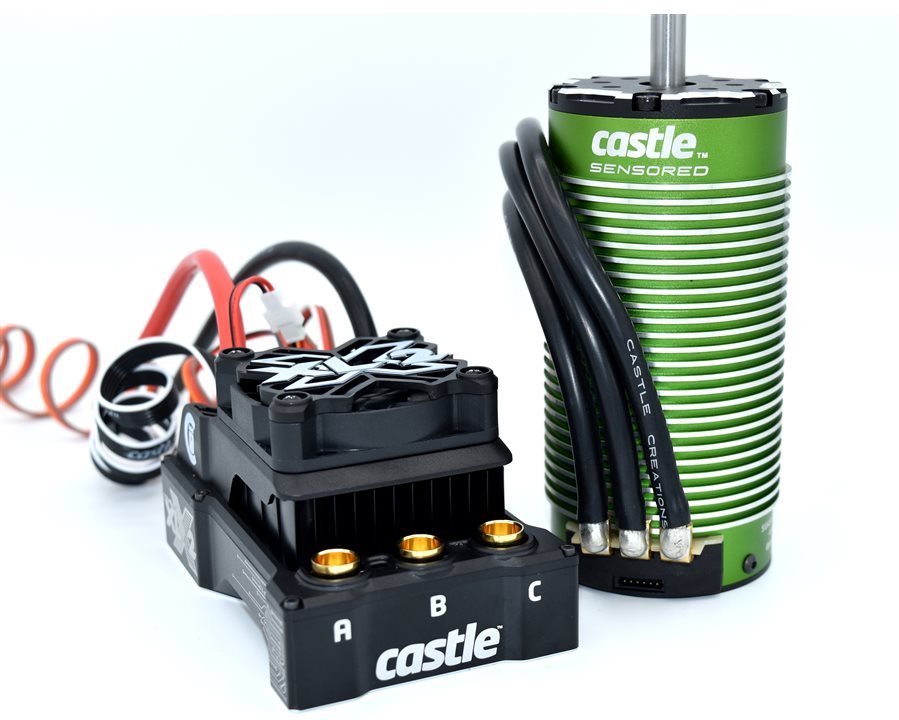

Castle Creations Mamba Xlx2, 8S, 33.6V Esc, 20A Peak Bec W/2028-1100Kv Motor

Presenting the Mamba XLX2, an ESC that will redefine the limitations of 1/5th scale R/C! Engineered from the ground up, the Mamba XLX2 is packed with a potent combination of software and hardware developments, sensored efficiency, CRYO-DRIVE and water resistant style that will set a new standard for high efficiency power systems. The Mamba XL family is well known for its extreme efficiency capabilities. The XLX2 pays homage to the tradition of its predecessors and exceeds their efficiency on all levels.

The Mamba XLX2 and 2028-1100kv combo is developed for the most extreme and requiring RC applications. The huge motor and high power ESC are capable of pressing lorries and chauffeurs to their limitations and beyond. This is the best combo for lorries weighing up to 30 pounds and up to eights LiPo.

CRYO-DRIVE, Castle's exclusive breakthrough innovation incorporates special software and devoted hardware to lower heat and dramatically increase efficiency. Countless times per second, the XLX2 software reduces the quantity of time the electrical elements spend creating heat. These software developments operate in parallel with an open real estate style which allows increased directional airflow to cool vital elements. With the combination of a new 50mm fan and created elliptical fin heatsink, the XLX2 takes full advantage of airflow throughout the system, taking thermal efficiency to a whole brand-new level. The results are more power handling, cooler ESC temperature levels and longer runtimes and for ultra-high performance.

You can quickly optimize the ESC for any driving condition, from rugged surface to smooth pavement to the dangers of rock and gravel. Produce, conserve and download setup profiles through the Castle Link Programs Suite on your Windows PC, or wirelessly with the convenience of the brand-new B-Link Bluetooth Adapter and Castle Link app for Android or iOS.

Additional tuning flexibility awaits you with on-the-fly modifications from your transmitter via the Auxiliary wire. Just connect the white signal wire to an open radio channel, and make it possible for the function in Castle Link by picking what Auxiliary function you want to use. Gain access to shows parameters such as Torque Control, Max Brake or Max Throttle.

Sensored 1/5th scale is here! Matching the Mamba XLX2 with the Castle 4-POLE 12-SLOT SENSORED 2028-1100KV will allow heavy, high speed rigs to experience manageable low-end ranges without compromising power, punch or speed. SmartSense mode uses the motor's sensing units to begin the motor to provide smooth starts, outstanding torque, and low-speed drivability. As soon as the motor is spinning, it flawlessly shifts to Castle's ultra-efficient sensorless mode. You'll put more power to the ground, where it should be, instead of wasting it through raw heat and RPMs.

MAMBA XLX2 INCLUDES:

Input Voltage Variety 3S-8S LiPo (33.6v max)

Sensorless, Sensored, SmartSense and Brushed Running Modes

Powerful Integrated 20A Peak Adjustable BEC (5.25V-8.0V)

CRYO-DRIVE Innovation reduces the quantity of time the ESC's electrical elements spend creating heat, resulting in enhanced thermal efficiency throughout partial throttle operation where the majority of driving takes place

ESC is housed in a rugged CNC aluminum case and potted in water resistant epoxy to secure the electronics and promote efficient heat transfer

Premium created heatsink with elliptical fins for exceptional air circulation and increased heat dissipation

Oversized factory geared up thermally controlled 50MM cooling fan

Suitable with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters

Installing holes located in bottom of aluminum case for attaching to your lorry

Water resistant style for all weather conditions

Data logging ability to capture and tape efficiency information from your lorry

Auxiliary wire performance for "on-the-fly" modifications utilizing your transmitter

Audible notifies for simple diagnosis of common problems such as motor-over-temperature and low-voltage cutoff

Convenient transmitter shows for 6 common adjustable settings including cutoff voltage and drag brake

Easily tune and update ESC with USB and Bluetooth shows alternatives

Castle Link USB shows package (voucher consisted of with purchase)

Optional smartphone-based shows with the B-LINK Bluetooth Adapter (offered individually and Castle Link all readily available on Google Play or Apple App Store)

Proudly developed and produced in Olathe, KS U.S.A. and backed by Castle Creations' 1-year service warranty

MOTOR INCLUDES:

4-POLE 12-SLOT sensored style that boasts exceptional efficiency and produces less heat

Exclusive stator winding produces low internal resistance for a cooler running motor

Dual sensor ports to guarantee optimum installation in your large-scale lorry

Oversized NMB bearings and vibration dampening system guarantee the longest possible bearing life

High-strength, high-temperature grade neodymium sintered magnets integrated with high-strength Kevlar wrap makes sure the stability of the rotor is not jeopardized throughout harsh running conditions and high RPMs.

Features:

Item Developed: 09/23/2020
