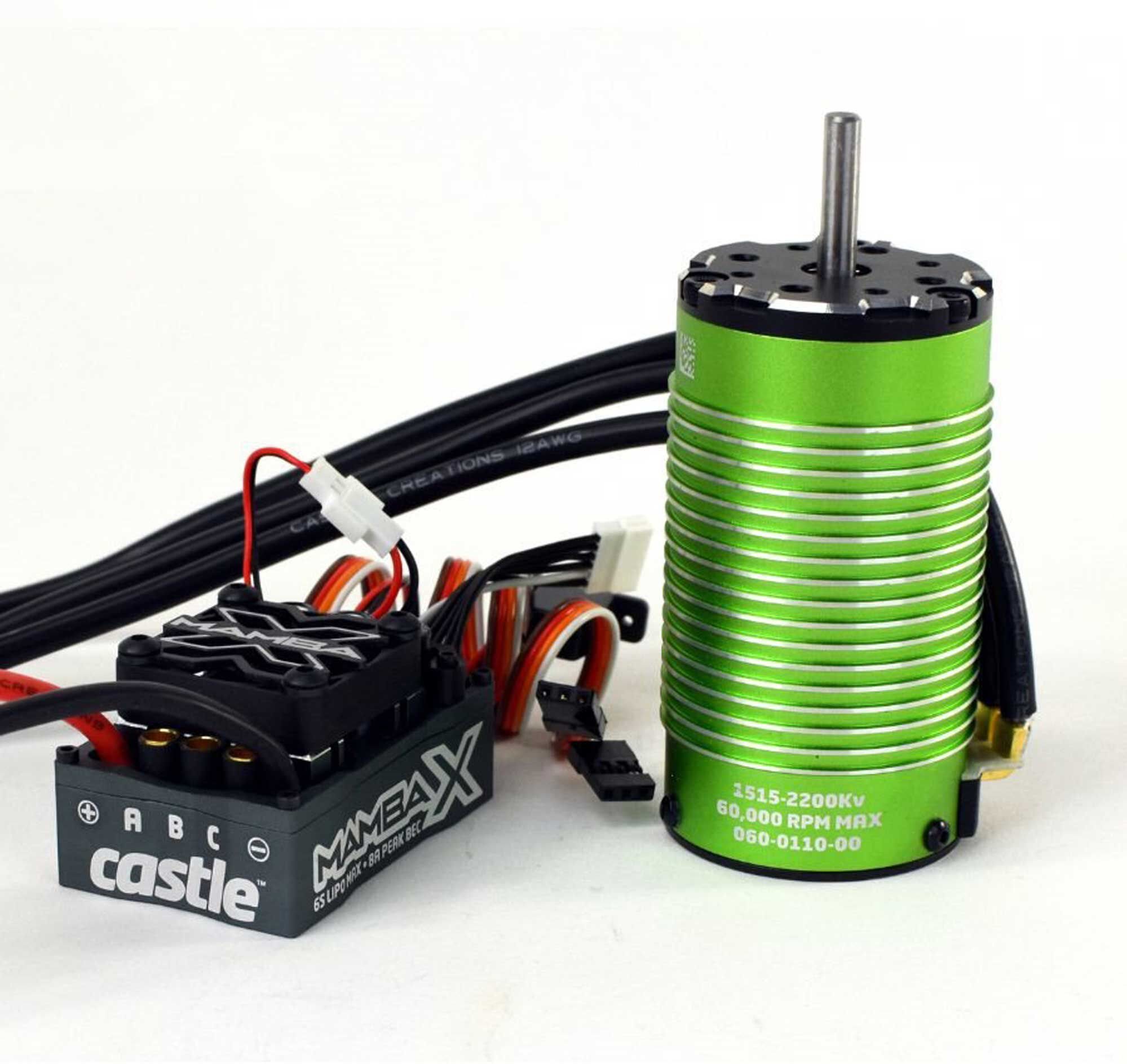

Castle Creations MAMBA X, 25.2V WP ESC AND 1515-2200KV V2 EBUGGY SENSORED COMBO (Castle Creations 010015516 | CSE010015516)
Castle Creations MAMBA X, 25.2V WP ESC AND 1515-2200KV V2 EBUGGY SENSORED COMBO

Zoom

Zoom

Zoom

Zoom

Model: Castle Creations 010015516
Dist. #: CSE010015516   SKU: CSE010015516

Be the first to review this product. (Write Review)

Out of stock

Price:  $309.95

This item will earn you 310 reward point(s).
310 points = $6.20 off your next order. Learn More
Updated on Nov 17, 2024 09:43:19 PM





Motor and ESC Combo Overview


Let's face it, even the best products have room for refinement, which is why Castle Creations is excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors they have ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!

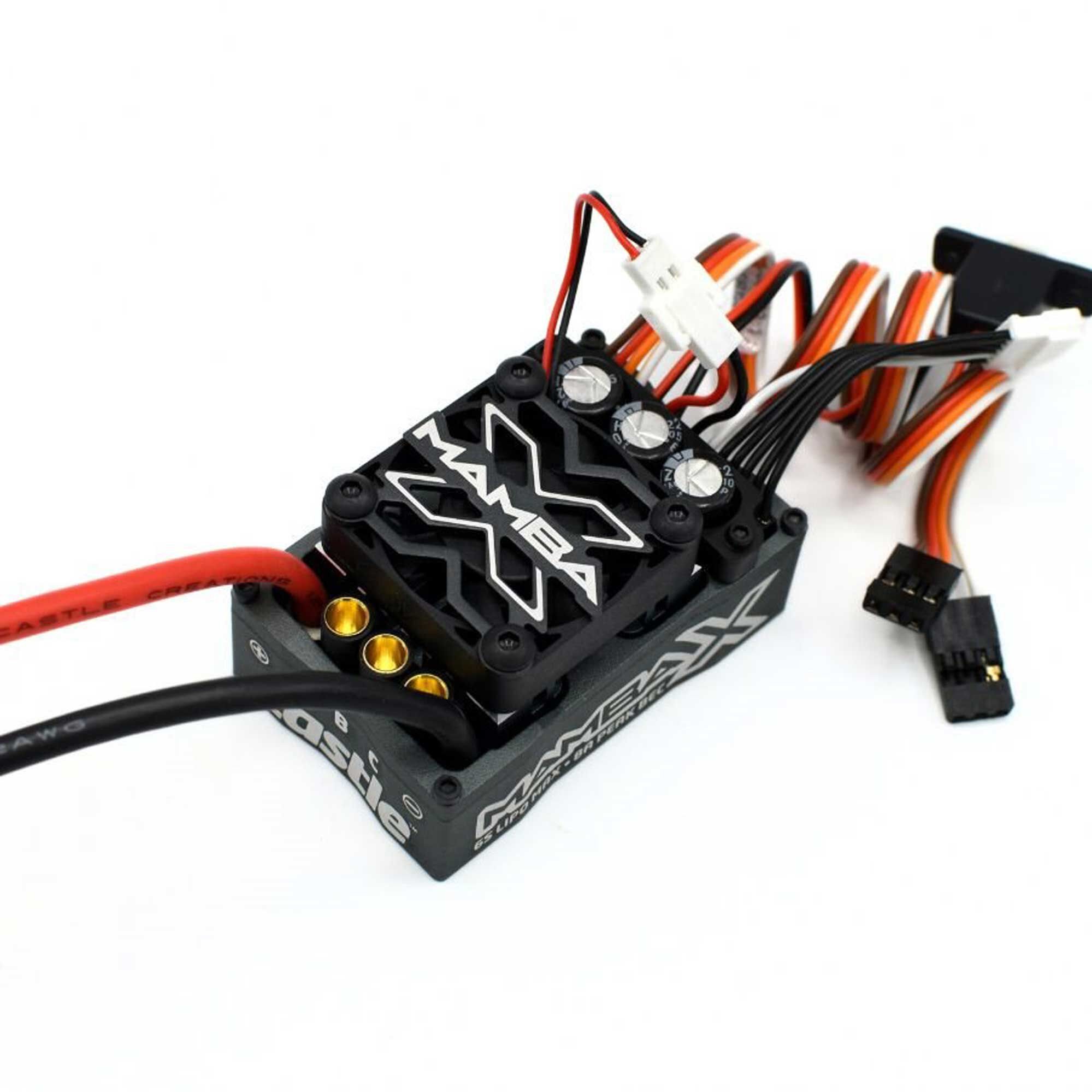

ESC Features






  • Wide 2s-4s input voltage range for powering a wide variety of applications

  • Sensored, Sensorless and SmartSense™ Running Modes

  • Brushless and brushed motor operation

  • Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)

  • Data logging capability to capture and record performance data from your vehicle

  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter

  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters

  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake






  • Dial in ESC settings, update ESC firmware and view data logs with Castle Link USB programming kit

  • Optional smartphone-based programming, firmware updates and data log viewing with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link software for iOS or Android (free download)

  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer

  • Waterproof design for all weather conditions

  • Factory equipped thermally controlled (and removable) 30mm cooling fan

  • 12 AWG high strand count silicone coated copper power wires

  • Integrated Capacitors and 4mm Bullet Connectors add durability in extreme conditions

  • Audible Alerts and LED Alerts for easy diagnoses of common issues such as motor-over-temperature and low-voltage cutoff








Motor Features






  • Input Voltage range: 2s-6s LiPo

  • Redesigned rotor and stator assemblies.

  • Reduced magnetic cogging, producing less residual drag brake.

  • Increased efficiency, resulting in lower temperatures and longer run times.

  • Smoother start-up, reducing cogging or stuttering when starting from a stop.

  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.

  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets






  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings

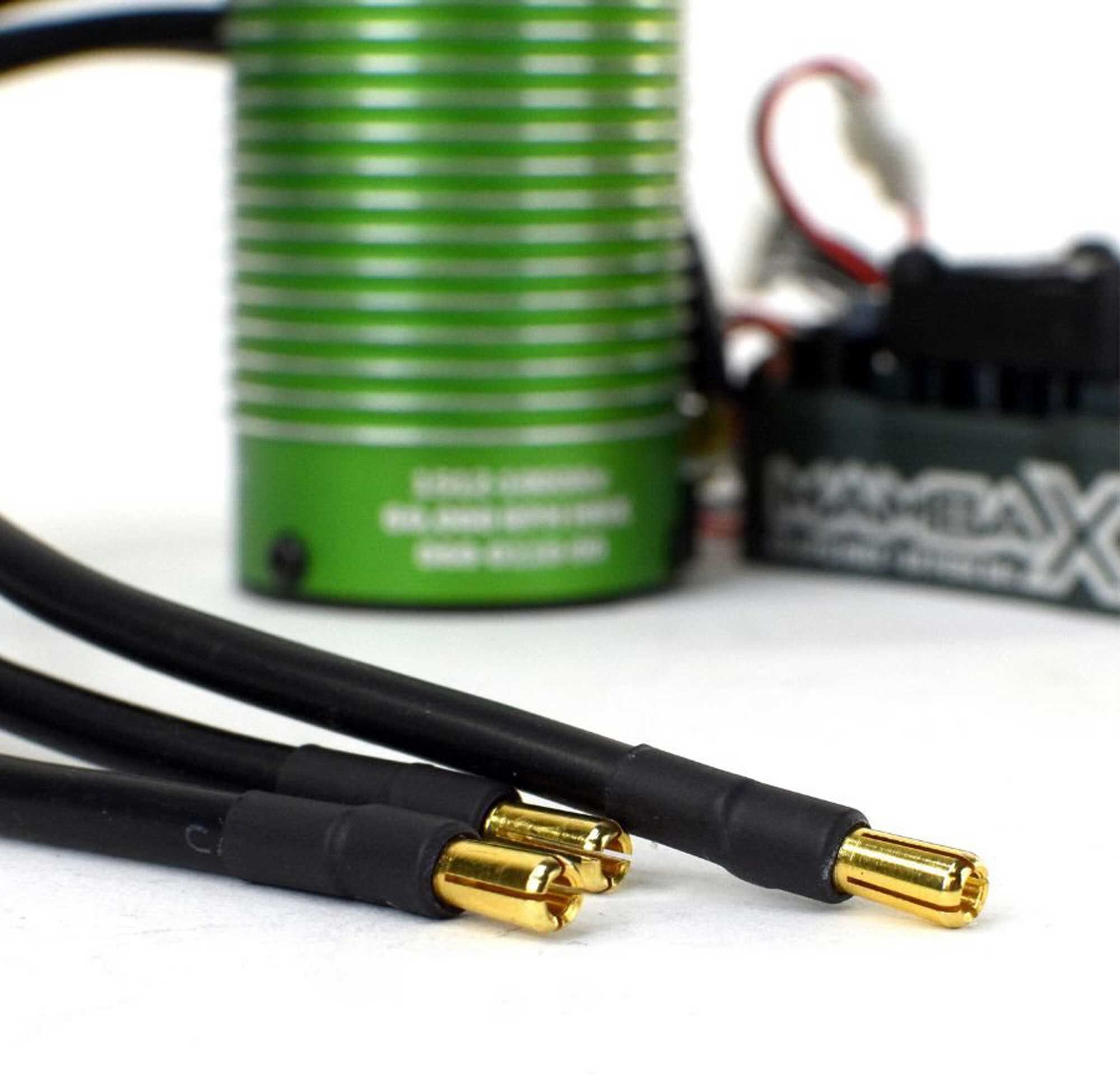

  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 4.0mm Bullet Connectors

  • High-Performance 0.2mm Steel Lamination Stacked Stator

  • Oversized, low-resistance, gold-plated solder tabs

  • Sensor board with High Quality Temperature-Stabilized Sensors

  • T6 Aluminum CNC Machines Front/Rear End bell

  • Backed by Castle Creations' 1-YEAR WARRANTY
