Castle Creations Mamba X 25.2V WP ESC +1406-3800kV Combo (Castle Creations 010015511 | CSE010015511)

Model: Castle Creations 010015511
Dist. #: CSEC5511   SKU: CSE010015511

Be the first to review this product. (Write Review)

Shipping: In Stock For Shipping
Store Pickup:

South Jordan, UT
Ship To Store - Pick up in 2 to 3 days..

List Price:  $298.95
Price:  $269.95
You Save:  $29 (10%)

This item will earn you 270 reward point(s).
270 points = $5.40 off your next order. Learn More

Updated on Aug 23, 2025 06:09:39 PM

Mamba X 25.2V WP ESC +1406-3800kV Combo...

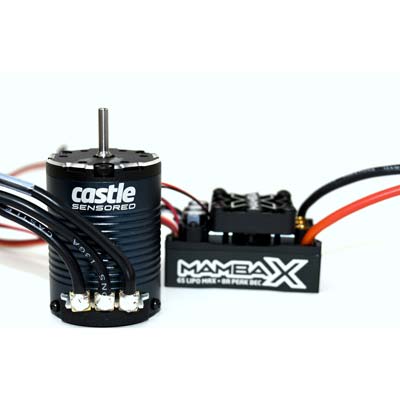

This is the Castle Creations Mamba X Waterproof Electronic Speed Control
and the 1406-3800Kv Brushless Sensored Motor.

FEATURES:
Ideal for 1/10 scale low speed crawling or trail running vehicles
    weighing up to 9lbs (4.1kg) on 2S LiPo power, along with rock
    racing and extended hill climbing on vehicles up to 5lbs (2.3kg)
Might likewise be utilized in 2WD buggies, stadium trucks and 4WD touring vehicles

    ESC Characteristics;
V2.02 firmware enhanced for rock crawling and sensored operation
8A 5.25-8.0V adjustable BEC (Battery Eliminator Circuitry)
2S to SIX input voltage range
Reverse might be handicapped for racing
Smartsense utilizes motor's sensors for smooth starts, exceptional torque
    and low-speed drivability - then shifts to the sensorless
    mode with electronic timing, Smartsense automatically advances
    timing for peak performance during all owning conditions
On-the-fly changes can be made through the AUX wire as soon as
    made it possible for
Recordable real-time data such as RPM, battery current and voltage,
    ESC and motor temperature level, throttle input and more
12AWG high hair count silicone insulated battery wires
Data-logging
Castle Link programming assistance, requires Castle Link USB Programs
    package, different purchase, CSEM0119
Removable 30mm cooling fan
CNC machined aluminum case
4mm gold plated bullet adapters
One year minimal warranty through Castle Creations starting at date
    of purchase

    Motor Characteristics;
HOLLER standard sensor port and identified connections
SMARTSENSE utilizes sensors to provide smooth starts, exceptional torque
    and low speed driveability
Equivalent in RPM output to roughly a 10.5 turn brushed motor
CNC machined 6061-T6 aluminum can, slate gray in color
Rebuildable
High performance 0.2mm steel lamination stacked stator
High strength 180°C grade neodymium sintered magnets with Kevlar wrap
Oversize NMB grade ball bearings

CONSISTS OF:
Mamba X Electronic Speed Controller
1406-3800Kv Sensing united Brushless Motor
8.3" (210mm) length Sensing unit Wire (for sensored operation)
Castle Sensor Harness Adapter
Coupon free of charge Castle Link USB Adapter
Motorist's Ed and Quick Start Guides
Castle Decal Sheet

SPECS:
ESC, CSEM9500
Input Voltage Variety: 2S - SIX LiPo
BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Programmable: Completely programmable with Castle Link USB Adapter, and
    downloadable Castle Link Windows software
Telemetry Link Capable: Yes
Brake: Proportional
Reverse: Yes, might be handicapped for racing
Cooling Fan: 1.2" (30mm) removable
Measurements: 2.14 x 1.39 x 1.18" (54.4 x 35.2 x 30mm)
Weight: 3.56oz (101g)
Max Recommended Lorry Weight: 9lbs (4kg) with batteries, RTR

    Motor, CSEC7100
Input Voltage Variety: 2-3S LiPo
Kv Score: 3800
Max RPM: 100.000
Can Length: 1.9" (49.5mm)
Can Size: 1.4" (36mm)
Weight: 6.9oz (197g) with wires
Shaft Size: 1/8" (3.17mm)
Shaft Length: 0.59" (15mm)
Mounting Hole Specifications: M3 @ 25mm
Wire Lead: Castle 13 AWG silicone insulated wire
Connectors: 4mm male Castle Bullet Connectors

COMMENTS:
Components are water resistant under regular operation. Not meant for
    operation when entirely submerged in water.
