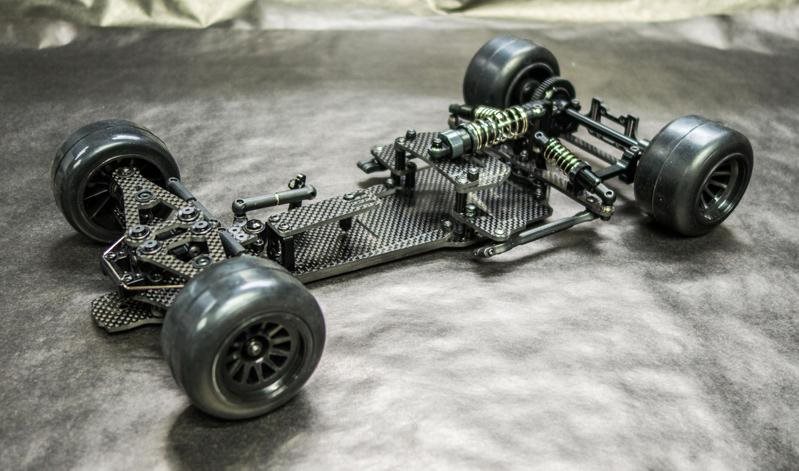

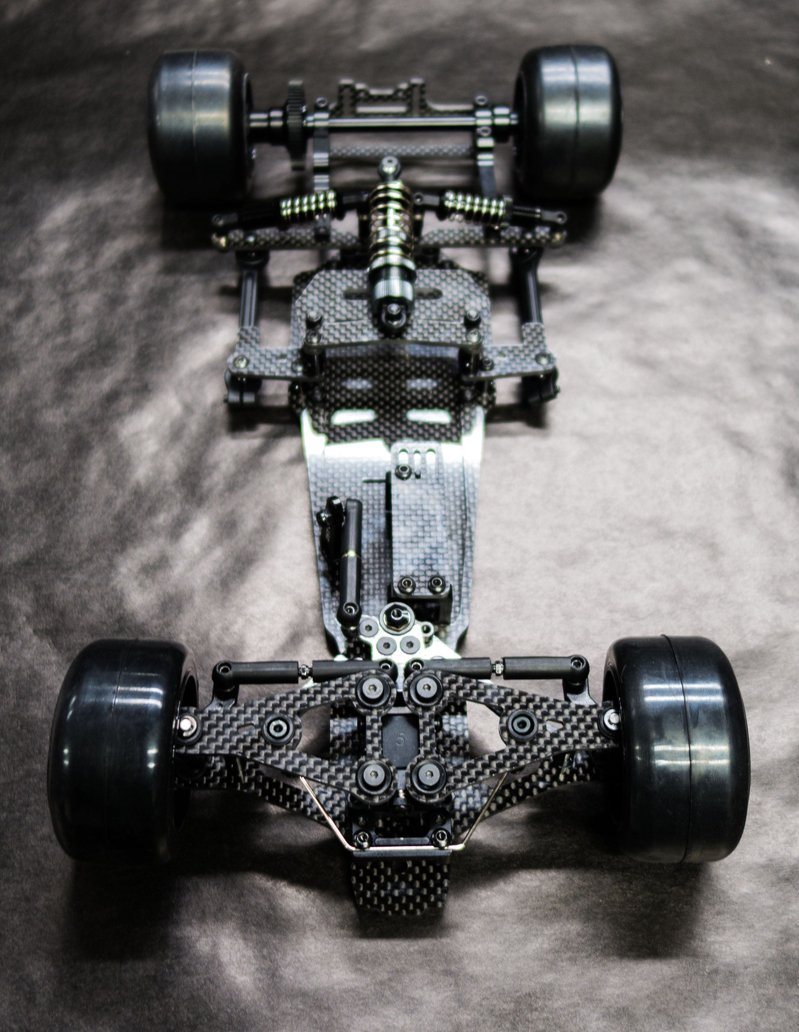

Carisma Crf-1 Pro Racing Chassis Kit

Hot on the heels of setting TQ and winning outright the first BRCA F1 National of 2020, Carisma Racing releases a chassis only variation of the innovative CRF-1 2WD F1 platform. It includes a complete set of Carisma group recommended choice parts as basic, enabling the racer to then pick the physique, the correct wheels and tyres for the tracks they race on, and their option of electrics.

This is a no compromise Set designed for simply one function...winning. It's as easy as that. No tough sell required, the CRF-1 was designed from the ground up to allow completion user to adjust every conceivable specification in the steering, suspension, chassis geometry and grip characteristics.

For The Racers, For The Chauffeurs...

2WD, and specifically F1 is a true chauffeurs class, and perhaps the closest thing in RC to the excitement of 1:1 racing. Lots of factors enter play to make such an effective chassis. It has to do with the ease of setting the cars and truck as much as match the track and it's surface area, and Just like it's full sized equivalent, testing is the crucial to it's success. The model was thoroughly tested in both Asia and Europe, then from that data the last production design was born, with its compliment of efficiency hop up's supplied as basic problem as suggested by our Group Drivers.

Take our baseline set-ups and tweak them to your own driving style. Push the limits of it's straight line speed and both on and off power grip in the corners. Slow in, fast out is the name of the game and getting that all important podium position the supreme goal. From a stock class club racer, to a complete blown National or International competitor, the CRF-1 takes it all in its stride, and leaves no-one wondering regarding its real intent...

NOT Consisted of In The Set:

No Body or Body Detailing Components

No Wheel And Tyres

No Steering Servo

No Electronics

No Battery

No Pinion

No Motor

No ESC

Main Technical Specifications

Full Carbon Fibre Race Chassis, Aircraft Grade Alloy and High Quality Composite Components.

Unique front bulkhead design for numerous establish and ease of on-the-fly tuning.

Rear pivot pod with innovative side shock sliders and optional Dual-Stage Suspension.

Every element of the geometry is totally adjustable to dial in any track condition.

Real world tested. No theoretical, No simulation, Completely Race proven.

Front End Innovations:

Adjustable Castor 0-14 deg by changing 1 shim.

Adjustable Camber -3 to (as much favorable as you desire) by adding shims.

Adjustable Flight Height by changing shims under front end assembly.

Metal Pivot balls for increased resilience and smooth movement.

Aluminium arm mounts.

Built in reactive castor (5 degrees) for increased steering.

Durable steering blocks with 2 steering link mounting positions.

Adjustable roll centre by adding shims under leading arms.

Extra long front wheel axles to allow a multitude of wheels/tyres to fit.

Easily Adjustable front width.

Industry STD front springs on the king pins.

Adjustable Ackerman settings - 3 positions from the kit.

Front brace assists support the front end and increases front to rear chassis stiffness.

M4 screws utilized to install the front end assembly into durable aluminium mounts for optimum durability.

Castor install supports the front end to minimize opportunities of tweak on impacts.

Dual Ball-raced single pivot aluminium steering bell-crank.

2 Wheelbase settings using the same parts.

1 piece stiff lower suspension arm - more steering and less opportunity of tweak.

Accepts all ETS permitted wings and others.

Steering lock stops.

Rear End Innovations:

Increased centre pivot angles allow substantial pod motion - substantial benefit on bumpy tracks and suppress riding.

Lightweight 2 piece aluminium bulkheads.

Ride height adjustable through shims under the aluminium bearing holders.

Smooth durable ball differential with thrust race constructed in.

Accepts all 14mm hex wheels.

4 screw choice for holding the motor in location, extra resilience if required.

Increased motor cooling due to the open pod design.

Carbon Rear wing install with numerous height positions for great tuning the managing to the wing you choose.

Carbon brace under rear axle - increases durability.

Accepts all ETS permitted wings and others.

Side Damper Tube Shock Innovations:

Tunable rear pod side angles - minimize angle with shims / accepts front suspension springs for an industry initially double phase suspension.

Side Damper tubes tunable with different oils/greases and have coil over springs with adjustable threaded collars to adjust tweak settings.

Accepts 1/12th scale centre shock springs.

Centre Shock Innovations:

Big stroke centre shock - much better over bumpy tracks.

Oil filled coil over spring design.

Features:

Product Produced: 12/15/2020
