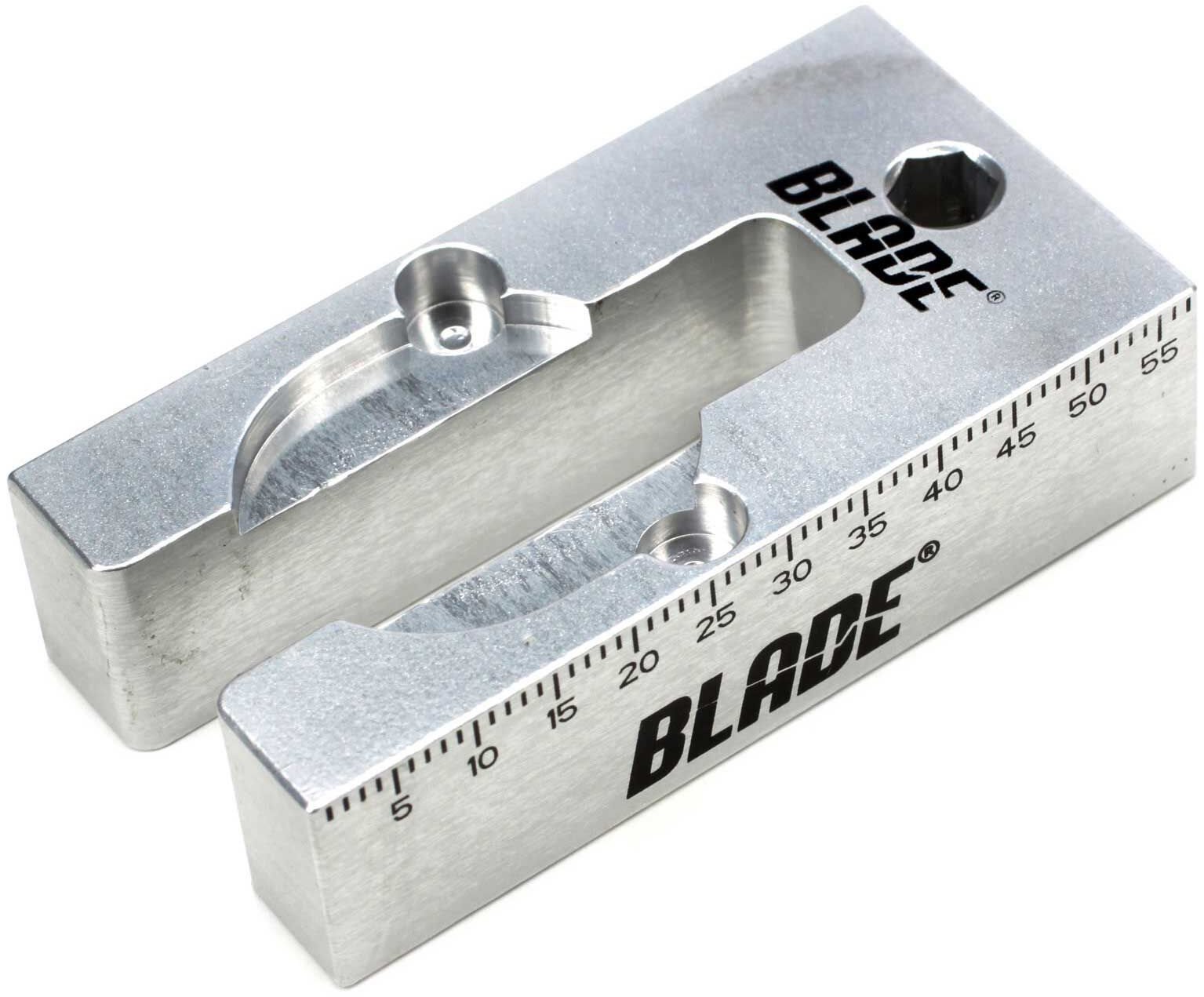

Blade Swash Leveling Tool: B450, B400

This is the Blade Swash Leveling Tool for the 450 and 400 Helicopters.

Features:

Silver colored
Made from metal
For the Blade 450 and 400

Directions:
1. Disconnect the motor from the ESC by disconnecting any two wires in between the motor and ESC
2. Disconnect all the linkages from the swashplate
3. Power on your transmitter
4. Enable idle up
5. Put the throttle stay with center position
6. Observe the left and right servo arms and adjust your subtrim so that they are level
7. Observe the elevator control arm (behind the motor) and adjust your subtrim so that it is level
8. Slide the swash leveling tool under the swashplate as shown in the photos
9. Location the swashplate flat on the tool
10. Change the linkages such that the swashplate stays flat when connected
11. When all linkages are connected, detach the battery from the ESC
12. Carefully move the swashplate up and get rid of the swash leveling tool
13. Disengage idle up on your transmitter and power it off
14. Reconnect the motor wires to the ESC
15. Now go fly!

Includes:
One Blade Swash Leveling Tool
