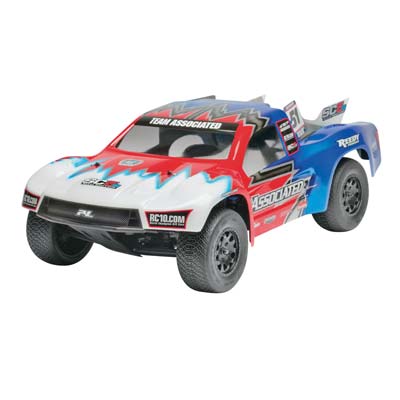

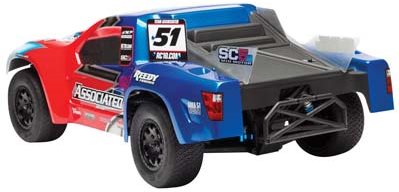

Associated RC10SC5M Team Kit

This is the Radio Controlled, Electric Powered, 1/10 scale
Team Associated RC10SC5M Short Course Truck Package.

**Additional Technical Information Will Be Included When It Becomes Available.**

FUNCTIONS:

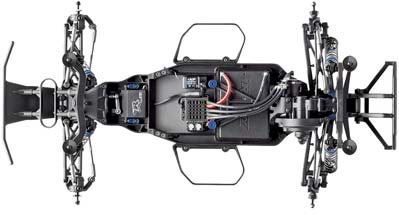

Chassis: Tough anodized aluminum with centralized mass and mid-motor
    position, fits R.O.A.R.-approved TWO saddle packs and TWO short packs
with optional foam inserts
Drive: Rear wheel
Transmission: Updated four-gear transmission with lighter aluminum
    leading shaft, stronger gears, ball bearings,
Differential: Ball type, 14 carbide balls
Slipper Clutch: Factory Team VTS with high-resolution spring for
    finer adjustments
Front Suspension: Inline style, heavy duty steering and caster
    blocks, adjustable install angle choices, heavy duty ball cups and
    studs
Shocks: Oil-filled aluminum body Factory Team 12mm Big Bore with
    0.12" (3mm) size shafts
Body: Clear Pro-Line
Steering: Full ball bearing system with horizontal ball studs for
    finer Ackerman adjustments, Ackerman explains the effect of the
    inner front wheel turning much faster that the outer front wheels during
    turns
Caster: Adjustable, caster/toe-in refers to the angle of the front
    suspension when seen from the side of the cars and truck in relation to the
    chassis
Camber: Adjustable, camber refers to the angle of the tops of the
    tires from vertical when seen from front or behind lorry

CONSISTS OF:

REQUIRES:
Radio: 2-channel with high-torque steering servo
Motor: 540 size
Electronic Speed Control: To match chosen motor
Battery: 7.4V LiPo or 6.6V LiFe, saddle, shorty or square pack
    compatible
Pinion Equipment: 48P
Tires: 1/10 scale short course with foam inserts
Wheels: 1/10 scale short course
Tire glue, paint, building and track devices

SPECS:
Vehicle
Length: 21.2" (540mm)
Width:
Height:
Wheelbase: 12.6-12.7" (320-324mm) adjustable

REMARKS:
For Replacement Ball Bearings usage:
    Qty. Size Area Qty. Bearing Set
