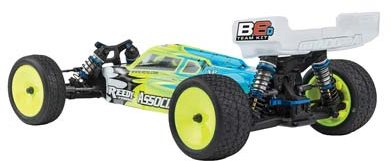

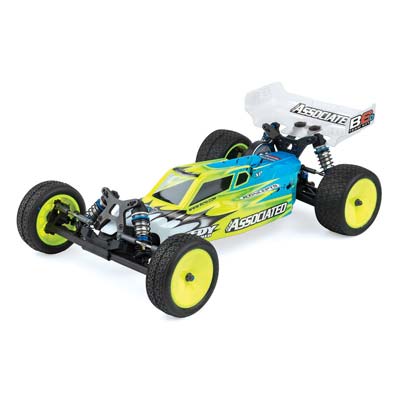

Associated RC10B6D Team Kit

**Extra Technical Info will Be Included When It Becomes Available.**
This is the 1/10 scale Electric Powered, Radio Controlled,
RC10B6D Group Buggy Kit from Group Associated

The differences in between the RC10B6 and RC10B6D are as follows;
The RC10B6 is configured for high to very-high traction surfaces.
The RC10B6D is configured for low to high traction surfaces.
RC10B6 RC10B6D
Laydown Transmssion Upright Transmission
Gear Differential Ball Differential
Gull Wing Front Suspension Arms Flat Front Suspension Arms
Wide Front Shock Tower Narrow Front Shock Tower

FUNCTIONS:
Chassis: Hard anodized aluminum, --" (--mm) thick taken chassis
    optional weights (not consisted of) permit weight predisposition tuning,
    repositioned A plate supplies optimum front end clearance
Drive: Two wheel drive with strong rear axle, aluminum front
    axle and rear hexes for less turning mass
Transmission: Standup 3-gear offers more rearward weight for better
    rear traction
Differential: Ball type for more rear traction and better stability
Suspension: Flat front arms for more responsive steering and
    quicker release from corners, updated ball cups and
    turnbuckles for precise change and resilience
Motor Mount:
    central positioning for maximum side-to-side balance
Shocks: V2 12mm Huge Bore aluminum body with 3mm TiN coated shafts
    and low friction X-rings for improved smoothness, Factory Group
    aluminum shock bushings, rear shocks might be installed on front or
    rear of rear arms
Ball Bearings: Full set Factory Group upgraded
Steering: One-piece obstructs with bolt-on Ackermann plate, Ackermann
    refers to the effect of the inner front wheel turning faster than
    the external front wheel during turns, reverse bell-crank steering
    rack style uses more room for electronic devices
Body: Clear buggy, screw-mounted wing by JConcepts
Battery Hold-Down Strap: Adjustable to permit weight predisposition tuning

CONSISTS OF:
RC10B6D Group Buggy Kit with Body, Rear Wing, Shocks, Decals and
    Instruction Manual

NEEDS:
Radio: 2-channel with high-torque steering servo
Motor: 540 size
ESC:
Battery: 7.4V LiPo or 6.6V LiFe, saddle, shorty or square pack
Battery Charger:
Wheels: 1/10 scale buggy
Tires: 1/10 scale buggy
Pinion Gear: 48P
Paint, building and track devices

SPECS:
Automobile;
Length:
Width:
Height:
Wheelbase: 11-11.1" (280-282mm)
    Body;
Length: 11.4" (289mm)
Width: 5" (127mm)
Height: 2.8" (71mm)

REMARKS:
For replacement or to upgrade to Ball Bearings usage:
    Qty. Size Area Qty. Bearing Set
