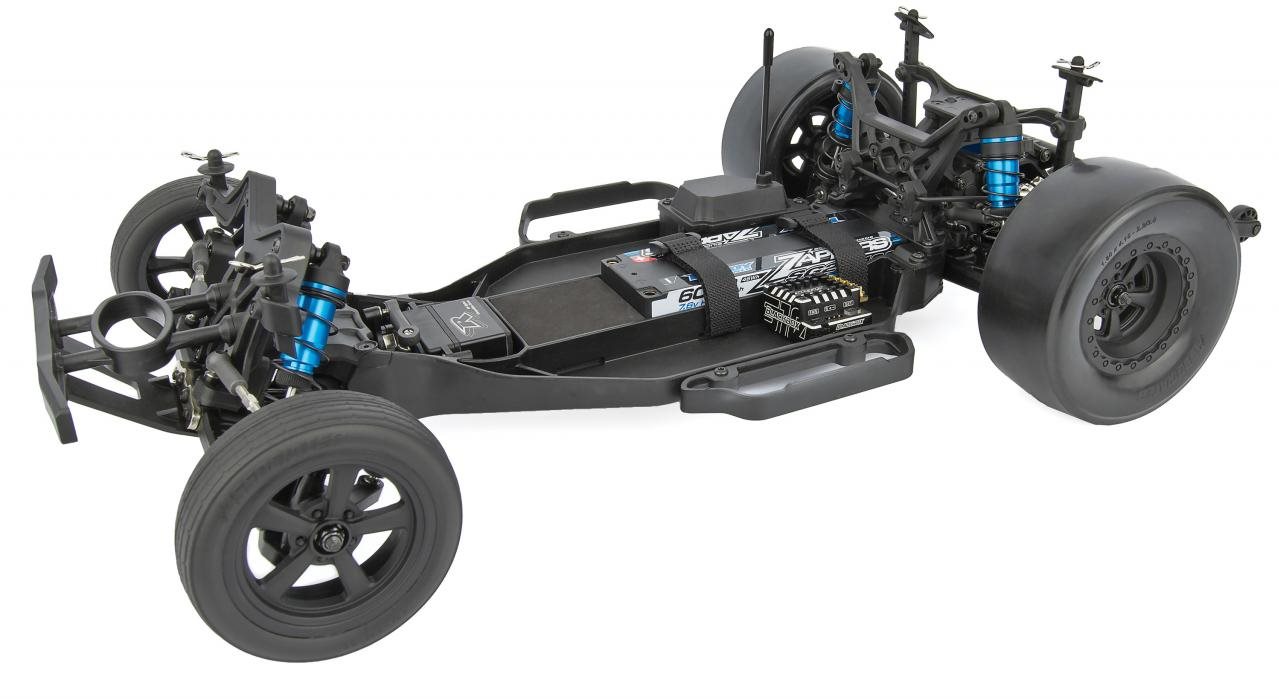

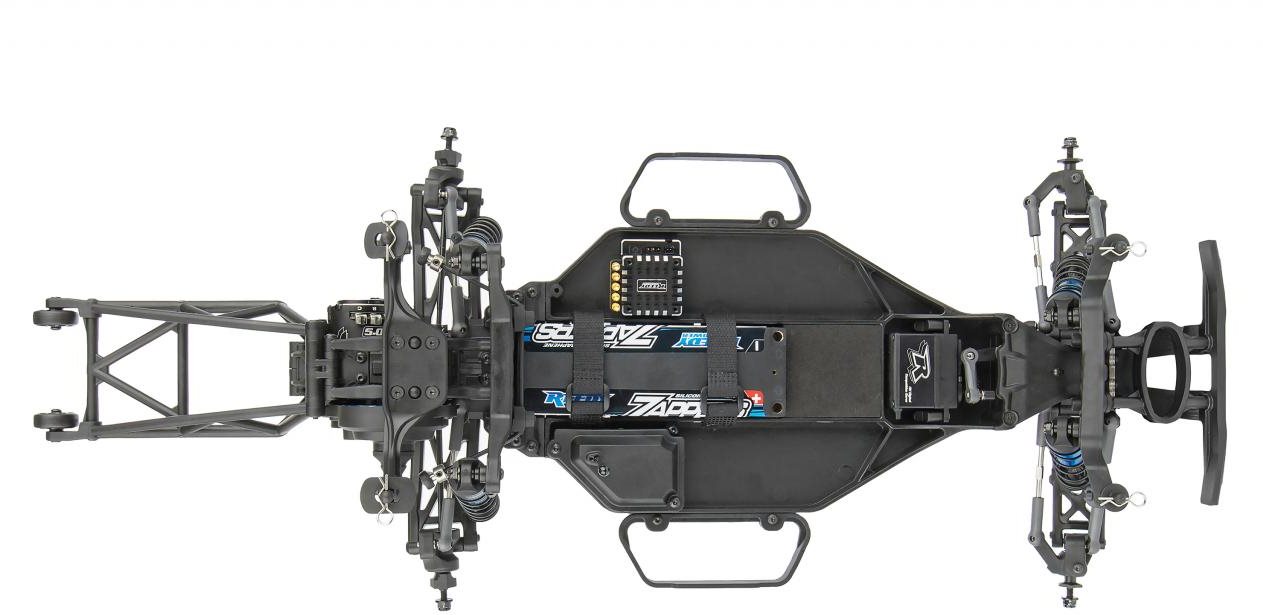

Associated Dr10 Drag Race Car Team Kit

The DR10 Group Kit features rear anti-roll bar, 26 accuracy ball bearings, a waterproof enclosed receiver box, totally adjustable suspension, vertical ball ends for roll center adjustments, and 2.6:1 ratio transmission with heavy-duty sealed gear differential and externally adjustable V2 slipper clutch.

-Three-position wheelie bar with optional big wheels

-Lightweight drag race motivated wheels

-Rear anti-roll bar

-Rear silicone diff fluid

-Resilient and lightweight aluminum leading shaft

-Low center-of-gravity molded composite chassis with hook-and-loop battery straps that accommodate for both NiMh and 2/3s LiPo battery packs

-Resilient front and rear body mounts

-Rear CVA driveshafts for more reliability

-Aluminum 12mm big bore coil-over shock absorbers

-2.6:1 ratio transmission with heavy-duty sealed gear differential and externally adjustable V2 slipper clutch

-Rugged steel turnbuckles for adjustable camber and front toe-in

-Totally adjustable suspension geometry

-Vertical ball ends for roll center adjustments, front and rear

-Water-resistant, enclosed receiver box

-Metric hardware throughout

-26 accuracy ball bearings

ITEMS REQUIRED TO COMPLETE:

-540-size electrical RC motor (#27452 Sonic 540-M4 Modified Motor 4.5)

-Electronic speed control (#27005 Blackbox 510R Competitors ESC w/PROgrammer2)

-2-3 cell 7.4V-11.1V LiPo or 6-7cell NiMH battery pack (#27344 Zappers SG3 8200mAh 115C 7.6V Stick)

-Battery charger

-2-channel surface transmitter and receiver

-Steering servo (#27101 RT1508 Digital HV Hi-Torque Competitors Servo)

-1:10 scale 2.2" / 3.0" rear tires and 2.2" front tires

-CA glue for tires and wheels

-1:10 scale Drag Racing (No-Prep) body (#71082 DR10 Reakt Drag Body, clear)

-Polycarbonate-specific spray paint for body, and body scissors

Item Produced: 05/21/2020
