ARRMA 1/8 NOTORIOUS 6S 4WD BLX

Underneath its customized '50s "Real Steel" body, the NOTORIOUS™ 6S BLX 4WD has an ARRMA®-tough style and brushless power system that's perfect for extreme stunts. Now comes total with the Spektrum™ STX2® radio system, this 1/8 Stunt Truck comes ready to thrill!

Features
• Ready-to-run
• Exceptionally durable
• Fast, 60+ miles per hour speed possible *
• 150A, 6S LiPo ready (THREE, 4S and 6S LiPo suitable)
• Outrageous stunt capability
• "Real Steel" body result (patent pending)
• Anodized aluminum chassis
• Center body support
• Aluminum center brace
• Strong composite chassis side pods
• Sturdy drivetrain
• All-metal diff outdrives and gearbox internals
• Durable steel driveshafts
• Easy-access sliding motor install
• 5-Bolt center diff elimination
• Never-pop ball ends
• Never loose red aluminum servo saver
• Oil-filled adjustable shocks
• Black anodized aluminum front and rear shock towers

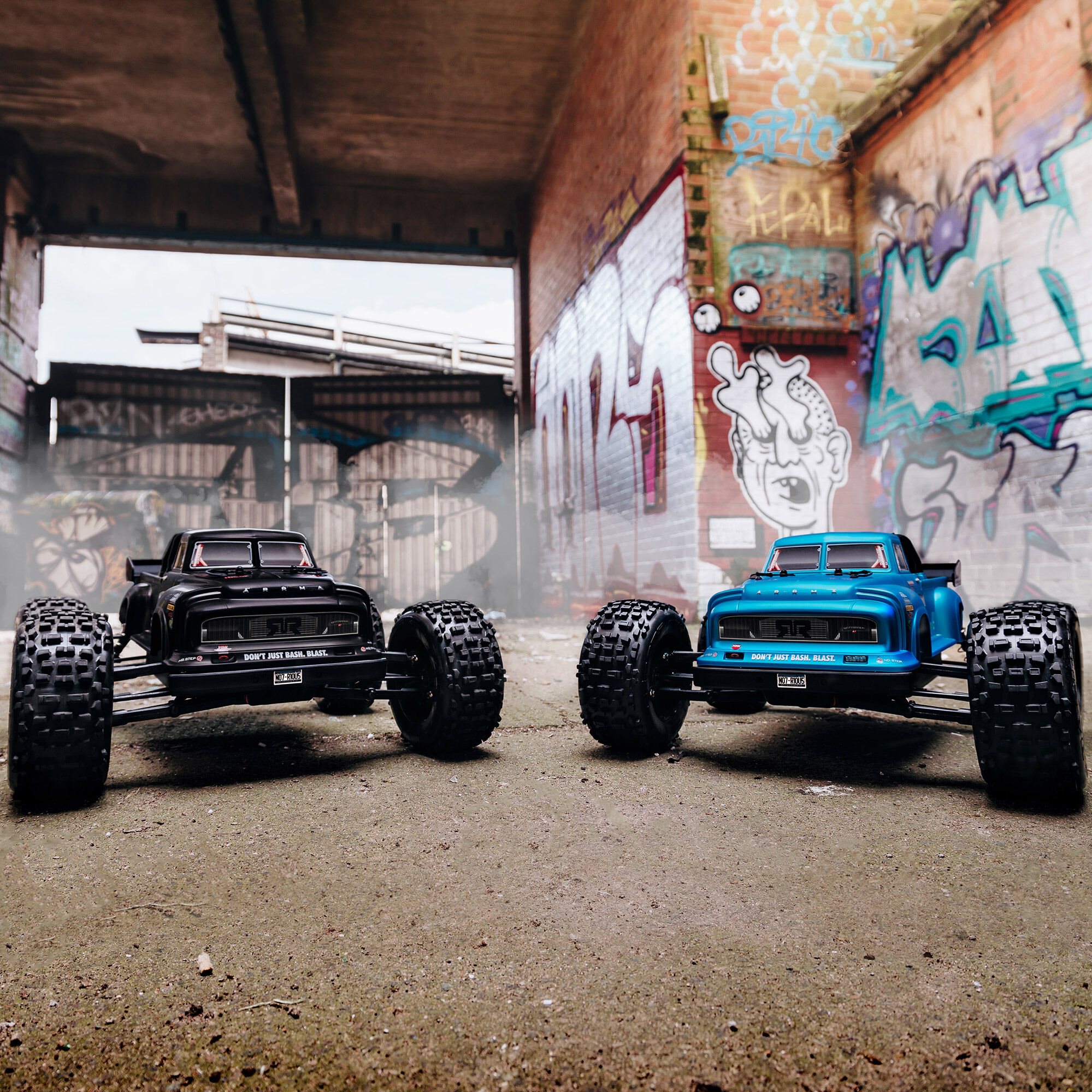

• Matte black or matte blue body color options
• Tough stunt truck wheels and multi-terrain DBoots® Back-Flip tires
• High downforce wing
• Internal body protection roll bar

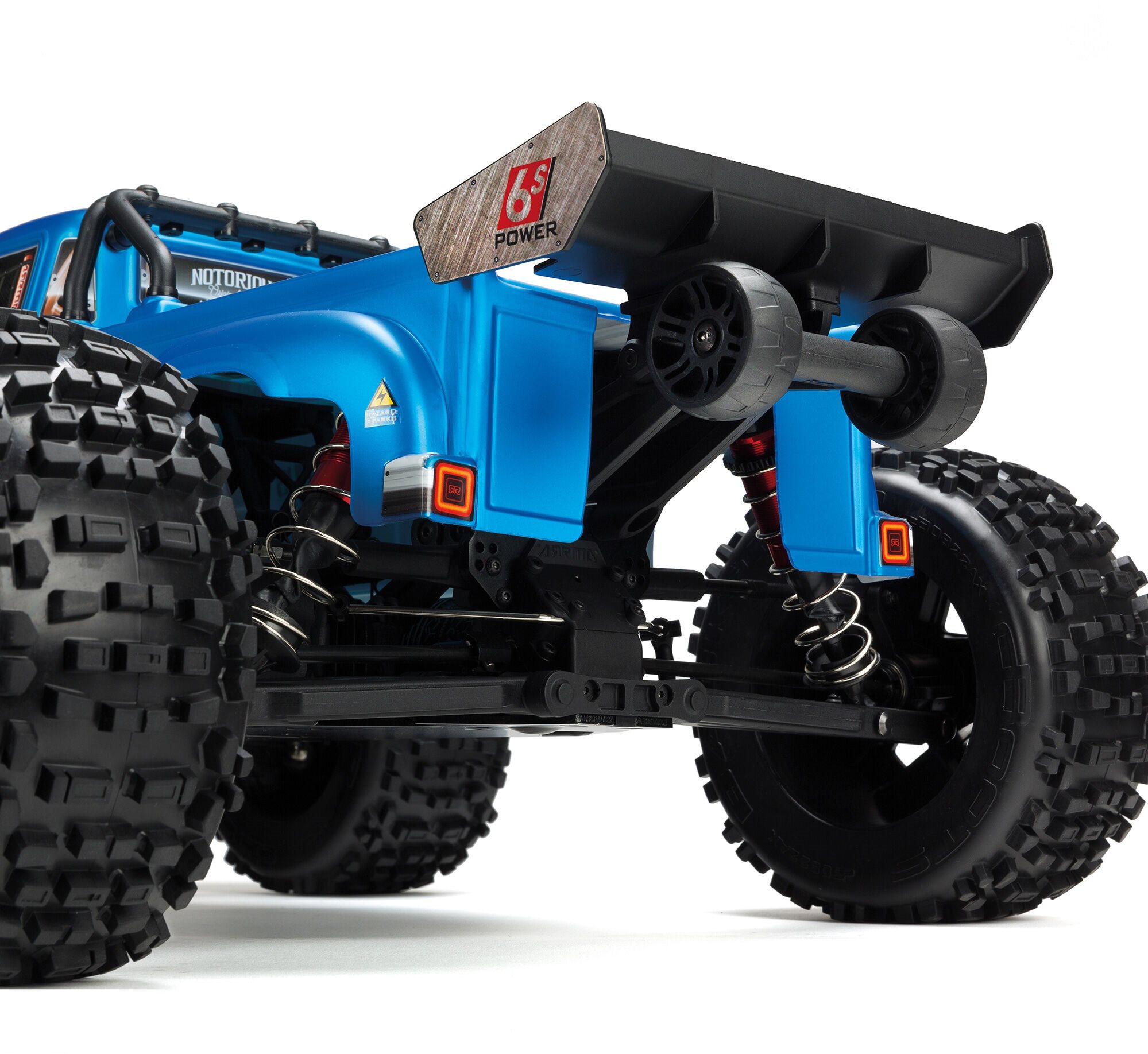

• Wheelie bar
• Super-durable wheel centers
• Hub nut O-rings
• Spektrum™ 2.4GHz STX2® Radio with SRX200 Receiver
• BLX4074 2050Kv brushless motor
• BLX185 waterproof 4S/6S ESC (fitted with IC5™ adapter and EC5™ suitable) **
• ADS-15M waterproof 15kg-cm metal-geared servo (195 oz-in @ 6V) **
• 2-year minimal service warranty (see site for information).
* Speed possible in optimum conditions on 6S LiPo with optional pinion gear
** For information on waterproof standards, please refer to the product instruction manuals

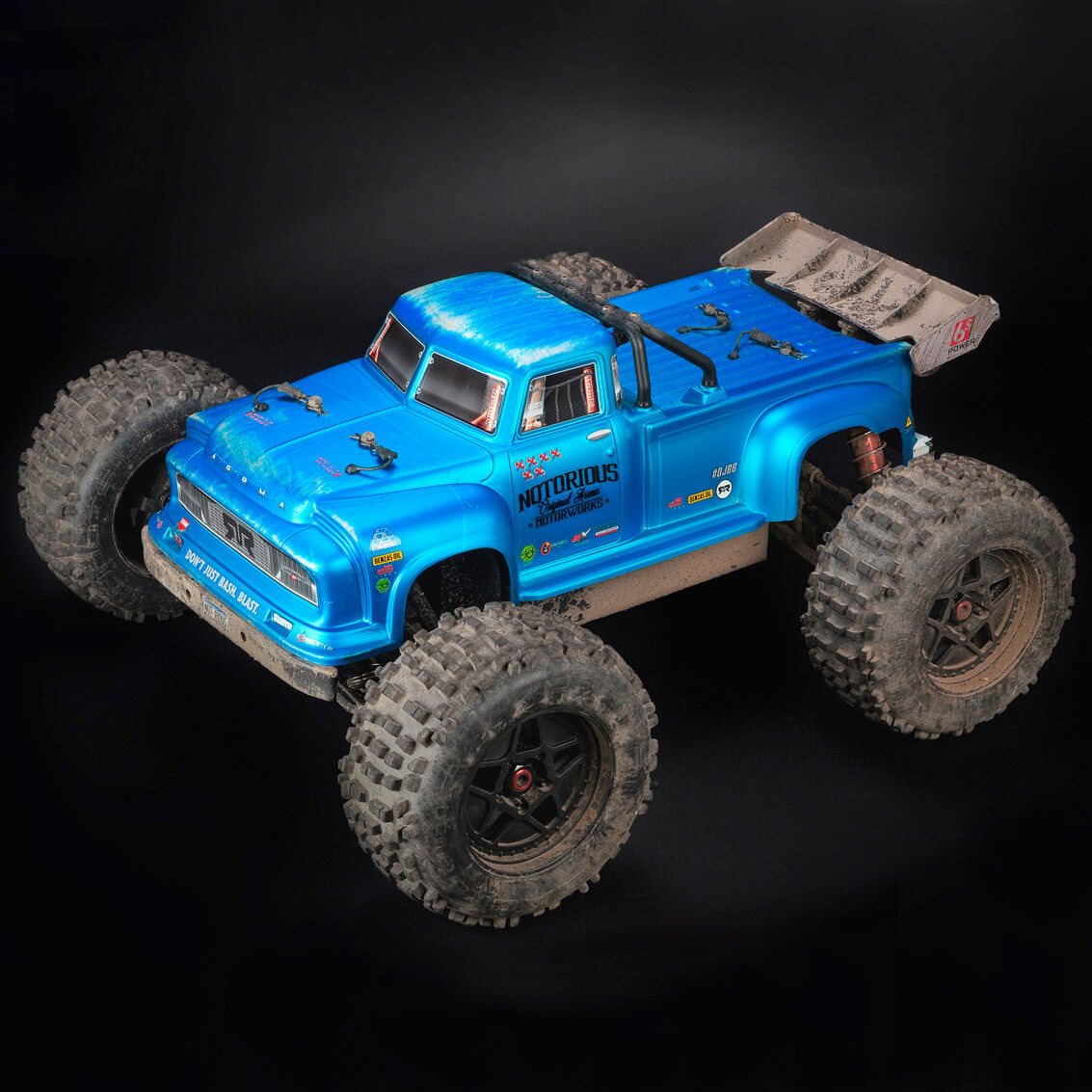

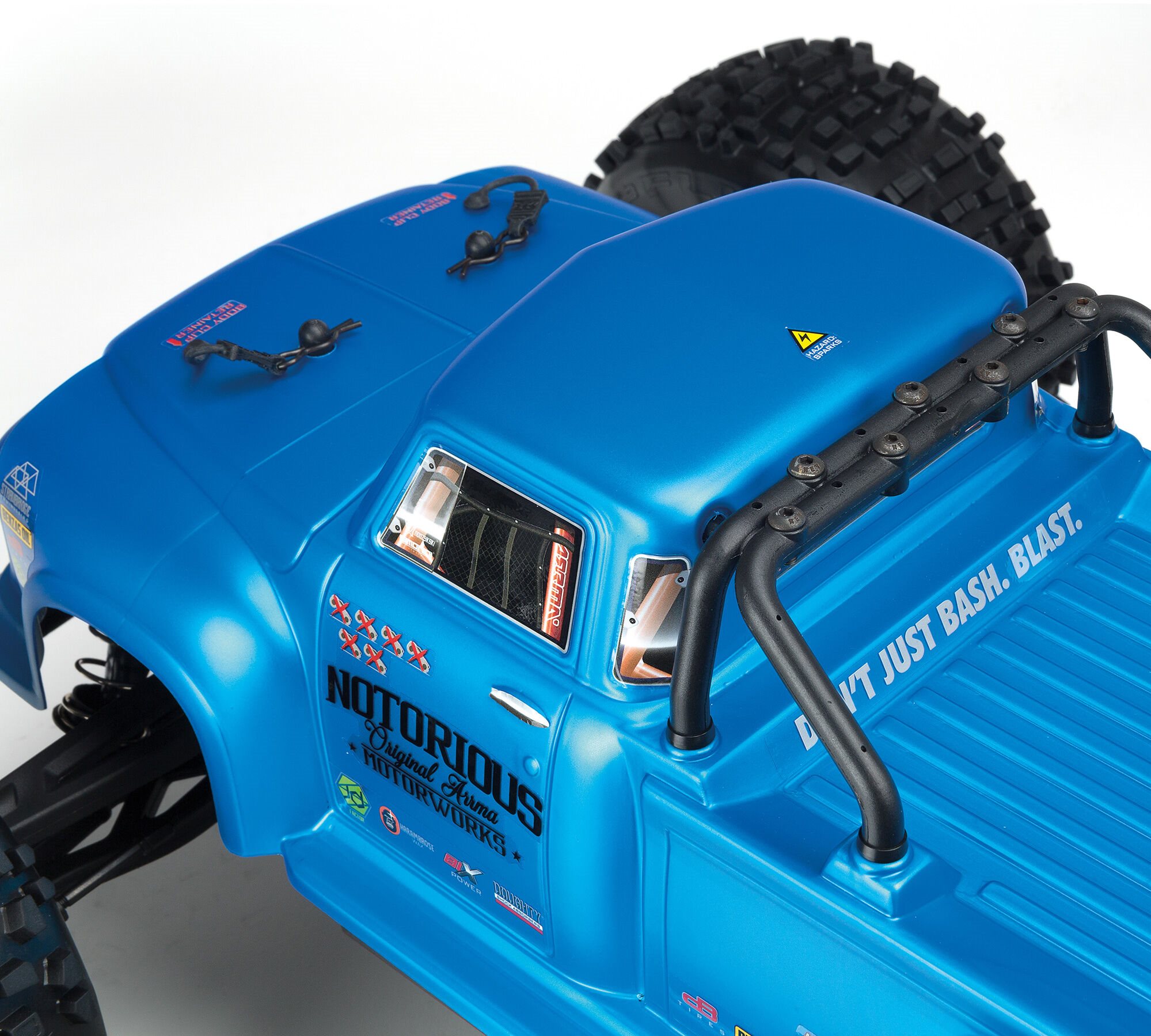

The NOTORIOUS™ 6S BLX is equipped to unleash wheelie-popping, back-flipping, outrageous action with distinctive design. Its timeless body offers more than structured excellent looks and a matte black or matte blue factory finish. The patent-pending ARRMA® Real Steel result adds wonderful body realism that only improves with abuse. The more scratched and scarred your Stunt Truck ends up being, the more authentic and amazing it will look.

From its durable front bumper through the short wheelbase chassis to the wheelie bar in back, the NOTORIOUS™ 6S BLX is engineered to make you a stunt superstar. Its stiff roll cage and underbody take all sort of punishment and come back for more. The NOTORIOUS™ can do all of it: long, high wheelies…tight, fast donuts…standing and aerial backflips…high leaps into the air…and more.

You need lots of power for that level of stunt action. That's why ARRMA® has equipped the brand-new NOTORIOUS™ Stunt Truck with a potent, 6S-capable brushless system consisting of a 2050Kv motor paired with the BLX185 ESC (including IC5™ ports suitable with basic EC5™ ports). Slamming is a "go" even through mud and snow, thanks to waterproof electronics. Just include your favorite 4S or 6S LiPo battery.

With adjustable 4mm oil-filled shocks on aluminum towers absorbing bumps, the NOTORIOUS™ 6S BLX 4WD Stunt Truck blasts over dirt, asphalt, and yard - over all surface, in all conditions. Its tough stunt truck wheels come equipped with multi-terrain dBoots® BACK-FLIP tires that supply all the traction you'll need to flip, grip, wheelie, and spin. A high downforce wing helps keep the car grounded. Everything about the NOTORIOUS™ adds to confident control and responsive handling at thrilling high speeds.

For the durability required to support extreme stunts, ARRMA® utilizes a strong anodized aluminum chassis as the foundation. A brand-new center body support and aluminum center brace plus composite chassis side pods include more strength. All-metal diff outdrives and gearbox internals plus durable steel driveshafts supply a trusted, durable drivetrain that holds up to extreme stunts and high-speed slamming. A brand-new "never ever loose" aluminum steering servo saver and "never ever pop" ball ends supply more precision, dependability and confidence.

ARRMA® keeps your maintenance downtime to the minimum with an efficient, driver-friendly style. A brand-new sliding install allows fast, problem-free motor access. The center diff is easy to reach and can now be removed by taking out just 5 bolts.

The ready-to-run NOTORIOUS™ 6S BLX 4WD Stunt Truck includes the brand-new Spektrum™ 2.4GHz STX2® transmitter and comes with its SRX200 receiver and ADS-15M metal-geared servo currently factory-installed. The only necessary products are a 4S or 6S LiPo battery, suitable battery charger, safe charging bag, and 4 x AA transmitter batteries. ARRMA® advises the Dynamite® Powerstage™ Stage 6 bundle (DYN1540), that includes a Passport™ Ultra P2 100W AC/DC Multi-Charger and two Reaction HD 5000mAh THREE hardcase LiPo batteries with EC5™ connectors.

What remains in package?
(1) ARRMA NOTORIOUS 6S BLX Stunt Truck 4WD RTR
(1) Spektrum 2.4GHz STX2 Radio Transmitter
(1) Item Manual

Video Intro

Under The Hood


EXTREME STUNTS

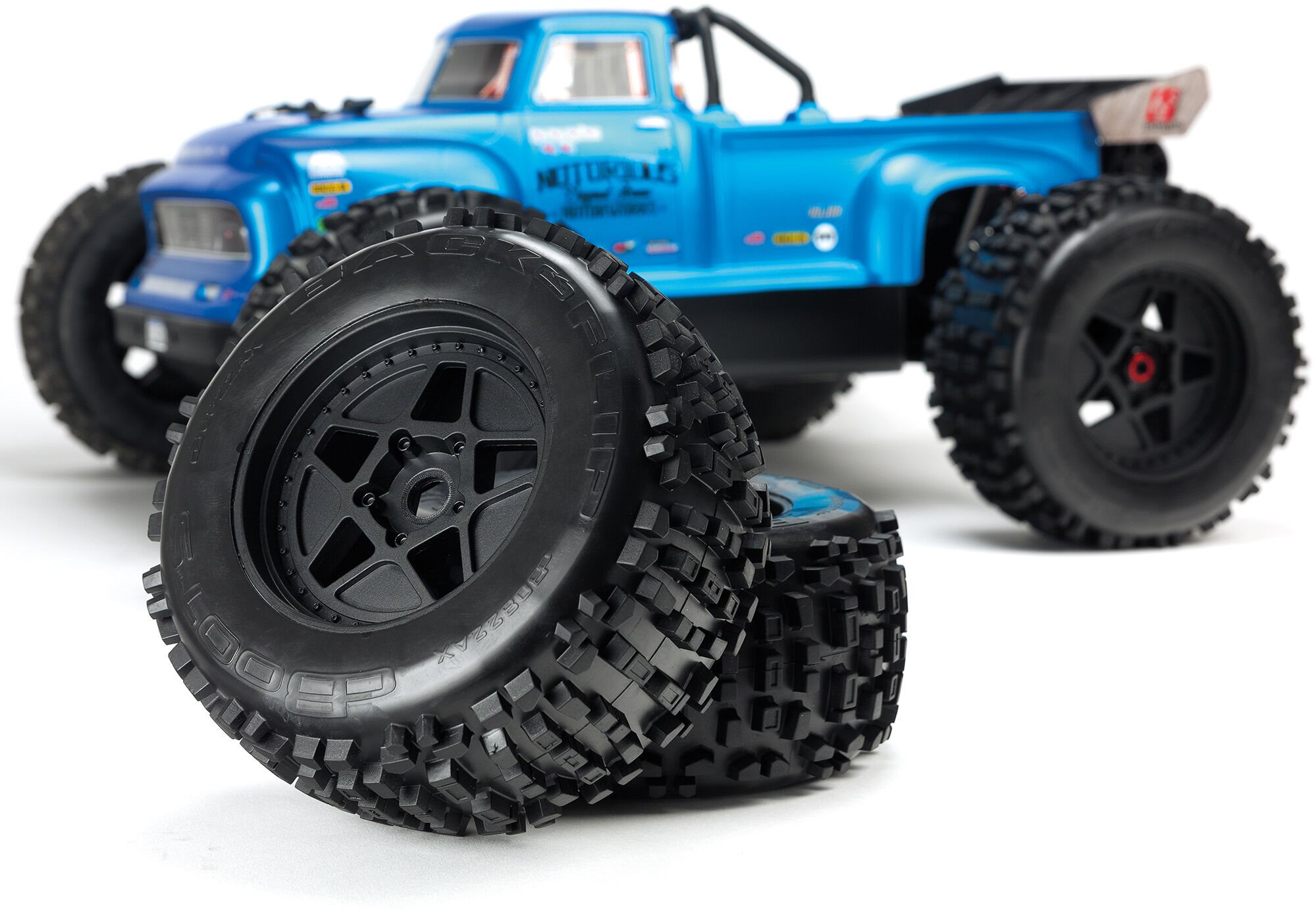

Tough stunt truck wheels and multi-terrain DBoots® Back-Flip tires for turning, spinning and doing wheelies in all conditions

TOWER TO TOWER BRACE
The aluminum center brace maximizes chassis durability

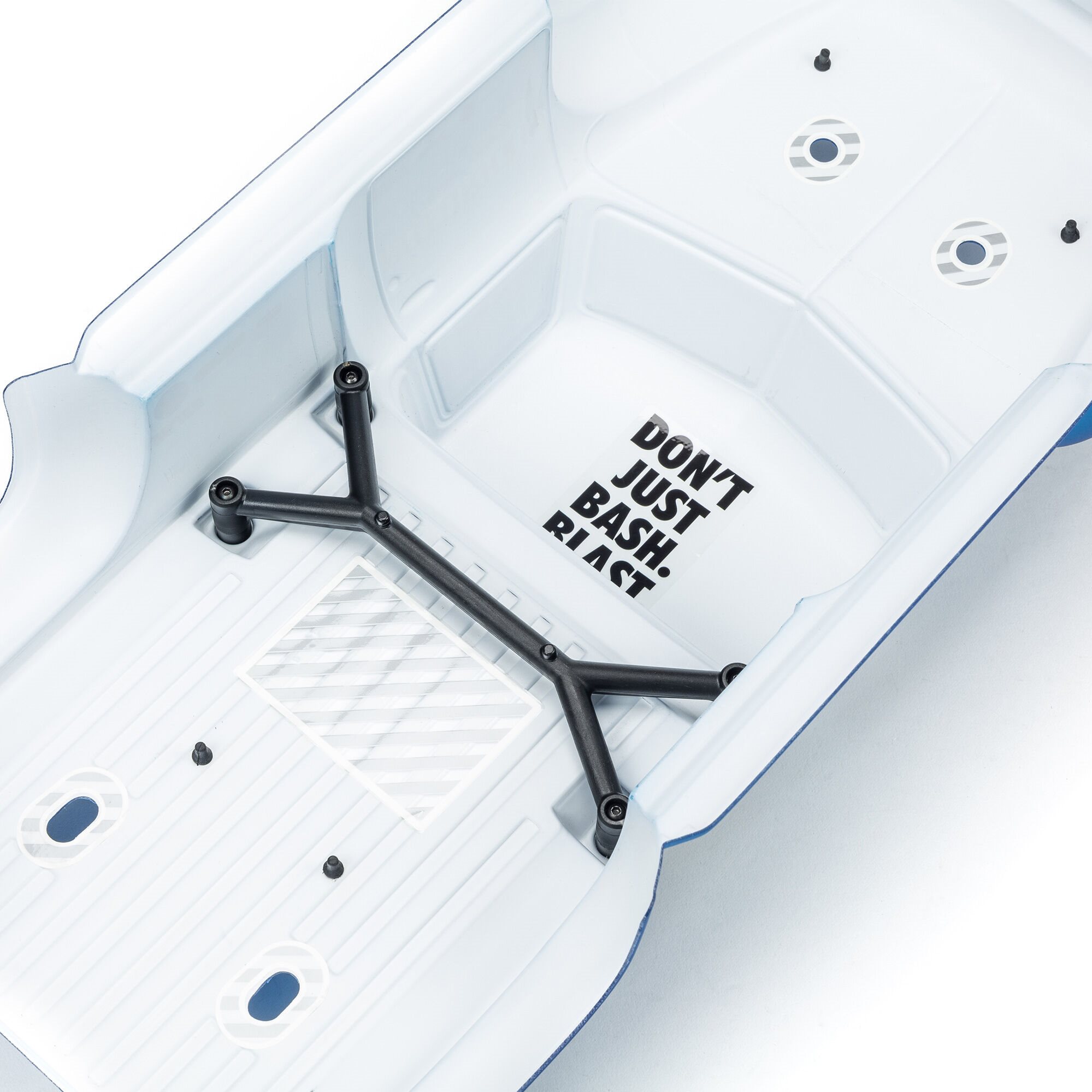

INNER BODY SUPPORT
Ergonomic and steady style for long slamming sessions

SLIP AND SLIDE
Sliding motor install for easy meshing and elimination, and easy-access 7-bolt center diff



TIGHT & REAL
New servo saver style that will never ever loosen up, for optimum servo protection.

CAPTIVATING
Captured steering ball ends that will never ever pop off



SIGNED, SEALED, & DELIVERED
New, updated centers and hub nut o-rings that will never ever come loose

ANODIZED ALUMINUM SHOCK CAPS
Black Anodized aluminum shock tower caps feature adjustable collars and shock cap protectors



BLX185 ESC

Waterproof and dustproof style *

150A, 6S LiPo ready (THREE, 4S and 6S LiPo suitable)

Fitted with reputable IC5™ ports (EC5™ suitable)

Integrated fan for minimized heat throughout extreme running

High quality 10awg wires

Low voltage cut off and thermal overload protection

User programmable punch and brake settings

Capable of 60+ miles per hour (113+ km/h) speeds **
* For information on waterproof standards, please refer to the product instruction manuals.
** Speed possible in optimum conditions on 6S LiPo with optional pinion gear.

BLX4074 2050Kv BRUSHLESS MOTOR

Beautifully engraved aluminum can

4-pole building and construction for smooth and consistent power

Gold bullet ports for reputable and efficient connection

Finned motor can for increased heat dissipation

Super strong 5mm shaft

Capable of 60+ miles per hour (113+ km/h) speeds *
* Speed possible in optimum conditions on 6S LiPo with optional pinion gear.



SPEKTRUM STX2 RADIO SYSTEM

Total 2.4GHz radio system consisting of a 2Ch waterproof receiver *

Integrated 3-position throttle limiter

Steering & throttle rate & trim adjustments with throttle and steering reversing

FHSS 2.4GHz protocol** offers extended range and interference complimentary performance
* For information on waterproof standards, please refer to the product instruction manuals.
** Not suitable with DSM, DSM2 or DSMR 2.4GHz protocol

ADS-15M SERVO

Strong metal gears used throughout

Waterproof and dustproof case *

25 tooth output spline

Torque: 14kg-cm @6V

Speed: 0.16sec/60degree @6V

Dimensions: 40x38x20mm (Industry requirement size)
* For information on waterproof standards, please refer to the product instruction manuals.


You will need...• (2) 2S or THREE 50C LiPo batteries with IC5/EC5 adapter or
• (1) 4S or 6S 50C LiPo battery and harness with IC5/EC5 ports
• Suitable LiPo balancing battery charger
• (4) AA batteries (for transmitter)
• LiPo charging bag or case (advised)

Specifications

Type: Stunt Truck
Scale: 1/8
Length: 21.26" (540mm)
Width: 18.15" (461mm)
Height: 9.06" (230mm)
Ground Clearance: 1.85" (47mm)
Wheelbase: 12.91" (328mm)
Weight: 11.37lbs (5.17kg)
Chassis: 0.12" (3mm) thick 6061-T6 aluminum
Suspension: Independent
Drivetrain: 4WD Shaft Drive
Tire Type: dBoots BACKFLIP, 6.77" (172mm) diameter
Motor or Engine: 4074 Brushless, 2050Kv, sliding install for easier maintenance
Speed Control: BLX185 150A w/cooling fan, 6.0V/3A constant output, 12A max, IC5 battery adapter
Radio: Spektrum STX2 2-channel with SRX200 Receiver
Servos: ADS-15M waterproof 15kg-cm metal-geared servo
Speed: 60 miles per hour+
Gear Pitch: 1.0 Module
Wheel Size: 3.82" (97mm) diameter, 1.6" (41mm) width, 17mm Hex
Kit/RTR: RTR
Shock Type: Oil-filled, coil-over springs, filled with 1000cst silicone shock oil
Body: Cut and painted molded polycarbonate with brand-new inner body support for better durability, Length: 18.5" (470mm)
Ball Bearings: Full ball bearing drivetrain
Experience Level: Intermediate
Recommended Environment: Outdoor
Is Assembly Required: No
