ARRMA ADS-7M V2 6.5kg Waterproof Servo Red (ARRMA 390136 | ARA390136)

Model: ARRMA 390136
Dist. #: ARA390136   SKU: ARA390136

Be the first to review this product. (Write Review)

Out of stock

Price:  $47.99

This item will earn you 48 reward point(s).
48 points = $0.96 off your next order. Learn More

Updated on Sep 27, 2025 06:42:44 AM

ADS-7M V2 6.5kg Waterproof Servo Red...

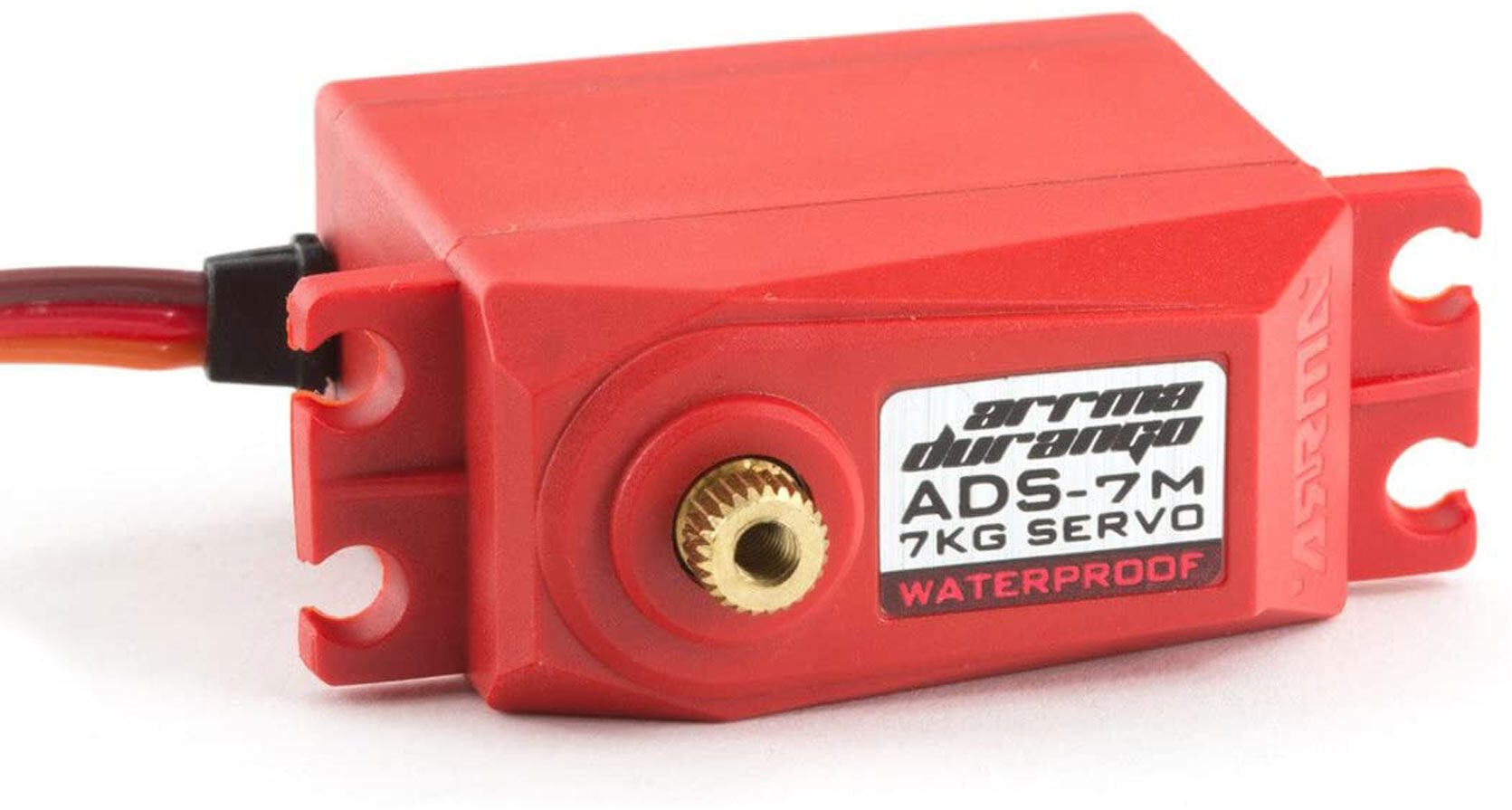

This is the Arrma ADS-7M Waterproof Metal Gear V2 Steering Servo.

FEATURES:
Dustproof and waterproof in regular use when mounted to a vehicle
Perfect for use as a steering or throttle servo in 1/10 scale vehicles
    used for backyard bashing
Double ball bearings
Metal gears

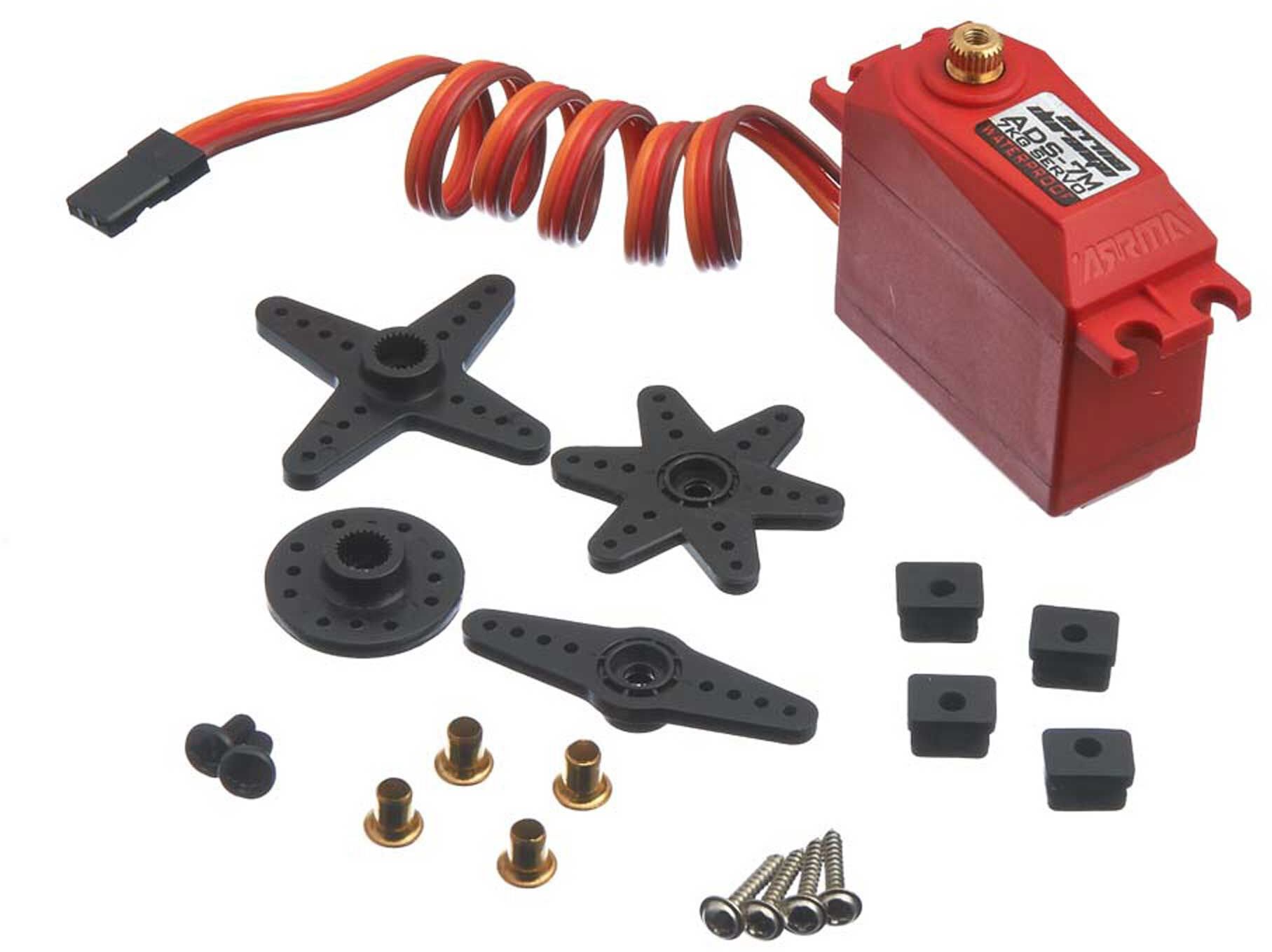

INCLUDES:
Arrma ADS-7M Servo with Futaba design Connector, 1.2" (32mm) size
    6-Point Horn, 1.5" (39mm) size 4-Point Horn, 1.5" (39mm)
    Double Arm Horn, 0.83" (21mm) Round Horn, four each Screws,
    Grommets and Eyelets

SPECS:
Torque: 97 oz/in (7 kg/cm) @ 7.2V
4.8V 6V
Speed: 0.14 sec 0.12 sec
Measurements: 1.6 x 1.5 x 0.79" (40 x 38 x 20mm)
Weight: 1.4oz (40g) without horn connected
Wire Length: 11.8" (300mm)
Signal: Analog
Spline: 25 tooth
