New Features

17% Larger footprint – longer and broader than the previous OUTCAST™ 4X4 4S platform for included stability

Hard new suspension arms that increase automobile width

Resilient steel 1.35 module primary diff gears and input gears in the front and rear transmissions

Strong CVD telescopic driveshafts front and rear

Higher shock towers, longer shocks and broader suspension arms for longer, more plush suspension travel

Aluminum huge bore shocks included as standard

CNC machined, red anodized 17mm wheel hubs

Steel slipper hub strengthening ring

Spektrum™ Firma™ 120A brushless ESC and 3668 2400Kv motor

Spektrum™ 2.4GHz SLT3™ transmitter and SR315 receiver

Spektrum™ S652 Steel Metal-Geared, water resistant digital servo with 232 oz-in of torque

Sway bars fitted front and rear for enhanced cornering dynamics

Wheelie bar with rubber tires




Proven 4X4 Platform Features

Rubber shielded bearings

Metal internal-geared diffs

Steel spur equipment

Strong composite chassis with prolonged height dirt protectors

Adjustable turnbuckles

Steering system with stone clearance

ARRMA® motor heatsink and cooling fan

Easy-access modular design — power, diff and electronics modules can be removed quickly and easily for maintenance

Battery retention system consisting of wire clips

2-Year restricted warranty (see website support for details)





A larger, harder OUTCAST™ 4X4 FOUR BLX
The initial ARRMA® CASTAWAY™ 4X4 FOUR BLX Stunt Truck provided the best happy medium in between the nimble 3S BLX automobiles and larger, more powerful six BLX devices. It provided inexpensive, full-blown stunt efficiency for brushed bashers seeking to upgrade and for any chauffeur desiring ARRMA® durability and speed.

This new variation marks the next evolution of the capable ARRMA® 4X4 4S platform — longer, broader, and harder than the previous chassis for even higher stability and control. It also includes a complete plan of Spektrum™ radio electronics and is the very first ARRMA® 4x4 to come geared up with a Spektrum™ 4S brushless power system.

The footprint of this OUTCAST™ 4X4 FOUR BLX Stunt Truck is 17% larger than the previous design, with greater shock towers, longer shocks, and broader suspension arms for longer, more plush suspension travel. The strength of the transmission has actually been boosted with the addition of steel gearbox input gears, steel primary diff gears and CVD Driveshafts. Upgrades are joined by tested features from before that deliver unstoppable efficiency in environments varying from off-road, dirt, and yard to car park, paved and asphalt surfaces. These consist of a strong composite chassis and retained hinge pin plates; protective skid plates in front and rear; guiding with more clearance for stones; a castellated slipper pad and sliding equipment mesh; and rubber-shielded bearings throughout. The OUTCAST™ 4X4 FOUR BLX also integrates the signature ARRMA® easy-access modular design to make regular maintenance fast and simple.

Durable, low-profile dBoots® Back-Flip tires with medium-compound foam inserts provide an aggressive tread pattern for exceptional traction on a wide variety of surfaces. The classic truck body has a tough, injection-molded rear wing and comes factory-finished in your choice of 2 interesting colors. Front and rear bumpers protect against impacts and a wheelie bar with rubber tires supplies stunt potential.

Completing the ready-to-run plan are a Spektrum™ SLT3™ 2.4GHz radio with SR315 receiver and a stronger, faster Spektrum™ S652 digital servo. Add your choice of battery, charger, and "AA" transmitter batteries and celebration with the best!









Under The Hood














LONGER CHASSIS
For this new variation of the OUTCAST™ 4x4 FOUR BLX Stunt Truck, ARRMA® engineers lengthened the automobile to 20.28 inches - 1.08 inches longer than previous design — for increased stability and control.

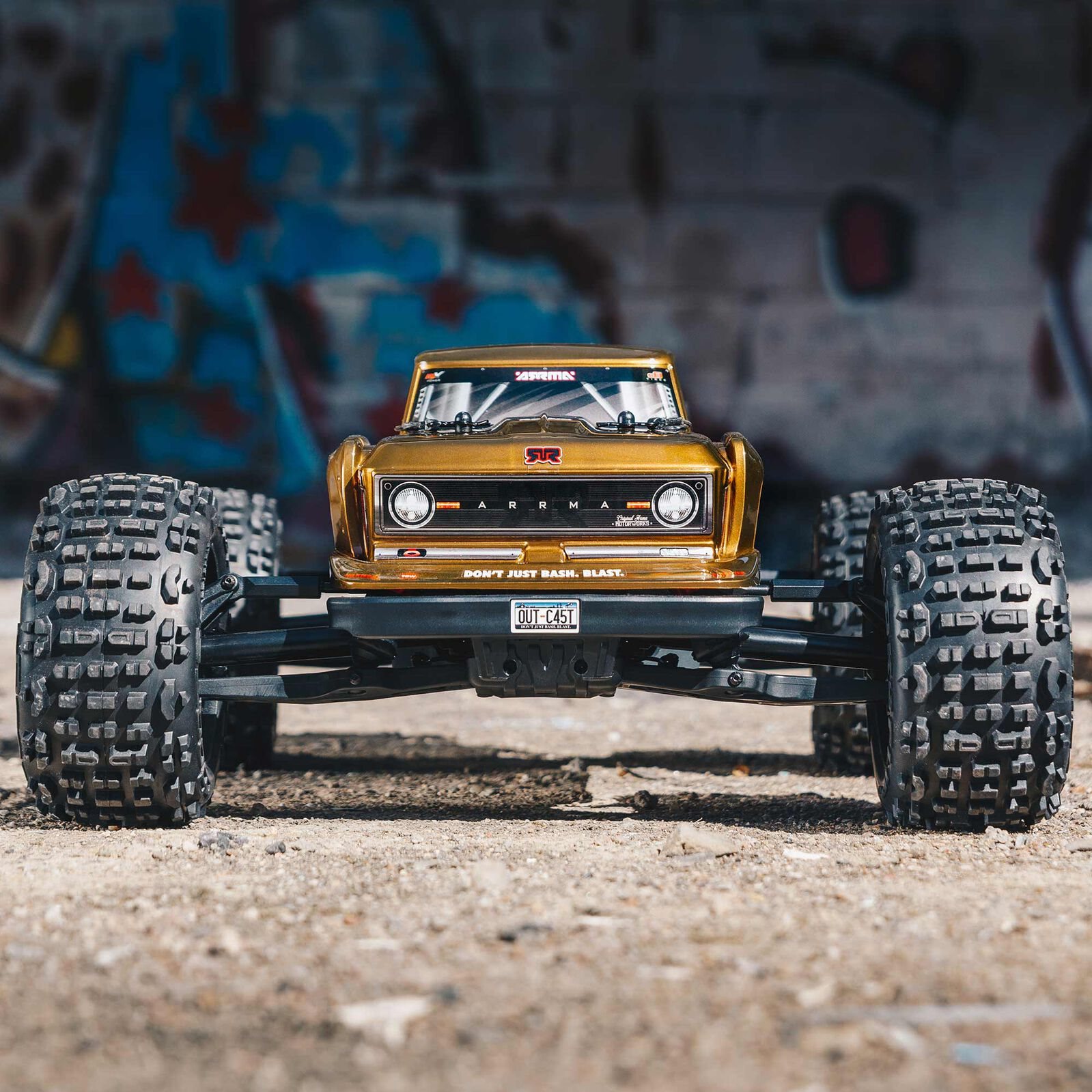

WIDER TRACK
To deal with more aggressive slamming, the front and rear track width has actually been increased with new, broader arms to 17.72 inches - 1.72 inches more than the previous OUTCAST™ 4X4 FOUR BLX Stunt Truck.








DESIGNED TOUGH
Functions that contribute to the 4X4 FOUR BLX platform's unstoppable efficiency consist of a stronger composite chassis and retained hinge pin plates; protective skid plates in front and rear; guiding with more clearance for stones; a castellated slipper pad and sliding equipment mesh; and rubber-shielded bearings throughout. Prolonged height dirt protectors limit the quantity of dirt and debris that can reach the chassis tub. Front and rear bumpers provide defense against impacts.

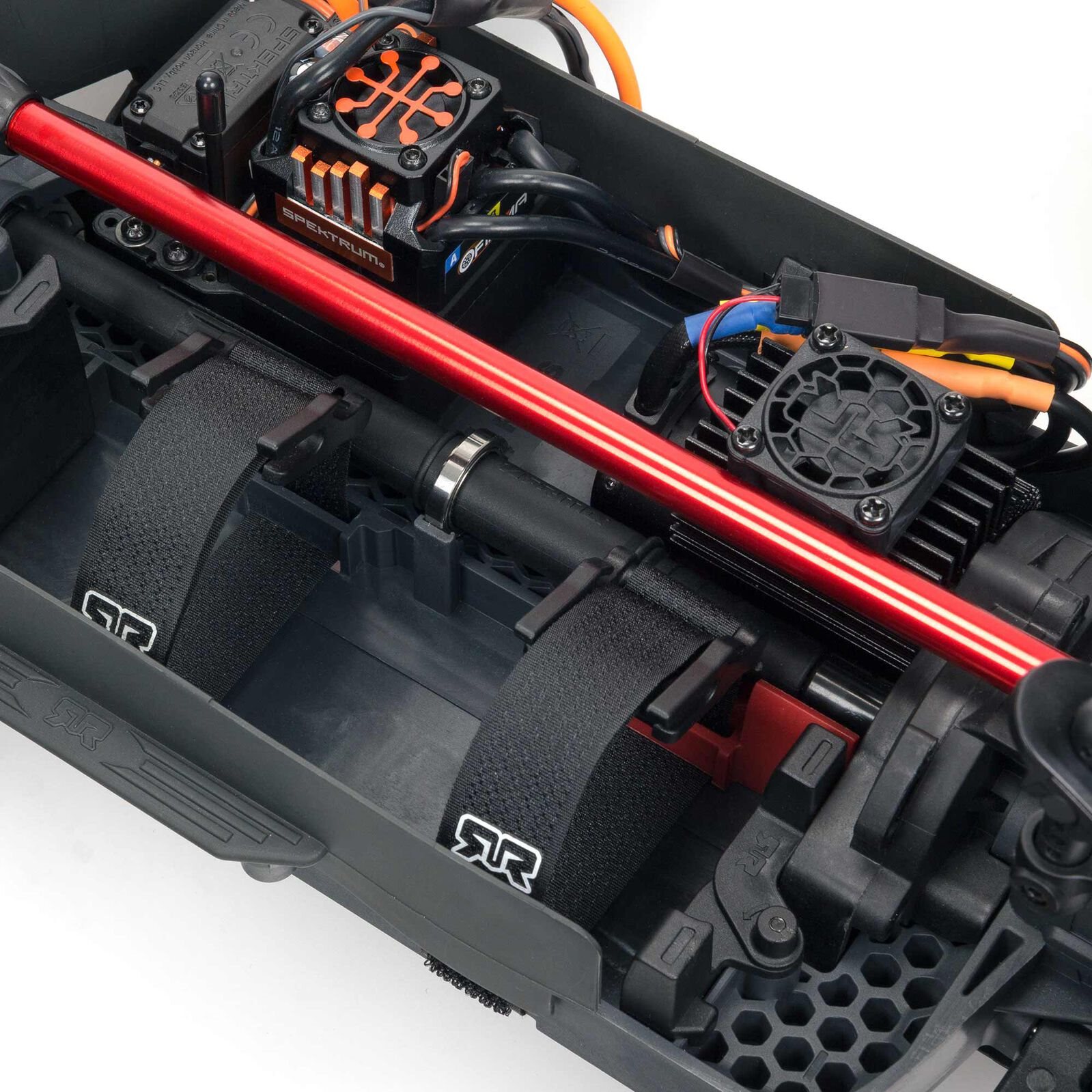

MODULAR DESIGN
The OUTCAST™ 4X4 FOUR BLX Stunt Truck RTR integrates the signature ARRMA® easy-access modular design. Separate, easily detachable chassis modules for the power system, electronics and differential parts make regular maintenance fast and simple.

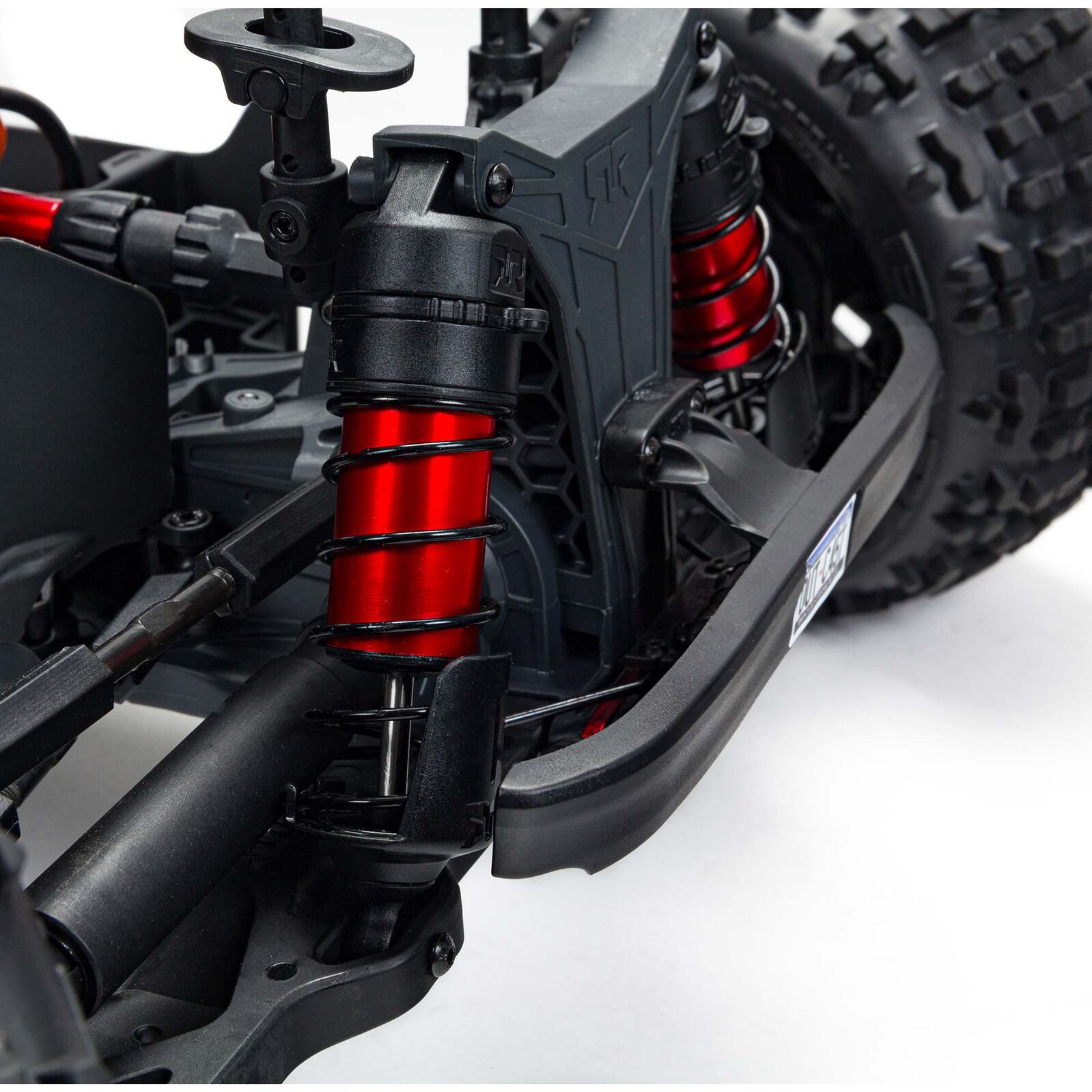

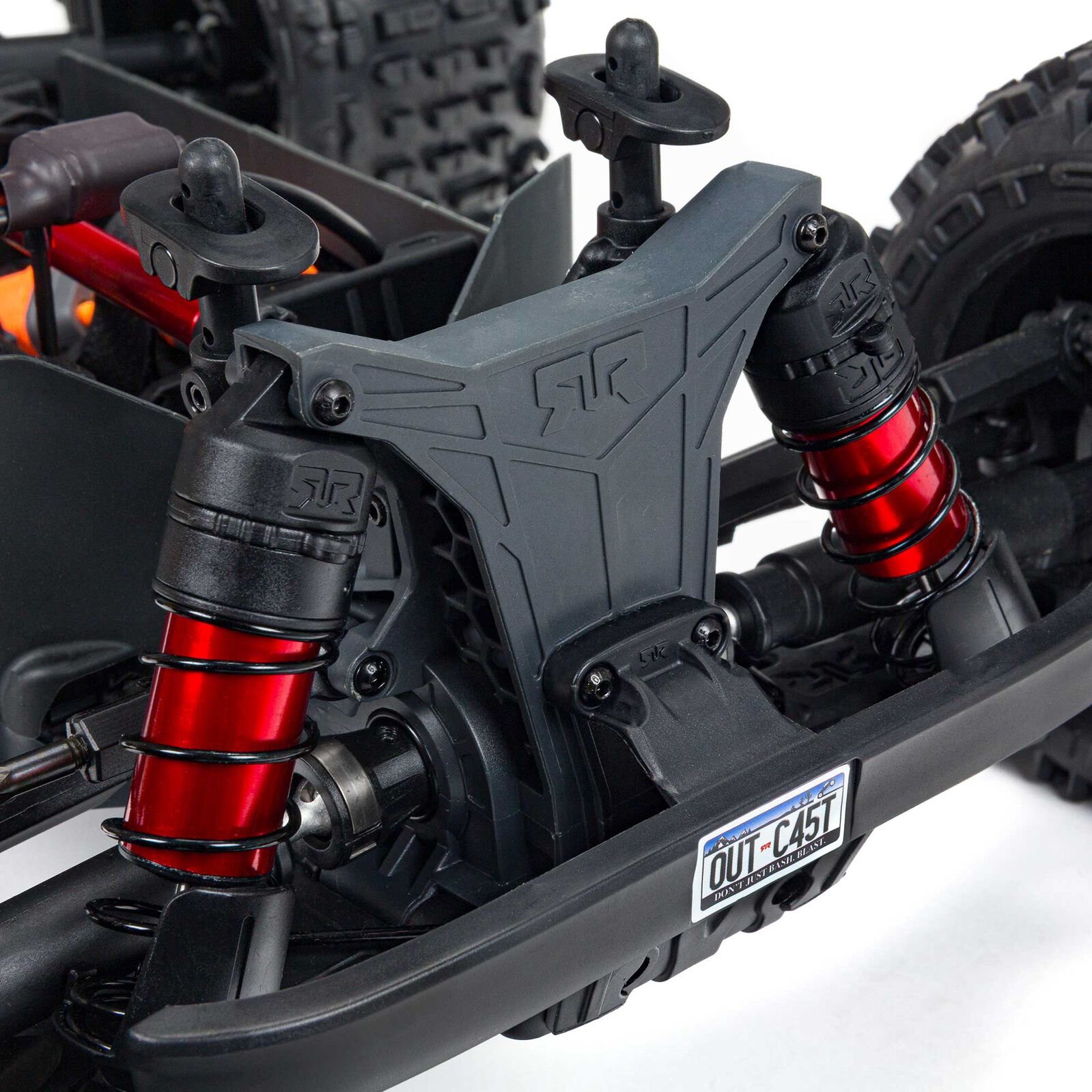

BIG BORE OIL-FILLED SHOCKS
Longer, aluminum-bodied, oil-filled huge bore shocks are included and mounted on greater shock towers. These plus the broader suspension arms give the automobile longer, more plush suspension travel.

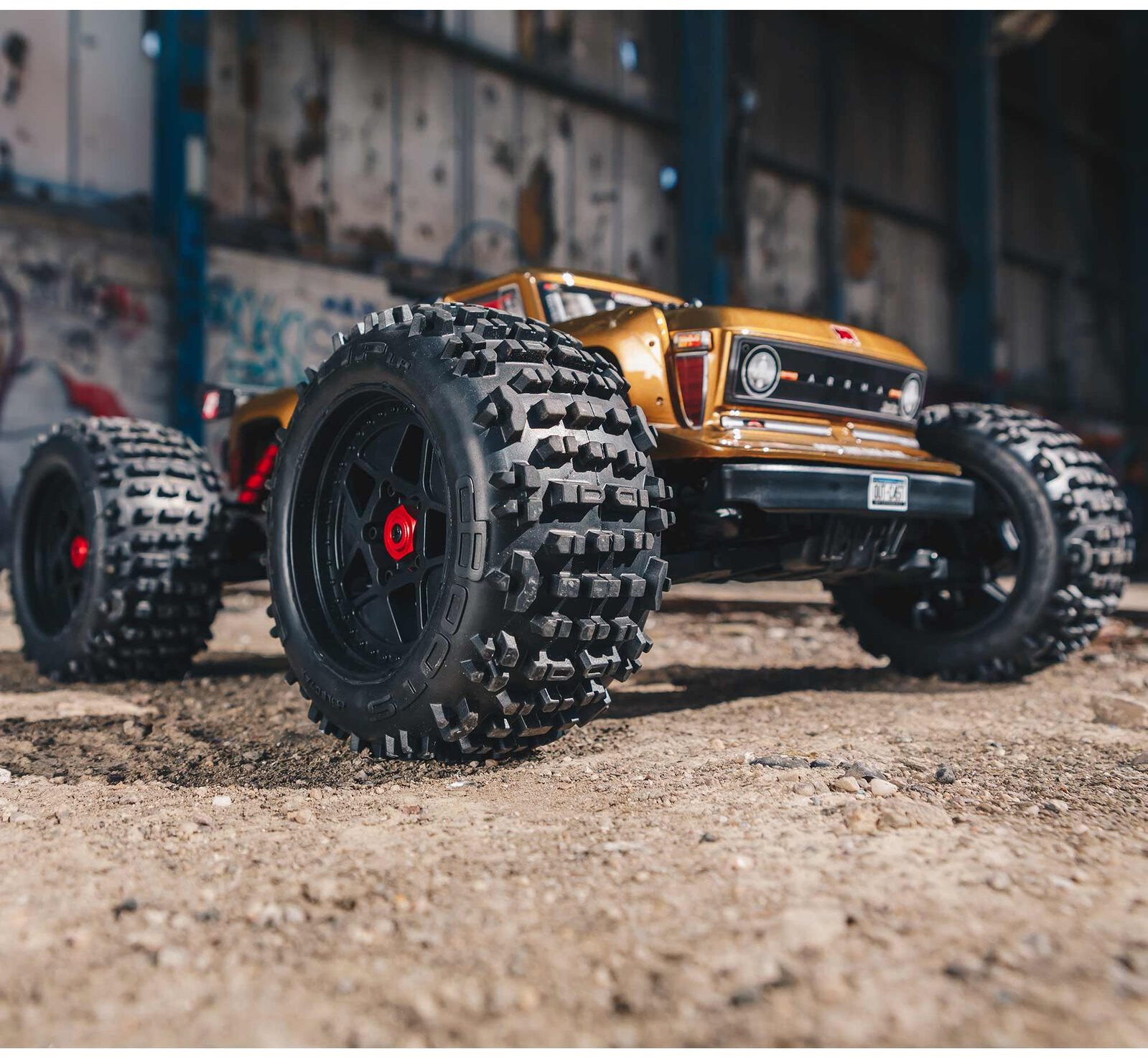

WHEELS & TIRES
The durable, low-profile dBoots® Back-Flip tires with medium-compound foam inserts provide long-lasting efficiency and feature an aggressive tread pattern for exceptional traction on a wide variety of surfaces. The tires are mounted on tough, 3.8" MT wheels with CNC machined, red anodized 17mm hubs.

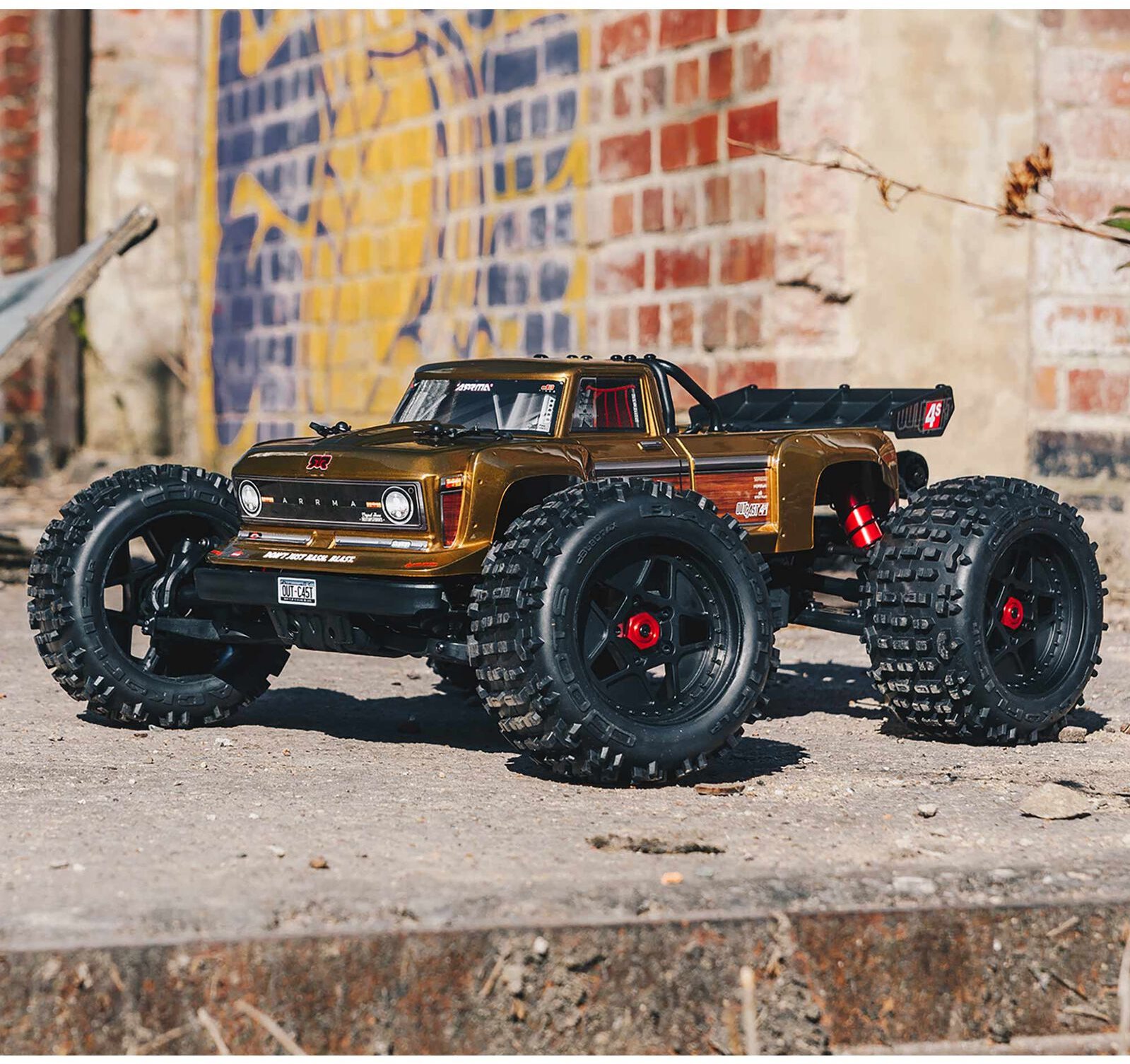

FINISHED TRUCK BODY

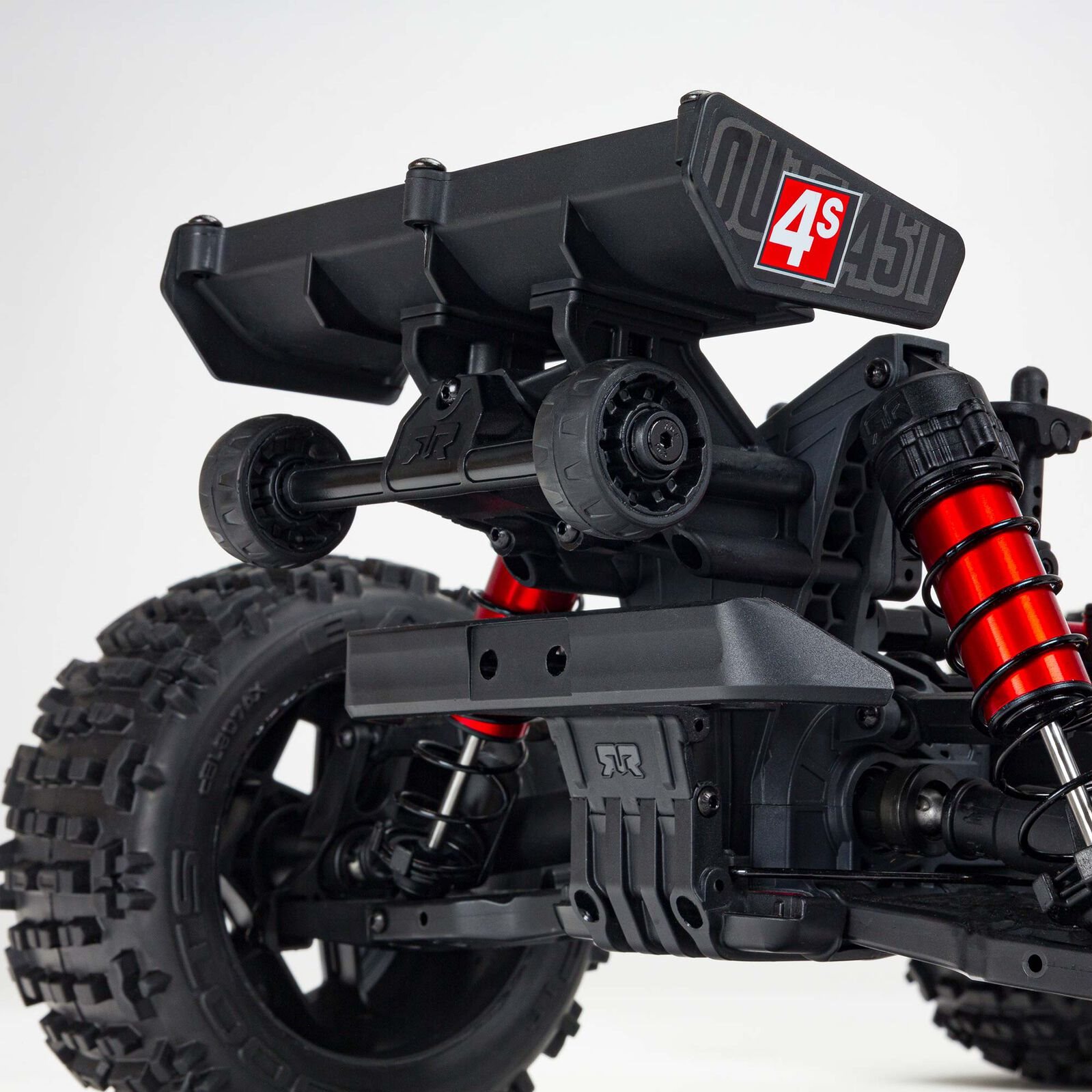

The smooth truck body features a tough, injection-molded rear wing and comes factory-finished in your choice of 2 interesting colors. Front and rear bumpers protect against impacts and a wheelie bar with rubber tires supplies stunt potential.




Spektrum™ SLT3™ 2.4GHz 3-Channel Transmitter

Quick action SLT™ procedure

Foam wheel

Improved grip and trigger feel

Improved wheel and trigger force

2-Way thumb switch 3rd channel

50% and 75% Throttle mode (for newbies)

Technique® SLT™ receiver suitable








Spektrum™ SR315 3-Channel Dual Protocol Receiver

Quick action rate and impressive range

SLT™ and DSMR® procedure suitable

No-tool binding and procedure changing

Compact and light-weight hard case

Spektrum Smart telemetry suitable (in DSMR® mode and using Spektrum™ Dashboard™ app)





Spektrum™ S652 Digital Servo

32% stronger and 5% faster than previous variation's ADS-15M servo for enhanced steering feel

Torque: 16.70 kg-cm (232 oz-in) @ 6.0V

Metal-Geared

Water resistant*








Spektrum™ Firma™ 120A Smart ESC

Forward/reverse/brake

Input voltage 11.1V-14.8V

Input port IC5® with 12AWG, 220mm wire

Output port 4mm female bullet with 12AWG, 150mm wire

Quick, powerful 32-bit ARM M4 processor

Rugged plastic case with mounting tabs

Aluminum heat sink for high effectiveness

Cooling fan

High-power BEC

Smart telemetry suitable

Water resistant*





Spektrum™ Firma™ 3668 2400Kv Brushless Motor

4 Pole / FOUR

ARRMA® heatsink and cooling fan

Safe D pinion












* For details on water resistant standards, please see item direction manuals.

Specifications

Approximate Assembly Time: No assembly needed

Ball Bearings: Complete set, rubber shielded

Battery: Sold Separately

Body: Painted, decalled and cut

Brakes: Essential with ESC

Battery Charger: Sold Separately

Chassis: Molded composite

Color Alternative: Brown

Completion Level: Ready-To-Run

Differential: 2 Gear Diffs

Drive Type: Forward/Brake/Reverse

Drivetrain: 4WD

Final Drive Ratio: 12.48

Front Track: 17.72 in (450 mm)

Gear Pitch: 0.8m

Internal Gear Ratio: 2.85

Max Battery Dimensions: 6.14x2.01x1.89 in (156x51x48 mm)

Motor Size: 3668-2400Kv

Motor Type: Brushless - Sensorless

Pinion: 13T

Power Type: Electric

Product Height: 8.86" (225 mm)

Product Length: 20.28" (515 mm)

Product Weight: 9.17lbs (4.17kg)

Product Width: 17.72" (450 mm)

Radio: Included

Rear Track: 17.72" (450mm)

Receiver: Included

Scale: 1/10

Servos: Included

Shock Type: Aluminum body, oil-filled, coil-over springs

Speed Control: Included

Spur Gear: 57T

Suspension: Independent

Technology : Smart

Lorry Type: Monster Truck

Waterproof: Yes

Wheel Hex Size: 17mm

Wheelbase: 12.32" (313 mm)
