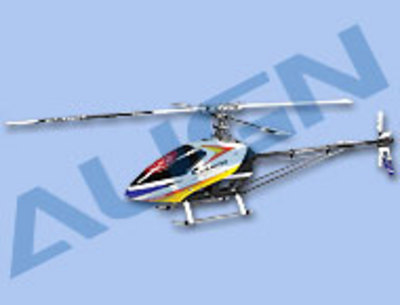

Align T-REX 700E F3C Super Combo

Features:
1.Making use of F3C competitors helicopter design concepts, encompassing superior straight tracking capability, outstanding fixed stability, resistant to wind gusts, and ultra exact control action.
2.All aluminum high accuracy head assembly, with recently tuned mixing ratios, to easily carry out maneuvers specified in F3C routines.
3.Accuracy CNC machined module 1 primary gear for minimal noise and high energy transfer effectiveness.
4.Freshly designed one piece stainless-steel primary gear hub to improve rotational stability.
5.Accuracy CNC machined aluminum pieces consisting of elevator servo install, rudder servo install, rudder control bell crank arm, vertical and horizontal fin mounts.
6.Brand brand-new carbon flybar support tube design to improve flybar rigidity. Adjustable stainless-steel flybar weights, integrated with F3C specific carbon flybar paddles, to attain superior stability qualities.
7.High quality large pre-painted horizontal and vertical carbon tail fins for improvements in flight tracking stability and outstanding visibility.
8.Brand brand-new carbon tail control pushrod assembly utilizing 5mm carbon rods and metal jointers to improve tail control accuracy.
9.Unique F3C landing gear to decrease the center of mass.
10.Freshly tuned F3C carbon primary blades for superior stability.
11.High quality pre-painted fiberglass canopy, with improved aerodynamic effectiveness and increased protection to lower wind resistance. The bigger size allows improved visibility during flight.
12.Total pitch variety of +/- 12 degrees for outstanding position repairing accuracy and flight performance.
13.Innovative moving battery tray rails inserted into the 3K side frames, enabling quick battery access in addition to battery security. In addition, the system enhances the total rigidity of side frames, as the very same time raising the center of mass.
14.Top mounted ESC platform to benefit from primary blades air flow for reliable cooling.

Users need to have a certain concept of security to run the R/C helicopters.
Be sure to check out and comply with associated security notes of instruction manual prior to flying.

Specs (T-REX 700E F3C):
Length: 1343mm
Height: 424mm
Width: 210mm
Main Blade Length: 700mm
Main Rotor Diameter: 1582mm
Tail Rotor Diameter: 281mm
Motor Drive Gear:12T
Main Drive Gear:112T
Autorotation Tail Own Gear: 104T
Tail Own Gear: 24T
Own Gear Ratio: 1:9.33:4.33
Weight(With Motor): 3230g
Flying Weight: Approx. 5200g

Accessories:
T-REX 700E F3C Packages Set X1
Aluminum Tail Boom X1
3K Carbon Fiber Tail Boom X1
F3C 700mm Carbon fiber blades X1
DS610 Digital servoX3 set
DS650 Digital servo X1
GP780 Head Lock Gyro X1
700MX Brushless Motor(470KV) X1
Castle ICE HV 120 Brushless ESC X1
6A External BEC w/ 5.1V Two-way Step-down voltage regulator X1
105mm 3K Carbon Fiber Tail Blades X1 Set

Radio transmitter and electronic devices required for assembly:
Transmitter(7-channel or more, helicopter system)
Receiver(7-channel or more)
SIX Li-Po 4500 ~ 5200mAh X2
Dial Pitch Gauge
