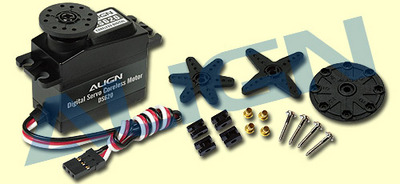

Align DS620 Digital Servo

This is the Align DS620 Digital Servo. This effective and exact servo, is an outstanding choice for 600/700 class helicopter rudder applications. The Align digital servo coreless motor is designed for quick speed, high efficiency, and low power consumption. 12 Bit signal resolution offers smooth movement, quick speed and high torque. High strength titanium alloy gears with exact and long lasting structure attributes. The aluminum alloy mid case construction offers instantaneous heat dissipation, that assists to keep the servo?s high efficiency. Additionally, this servo likewise supports digital and analog control signal.
Features:

Outstanding choice for 600/700 class helicopter rudder applications
Coreless motor
12 Bits signal resolution
Titanium alloy gears
Aluminum alloy mid case
Supports digital and analog control signal
Specifications:

Torque:

@ 4.8V: 111oz in (8.0kg cm)
@ 6.0V: 138oz in (10.0kg.cm)

Speed:

@ 4.8V: 0.09sec/60?
@ 6.0V: 0.07sec/60?

Voltage: DC 4.8-6V
Temperature level Range: -4?F ~ 140?F (-20?C ~ +60?C)
Dimension: 40.3x20.1x36mm
Weight: 52.2g
