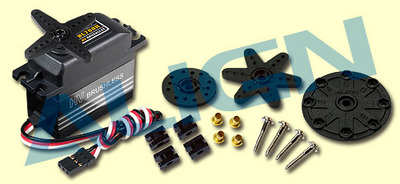

Align BL 700H High Voltage Brushless Servo (Align HSL70001 | AGNHSL70001)

Model: Align HSL70001
Dist. #: AGNHSL70001   SKU: AGNHSL70001

Be the first to review this product. (Write Review)

Out of stock

Price:  $165.99

This item will earn you 166 reward point(s).
166 points = $3.32 off your next order. Learn More

Updated on Jul 26, 2025 12:20:20 AM

BL 700H High Voltage Brushless Servo...
Ideal for T-Rex 550/600/700 cyclic and rudder use.

Instructions:
Uses brushless motor design for fast speed, high performance. And with the absence of brush wear, the longevity of servo is considerably increased.
Supports 7.4v high voltage to supply optimal speed and torque performance of the brushless servo.
Designed particularly for helicopters, with greatest requirements on the market: 0.065sec/60?ultra quickly speed and 20kg-cm monstrous torque, permitting helicopter to perform with faster and greater precision.
Ultra high 12 bits signal resolution for exceptional accuracy and smoothness.
Hardened high strength superalloy equipments that increase the lifetime.
Aluminum alloy mid case building and construction for rapid heat dissipation, preserving servo?s high efficiency.
Supports both analog and digital control signals.

Specifications:
Stall torque:15.0kg.cm(6.0V)
20.0kg.cm(7.4V)
Motion speed:0.085sec/60?(6.0V)
0.065sec/60?(7.4V)
Score voltage:DC 4.8-7.4V
Temperature level variety:-20?C至+60?C
Measurement:40.3 x 20.1 x 38.7mm
Weight:69g
1520μs basic band

Devices:
Servo rudder piece x 4
Set screw x 1
Rubber damper x 4
Brass grommet x 4
Tapping screw for servo x 4
