Model: Align HN7114
Dist. #: AGNHN7114
SKU: AGNHN7114
Be the first to review this product. (Write Review)
Out of stock
|
|
|
|
|
This item will earn you 163 reward point(s).
163 points = $3.26 off your next order. Learn More
|
Updated on Jul 16, 2025 09:32:49 PM
Suitable for T-REX 700E / 700N / 700F3C
Specifications:

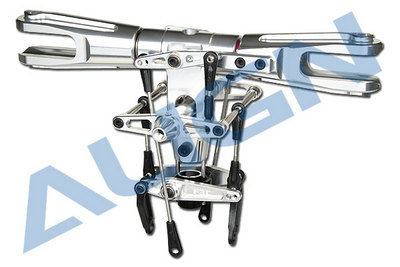

700 New Designed Main Rotor Head Assembly x 1
MF95ZZ Bearings(ψ5xψ9x2.4mm) x 2
700N Feathering shaft sleeve(ψ10.2xψ17x21mm) x 2
700 Damper rubber-紅(ψ9.9xψ17x7mm) x 2
700 Damper rubber(ψ9.9xψ17x7mm) x 2
Socket screw(M4x24mm) x 1
Socket screw(M4x8mm) x 2
Metal main rotor holder(72x54x18mm) x 2
6800ZZ Bearing(ψ10xψ19x5mm) x 4
700 Main Blade Grip Arm x 2
683ZZ Bearing(ψ3xψ7x3mm) x 4
Collar(ψ3xψ4.8x1.5mm) x 2
Washer(ψ3xψ4.8x0.3mm) x 4
Thrust bearing F10-18M x 2
700N Spindle bearing spacer(ψ10xψ16x1mm) x 4
700N Linkage ball C(M3x3.5) x 4
Socket screw(M3x6mm) x 4
Socket screw(M3x12mm) x 2
Socket screw(M5x32mm) x 2
700N Flybar control rod(ψ5xψ4.5x71mm) x 2
M4 Set screw(M4x4mm) x 2
700 Metal flybar control arm(中心54x17.5x9mm) x 2
Socket screw(M3?6mm) x 4
700N Feathering shaft(φ7xφ10x106.50mm) x 1
700N Collar screw(M6x16mm) x 2
700 Flybar seesaw holder(69x11.3x11mm) x 1
M3 Collar screw(M3x9.3mm) x 2
MR104ZZ Bearing(ψ4xψ10x4mm) x 2
Linkage ball A(M3x3) x 2
Linkage rod A(ψ1.96x14mm) x 2
700N Linkage rod B(ψ1.96x22mm) x 2
700 Linkage ball D(ψ2.5x84.5mm) x 2
700 Metal flybar control arm(59x7.5mm) x 2
Washer(ψ3xψ4.8x0.3mm) x 4
683ZZ Bearing(ψ3xψ7x3mm) x 4
Collar(ψ3xψ4.8x1.5mm) x 2
700N Radius Linkage ball x 2
FMR52ZZ Bearings(ψ2xψ5x2.3mm) x 4
Socket screw(M2x5mm) x 4
Socket screw(M3x12mm) x 2
700N Linkage rod B(M3x4) x 2
