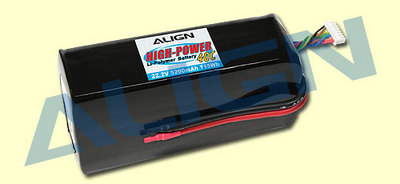

Align 6S2P Li-Poly Battery 40C (22.2V/5200mAh)

This is a Align 6S2P Li-Polymer Battery, and is planned for usage with the Align T-Rex 600E.
Functions:

This Li-poly battery is developed utilizing a series/balancing style. It includes high performance and high discharge, and a inspection device is utilized to match the packs.


Appropriate for TREX 600 EP series.
Suggest to release the battery within 80% of ranked discharge, keep 90% capacity when over 100 cycles, keep 85% capacity when over 150 cycles.(The cycle life and performance will reduce due to high existing, heat and over-discharge)
Specifications:

Output: 22.2V(6S2P)5200mAh 115wh

Dimension: 142x65x44mm

Weight: 800g

Max Continuous Discharge: 40C

Break Discharge: 50C

Regular operating temperature: Approx. 40-65?C (within 80% of ranked discharge)

Max. temperature: 80?C.



KEEP IN MIND: When utilizing high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in over heated batteries. Discharging capacity can't go beyond 80% of limit capacity of the pack after full crediting guarantee a great cycle efficiency. It is suggested to fully charge a brand name new battery prior to utilizing and only release the battery 50% for first 5 cycles. Always keep an eye on race time and/or set a low voltage caution on ESC (End voltage cannot be lower than 3.2v per cell). Do not utilize the battery that has too low a voltage.



Do not expose batteries to sunshine or store/charge batteries at the temperature above 35?C or in a closed vehicle. The heat environment might cause damage to the pack or make it burst. If the battery ends up being hot while fast charging, high existing discharging or racing, do not charge the battery until it has actually cooled entirely. Wait about 20 minutes, then examine prior to recharging.
