Model: Align H25129
Dist. #: AGNH25129
SKU: AGNH25129
Be the first to review this product. (Write Review)
Out of stock
|
|
|
|
|
This item will earn you 28 reward point(s).
28 points = $0.56 off your next order. Learn More
|
Updated on Jul 15, 2025 10:04:52 AM

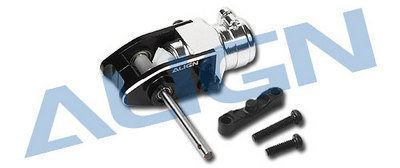

Use for H25129 Metal Tail Torque Tube Unit.
Specifications:
Linkage ball A(0#x2) ? 1(Φ3.5x5.3mm)
I-shaped Arm ? 1
Mount Link ? 1
Bearing F681XZZ ? 2(Φ1.5xΦ4xΦ5x2mm)
Collar ? 1(Φ1.5xΦ2.5x5mm)
Socket button head screw ? 1(0#x8mm)
Washer ? 1(Φ1.5xΦ3x0.5mm)
Tail pitch control link ? 2(4.9x1.4x2.4mm)
Collar A ? 2(Φ1.5xΦ2.3x2.4mm)
Collar B ? 2(Φ1.5xΦ2.3x1.4mm)
Socket button head screw ? 4(0#x4mm)
Bearing holder ? 1(8.5x7.3x5.6mm)
M2 Set screw ? 2(Φ2.5x2.4mm)
Washer ? 1(Φ3xΦ4.8x0.6mm)
Bearing MR63ZZ ? 2(Φ3xΦ6x2.5mm)
