Twister High Torque Metal Gear Digital Servo V2 for Miller
What's Included:

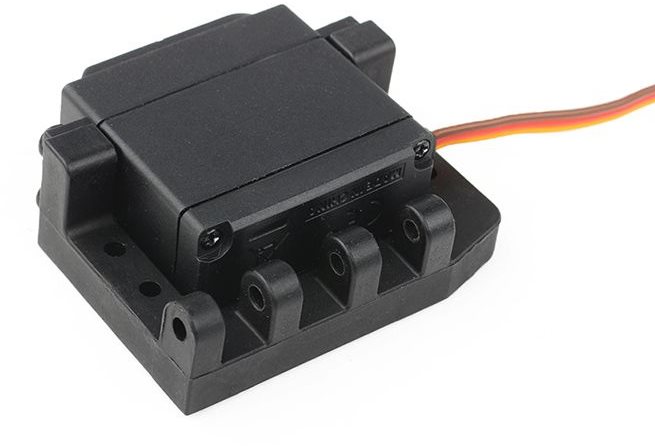

1x Twister High Torque Metal Gear Digital Servo V2 for Miller Motorsports Pro Rock Racer

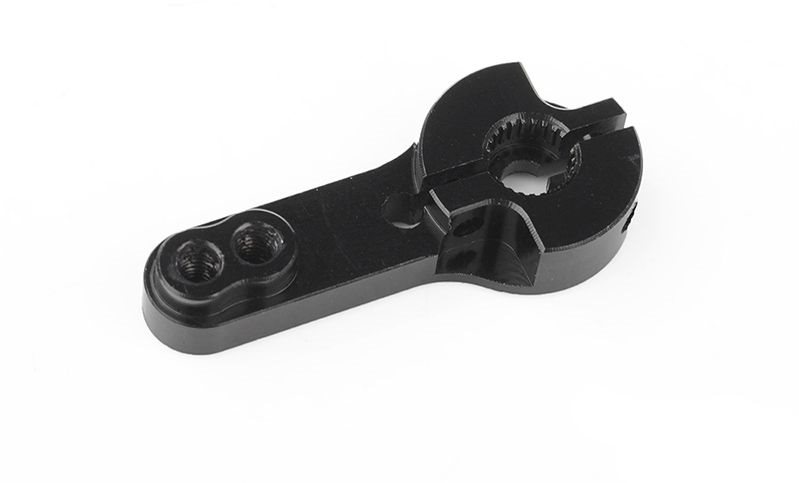

1x 25T Servo Arm
2x M2 X 8mm Socket Head Cap Screws (Z-S1234)
Notes:
Fits RC4WD Miller Motorsports 1/10 Pro Rock Racer RTR (Z-RTR0061)
Specifications:
Dimensions: 2.13*0.79*1.52in / 54.04*20.00*38.6mm
Weight: 2.20oz / 62.0.5g
Speed: ?0.23sec/60deg (@6.0V)
Stall Torque: 222.2oz-in / 16kg-cm (@6.0V)
Speed: ?0.20sec/60deg (@7.4V)
Stall Torque: 263.9oz-in / 19kg-cm (@7.4V)
Stall Current: ?3.0A (@6.0V), ?3.2A (@7.4V)
Idle Current: ?110mA (@6.0V), ?120mA (@7.4V)
Operating Voltage: 6.0-7.4V
Control Method: PWM
Pulse Width: 700~2300 sec
Center Case: Aluminum
25t Spline Servo Arm
Servo-motor Lock-rotor Protection
High Efficiency, Low Power Consumption
Metal Gears Ensure Long Life and Durability
Not Waterproof
