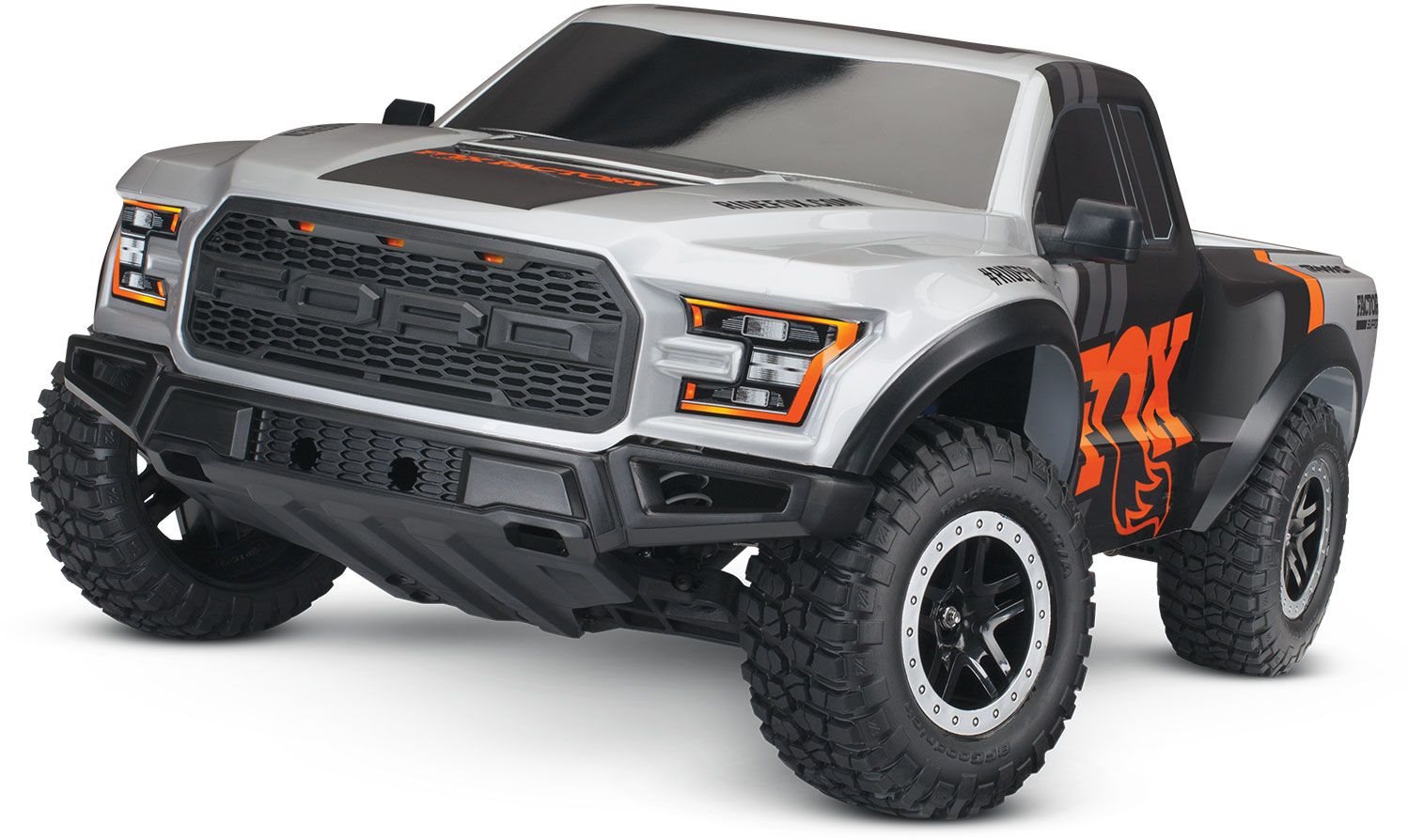

Traxxas Ford Raptor: 1/10 Scale 2WD Replica Truck w/USB-C Fox

Updated on Oct 27, 2023 09:25:40 PM



Officially Licensed Ford® F-150® Raptor® body and Graphics

Injection molded grille, side mirrors, and hood vent

Chassis nerf bars absorb impact and support the body

Tough front and rear replica bumpers




High-Performance Waterproof XL-5™ Electronic Speed Control

Innovative waterproof design

Three drive profiles

Sport Mode - forward / brake / reverse

Race Mode - forward / brake

Training Mode™ - 50% forward / brake / 50% reverse (patented)




Traxxas EZ-Set® one-button setup

LiPo and NiMH compatible with two-stage low-voltage detection




Titan® 550 Motor

Powerful Titan 12T 550 modified motor with internal cooling fan

Oversized armature for big torque and increased power handling

Virtually maintenance-free operation

Molded wire retainer keeps motor wires secure








TQ™ 2.4 GHz 2-Channel Radio System

Ergonomic transmitter with internal antenna

Traxxas 6519 3-channel micro receiver with fail-safe security

Patented O-ring sealed watertight receiver box keeps the micro receiver dry




Includes Battery and USB-C Charger

4-amp USB-C fast charger

3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD®




Tough Fiber-Composite Monocoque Chassis

Long 13.2? wheelbase for increased stability

Over 3.5? of ground clearance

All electronics securely fastened to chassis




Easy Access Battery Compartment

Adjustable battery hold down

Accepts 6- and 7-cell flat packs and 7-cell hump packs

Accepts many 2s LiPo battery configurations




Transmission and Driveline

Brushless-ready Magnum 272™ metal-gear transmission

Torque-Control™ slipper clutch system

Planetary gear differential with steel ring gear

Sealed gearbox protects the transmission with beefed up motor guard

External gear cover with easy clutch access

Heavy-duty telescoping U-joint driveshafts and yokes








Steering

Digital High-torque waterproof Traxxas 2075 steering servo

High-performance bellcrank system minimizes bump steer




Suspension

Adjustable steel turnbuckles

Captured rod ends won't pop off




Springs and Shocks

Fully adjustable oil-filled Ultra Shocks™ with X-ring technology

Race-tuned progressive rate white powder-coated springs




Wheels and Tires

Pre-glued scale all-terrain tires with performance foam inserts

2? outer diameter, 3? inner diameter dual-profile black split-spoke wheels




Rubber-Sealed Ball Bearings

Precision Hex Hardware

Backed by Unparalleled Traxxas Support and Parts Availability
