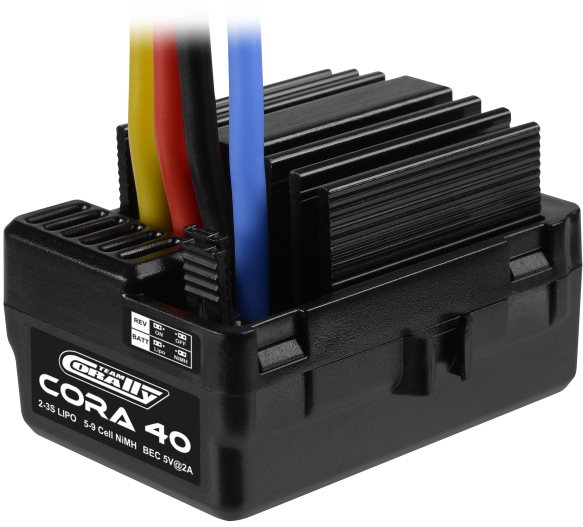

Team Corally Cora 40, Brushed Esc, 2-3S, Fits Sp Versions

Max. Cont. Current (A): Forward: 40 A / Reverse: 20 A

Motor Limitation: TWO = 12T THREE = 18T

Input Voltage (V) min. - max.: 5-12.6 V

Max. Current (A): Forward: 180 A / Reverse: 90 A

Resistance: Forward: 0.002 Ohn / Reverse: 0.004 Ohm

Length (mm): 46.5 mm

Nr of Li-xx Cells: 2-3S

Width (mm): 34 mm

Nr of Ni-xx Cells: 5-9 Cell NiMH

Motor Type: Brushed

Height (mm): 28.5 mm

BEC Voltage (V): 6 V

BEC Current (A): 2 A

Weight incl. wire (g): 65 g

Programmable: Jumper

Throttle Mode: Forward / Reverse programmable Reverse lockout

Battery Mode: NiMH / LiPo

Cut off voltage: NiMH mode = 4.5 V

Lipo Cut off: TWO = 6.5 V THREE = 9.75 V

Thermal Security Temperature: 105 Degrees C

Water Security: Yes

Connector (Motor): 4 mm

Connector (Battery): Tamiya style

Motor wire size: 16 AWG

Battery wire size: 16 AWG

Car Type Usage: 1/10th scale

Product Produced: 12/13/2019
