Model: Team Corally COR52001
Dist. #: COR52001
SKU: COR52001
Be the first to review this product. (Write Review)
Shipping: In Stock For Shipping
Store Pickup:
South Jordan, UT
Ship To Store - Pick up in 2 to 3 days..
|
|
|
|
|
This item will earn you 80 reward point(s).
80 points = $1.60 off your next order. Learn More
|
Updated on Jul 10, 2026 11:37:20 PM

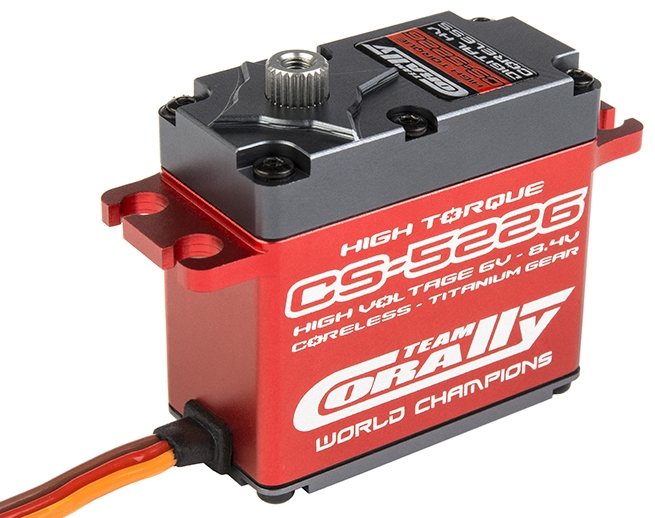

CS-5226 High Voltage/High Torque Coreless Aluminum Case Digital Servo .08/313 oz. @ 7.4v
Features:
- Full CNC machined alloy case
- High Voltage 6.0 - 8.4V
- Titanium gears
- Ball Raced
- Coreless motor
- Ultra high speed and torque
- Water resistant
Specifications:
Servo Technology: Digital Ultra High Voltage
Input Voltage (V): 6.0V - 8.4V
Servo Type / Size: Standard
Length (mm): 40.5 mm
Gear Material: Titanium Gears
Width (mm): 20.5 mm
Ball Beared: Ball Beared
Motor Type: Coreless Motor
Height (mm): 36.0 mm
Servo Case: CNC alloy
Servo Power - Torque Kg/cm: > 25 Kg/cm
Servo Speed 60/sec: 0.05 - 0.10 Sec/60
Protection: Waterproof
Weight (g): 72 g
Speed 60/Sec @ 6.0V: 0.09 Sec/60
Speed 60/Sec @ 7.4V: 0.08 Sec/60
Speed 60/Sec @ 8.4V: 0.07 Sec/60
Torque kg/cm @ 6.0V: 18.3 Kg/cm
Torque kg/cm @ 7.4V: 22.6 Kg/cm
Torque kg/cm @ 8.4V: 25.6 Kg/cm
Connector type: JR
Spline size: 25T Spline
Thermal Protection Temperature: Waterproof
Water Protection: Waterproof
