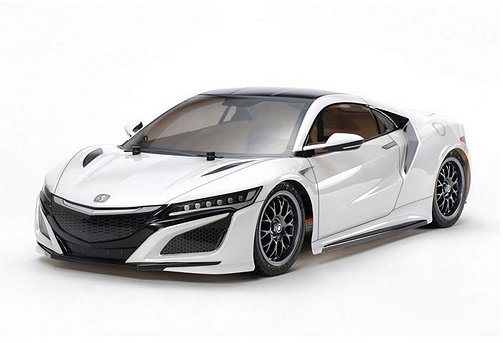

Tamiya NSX TT-02 4WD Shaft Drive On Road

**Extra Technical Details Will Be Included When It Appears.**

This is the 1/10 scale, Tamiya electric powered, radio managed,
NSX (NC1) On-Road Race Automobile Kit.

FEATURES:
Chassis: TT-02 ABS resin bath tub type decreases contact with the road
    upright assembly can be changed to give chassis an additional 4mm of
    travel for Rally racing
Own: Four wheel, shaft owned, with dogbones
Motor: Tamiya Torque Tuned 540 brushed with aluminum heat sink
Electronic Speed Control: Tamiya TBLE02S brushless suitable
Differential: Gear type
Wheels: Nylon building, black in color 12mm hex, 1.02" (26mm)
    broad 2.00" (51mm) size
Tires: Slick rubber with foam inserts
Suspension: Fully independent double wishbone
Shocks: Plastic body, friction, not oil filled
Body: Clear polycarbonate with individually molded side mirrors and
    front light case (light cases are not suitable with LEDs)
Camber: Non-adjustable, camber describes the angle of the tops of the
    tires from vertical when seen from front or behind car
Caster: Adjustable, caster/toe-in describes the angle of the front
    suspension when seen from the side of the vehicle in relation to the
    chassis
Steering: Bellcrank type
Bumper: Front, urethane

CONSISTS OF:
Tamiya NSX (NC1) with 540 Brushed Motor, Tires,
    Wheels, Clear Body, Foam Inserts, ESC, Decals and Instructions

REQUIRES:
Radio: 2-channel with high speed steering servo
Battery: 7.2V NiMH
Battery Battery charger: To match selected battery
Structure and track equipment

SPECIFICATIONS:
Car-
Wheelbase: 10.1" (257mm)
Length: 18.6" (472mm)
    Body-
Length:
Width:
Height:

REMARKS:
To upgrade to ball bearings order;
    Qty. Size Area Qty Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
2 8x12mm Differential 1 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535
